ALINX AX7Z100: Xilinx Zynq-7000 XC7Z100 FPGA Development Board

Regular price
£1,189.99
Sale price
£1,189.99
Regular price
£1,239.99
Sold out
Unit price
per
Tax included only for the UK. Shipping calculated at checkout.

Description

Comparison

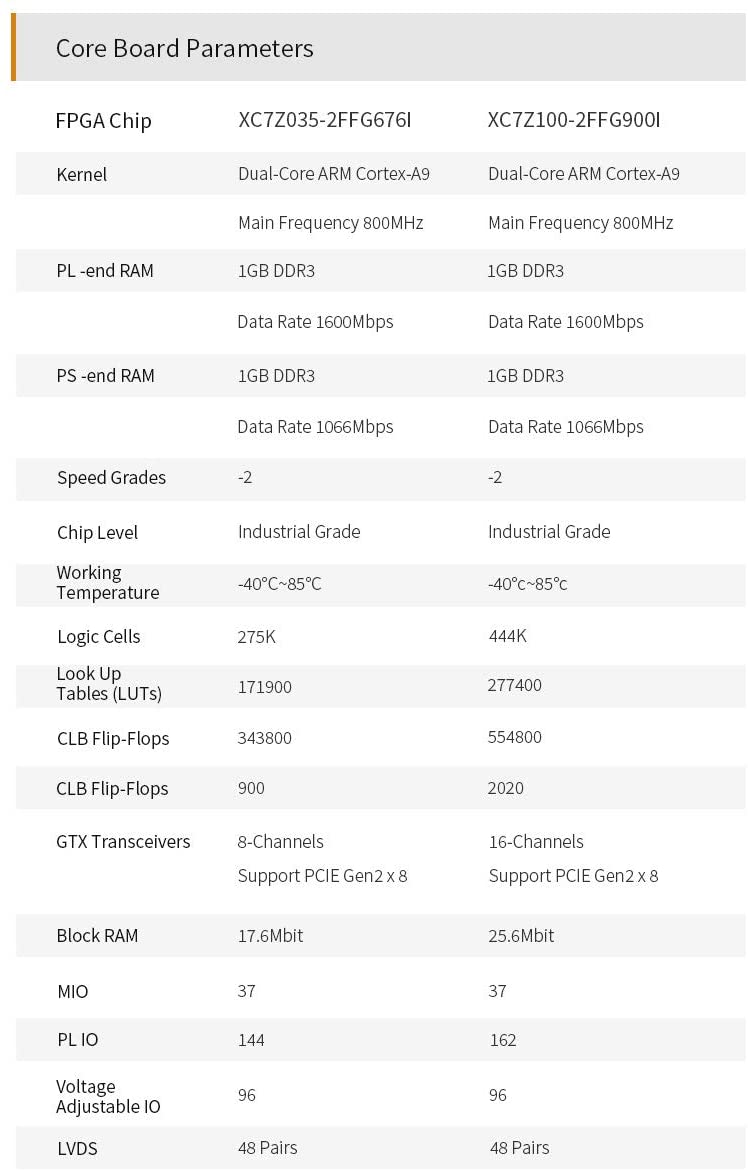

FPGA Board AX7Z035 AX7Z100
Core Board SOM AC7Z035 AC7Z100
FPGA Chip XC7Z035-2FFG676I XC7Z100-2FFG900I
Processor Core ARM Cortex-A9 x2 ARM Cortex-A9 x2
Main Frequency 800MHz Main Frequency 800MHz
PL RAM 1GB DDR3 1GB DDR3
1600Mbps 1600Mbps
PS RAM 1GB DDR3 1GB DDR3
1066Mbps 1066Mbps
Speed Grade -2 -2
Chip Level Industrial Grade Industrial Grade
Chip Working Temperature -40℃~85℃ -40℃~85℃
Logic Cells 275K 444K
CLB Flip-Flops 343800 554800
Look Up Tables (LUTs) 171900 277400
BLOCK RAM 17.6Mbit 25.6Mbit
Multiplier 900 2020
GTX Transceiver 8-Channels support PCIE Gen2 x8 16-Channels support PCIE Gen2 x8
PCIE 2.0 x4 lane x8 lane
MIO 37 37
PL I/O 144 162
Voltage Adjustable I/O 96 96
LVDS 48 Pairs 48 Pairs

Features

DDR3 32bit Bus, Data Rate 1066Mbps
QSPI FLASH 512Mbit QSPI Flash, for user data storage
EMMC FLASH 8GB, for large scale storage
GTX Transceiver Each up to 6.25Gb/s, for SFP and PCIE data communication
SFP 4-way High-Speed SFP interface, the receiving and transmitting speed of each channel is up to 10.3125Gb/s
PCIE 2.0 single channel rate up to 5G baud
Gigabit Ethernet 2x 10/100/1000M Ethernet with RJ45 for data exchange
JTAG 10-pin (0.1-inch/2.54mm pitch) JTAG port for Programs Debug and Download
HDMI HDMI Video Input and Output Interface, up to 1080p@60Hz, support 3D Output and Data input in different formats
USB2.0 x4, for external USB Peripherals
USB UART for serial communication with PC or devices
Crystal Oscillator 33.333MHz for the PS, 200MHz for DDR Reference Clock for the PL Logic, 125MHz reference clock for the GTX Transceiver
SD Card Slot 1x micro-SD Card Slot, support SD mode and SPI mode
LEDs 9x, 2x Core Board, 7x Carrier Board
KEYs 5x, 1 Reset, 4 PL User
MIPI to connect ALINX MIPI OV5640 camera module AN5641
EEPROM EEPROM 24LC04 with IIC on-board
Temperature Sensor Sensor Chip LM75, used for Ambient

Power Supply

Voltage Input: +12 V DC, Max Current 2A

What's Included
FPGA Board 1 DC Fan (fixed) 1
Mini-USB Cable 1 USB Downloader Cable 1 Set
12V Power Adapter 1 PCIE Fence 1
TF Card 1 Card Reader 1

Links

Official Product Specification

AX7Z100 User Manual (PDF)
