ALINX Z19: Xilinx Zynq UltraScale+ MPSoC XCZU19EG FPGA Development Board

Regular price
£11,096.99
Sale price
£11,096.99
Regular price
Sold out
Unit price
per

Lead time: 2 Weeks

Tax included only for the UK. Shipping calculated at checkout.

Description

Zynq® UltraScale+™ MPSoC devices provide 64-bit processor scalability while combining real-time control with soft and hard engines for graphics, video, waveform, and packet processing.
Zynq UltraScale+ EG
Broad Device Range for Next-Generation Applications:
  • Quad Arm Cortex-A53
  • Dual Arm Cortex-R5F
  • 16nm FinFET+ Programmable Logic
  • Arm Mali™-400MP2
Source: https://www.xilinx.com/products/silicon-devices/soc/zynq-ultrascale-mpsoc.html

Z19 is ALINX's Flagship offering to date, High Performance Development Board with XCZU19EG FPGA, 2x HPC FMC, 4x QSFP28, 4x SATA, PCIE x8, CAN, 485, and NVME, built for Video and Packet Processing. Ideal for 5G Wireless, Next-generation ADAS, Multimedia, AI, Machine Learning and Embedded Vision.

Ideal for:

  • 5G Wireless
  • Next-generation ADAS
  • Industrial Internet-of-Things
  • Multimedia and Embedded Vision

Z19 is a single board design. For a SOM + Carrier Board combination, see our ACU19EG and Z19-P. For XCZU15EG board, have a look of our AXU15EG. For our Best selling all-rounder 7EV card, check for the Z7-P.

The SOM model is ACU19EG. For a mid-range EG board, look for our AXU9EG; For an entry-level EG board, check out our AXU3EG.

FPGA Specification
FPGA XCZU19EG-2FFVC1760I
Processors 4x ARM Cortex-A53, 1.333GHz
2x ARM Cortex-R5, 533MHz
GPU ARM Mali-400 MP2, up to 667MHz
(PS) High-Speed Connectivity PCIe® Gen2 x4, 2x USB3.0, SATA 3.1, DisplayPort, 4x Tri-mode Gigabit Ethernet
(PS) General Connectivity 2x USB 2.0, 2x SD/SDIO, 2x UART, 2x CAN 2.0B, 2x I2C, 2x SPI, 4x 32b GPIO
Logic Cells (K) 1,143
CLB Flip-Flops(K) 1,045
CLB Look Up Tables (LUTs) (K) 523
Max. Distributed RAM (Mb) 9.8
Total Block RAM (Mb) 34.6
UltraRAM (Mb) 36.0
Clock Management Tiles (CMTs) 11
DSP Slices 1,968
PL PCIe Gen 3 3x Gen3x16 & 2x Gen3x8
100G Ethernet 4x
150G Interlaken 4x
Transceivers GTH 16.3Gb/s Transceivers: 32x
GTY 32.75Gb/s Transceivers: 16x
1.8V High-Performance (HP) I/Os 416
3.3V High-Density (HD) I/O 96
Chip Level Industrial Grade
Speed Grade -2
Working Temperature -40℃~85℃

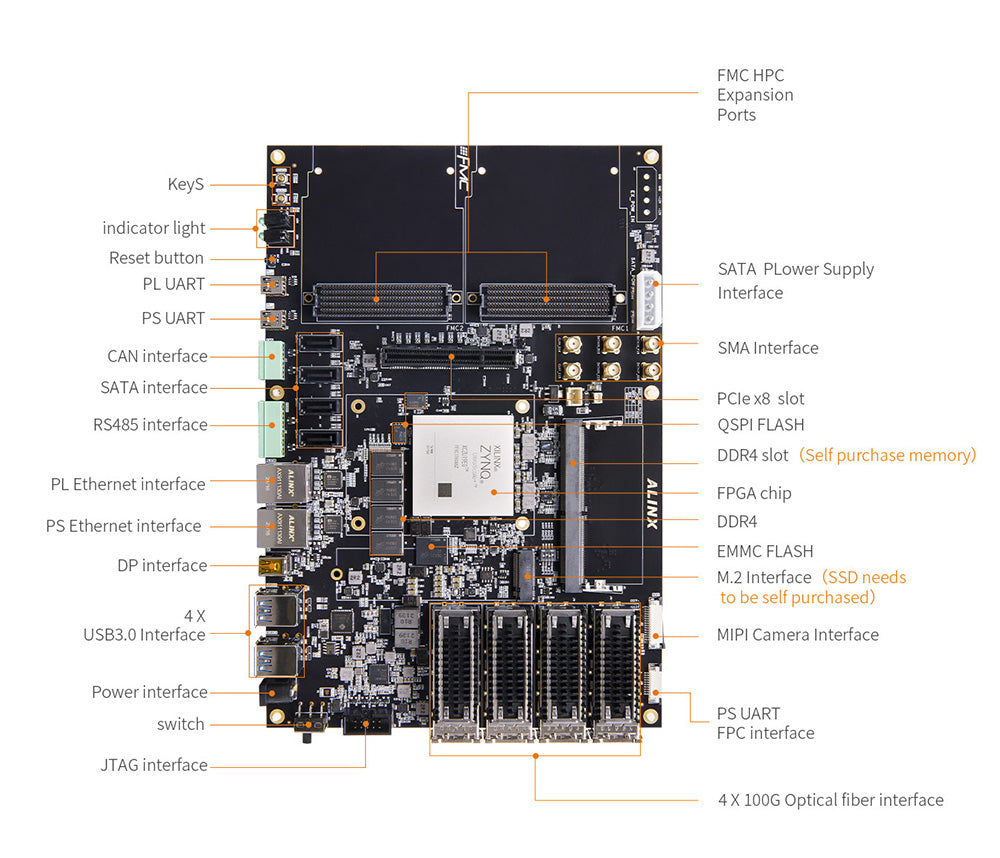

Board Features

DDR4 PS: 4x 1GB DDR4, total 4GB, 64bit Bus, Data Rate 2400Mbps
PL: 1x 260-pin DDR4 SODIMM Socket
QSPI FLASH 2x 512Mbit, for user data storage
eMMC FLASH 32GB, for system/boot storage
DP 1x Mini DisplayPort Output, Supports 4K@30Hz or 1080P@60Hz
QSFP28 4x QSFP28 100G
M.2 1x NVME M.2 (PCIEx1), for M.2 SSD storage
SATA 4x, for external HD
FMC Expansion Port 2x Standard HPC FMC Expansion Port, for Xilinx/ALINX or 3rd Party FMC cards.
PCI Express Socket 1x PCIe 2.0 x8, up to 5 GT/s per lane
CAN Bus 2x
RS485 Bus 2x
MIPI 1x
USB 3.0 4x, for external USB devices
USB UART 1x PS, 1x PL, for serial communication with PC or devices
UART 1x PS, 1mm-spacing 10-pin FPC connector, for peripheral devices
SMA 3-pairs Differential, for external High-Speed Input/Out signals
Ethernet Interface 2x 10/100/1000M Ethernet with RJ45 for data exchange
Active Crystal Oscillator 1x Single-ended 33.333MHz provide PS Clock
1x Differential 200MHz for the PL Logic and DDR Reference
JTAG 10-pin 2.54mm (0.1-inch) Standard JTAG port for Programs Debug and Download
Temperature Sensor LM75, for onboard ambient temperature
EEPROM EEPROM 24LC04 with IIC
SD Card Slot 1 micro SD Card Slot, support SD Mode and SPI Mode
Real Time Clock 1x Built-in RTC, connect external Lithium Battery by J22 (VBAT_IN) (optional)
LEDs 4x, 1 PWR, 1 DONE, 1x PS User, 1x PL User
Push-Buttons 1x RESET, 1x PS User, 1x PL User
Power Supply

Voltage Input: +12 V DC, 2.1mm x 5.5mm

Current Input: Max. Current 3 A

What's Included
FPGA Board 1 DC Fan (installed) 1x FAN8060
Mini USB Cable 1 Programming Cable 1 set
12V Power Adapter 1 Acrylic Panel (Top) 1
SD Card 1x 32GB SD Card Reader 1
Dimensions
Dimension 165mm x 113.94mm
PCB 8 Layer, Independent GND and Power Layers

Z19 User Manual (PDF) (coming soon)

Full documentation including Schematics, DXF files will be provided by CodeRobin IT.
