Description
Zynq® UltraScale+™ MPSoC devices provide 64-bit processor scalability while combining real-time control with soft and hard engines for graphics, video, waveform, and packet processing.
Zynq UltraScale+ EGSource: https://www.xilinx.com/products/silicon-devices/soc/zynq-ultrascale-mpsoc.html
Broad Device Range for Next-Generation Applications:
- Quad Arm Cortex-A53
- Dual Arm Cortex-R5F
- 16nm FinFET+ Programmable Logic
- Arm Mali™-400MP2

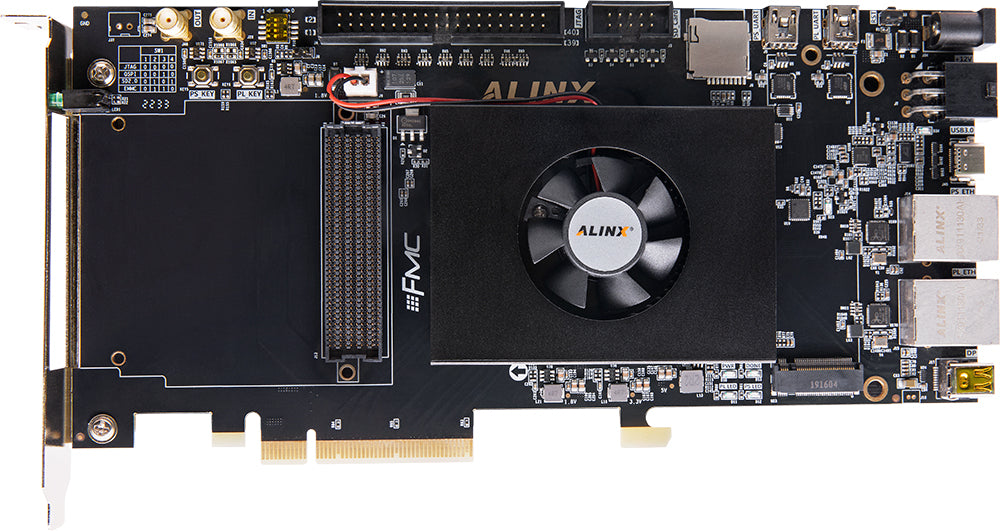

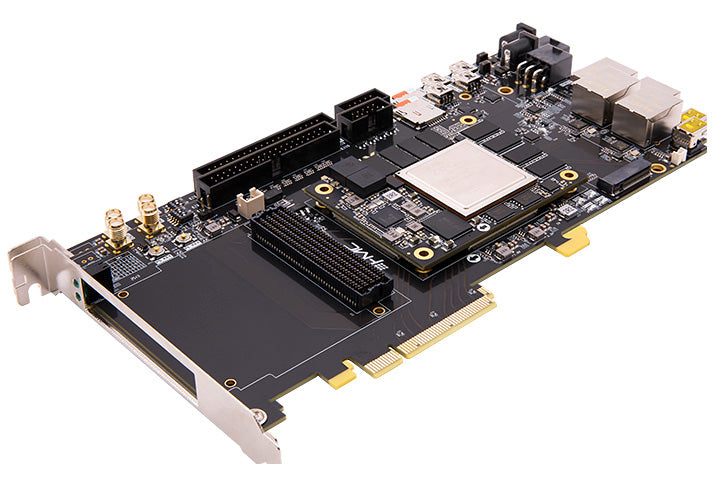

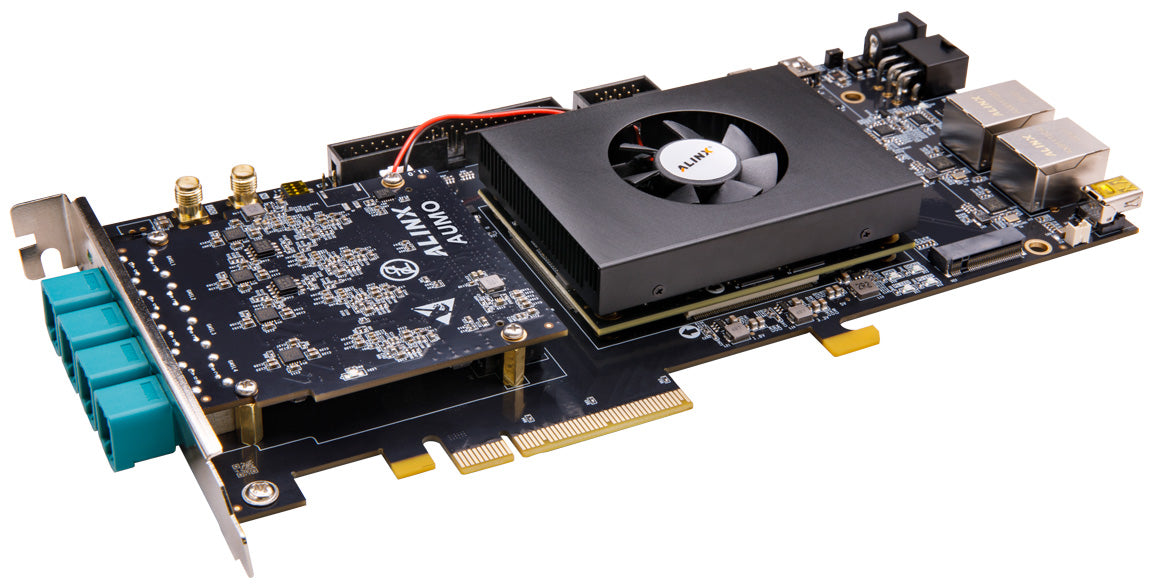

Z11-P is a High Performance PCIe3.0 x8 Card with XCZU11EG FPGA, equipped with 1x HPC FMC, M.2, DisplayPort and rich I/O ports, built for Packet Processing and Communication. Ideal for 5G Wireless, Next-generation ADAS, Multimedia, AI, Machine Learning and Embedded Vision.
Ideal for:
- 5G Wireless
- Industrial Control
- AI
- 4K Video Processing
- Aerospace
The SOM model is ACU11EG. For a High End EG board, look for our AXU15EG; For an entry-level EG board, check out our AXU3EG.
Z11-P shares the same Carrier Board with Z7-P.
FPGA Specification
| SOM | ACU11EG |
| FPGA | XCZU11EG-2FFVC1156I |
| Processors | 4x ARM Cortex-A53, 1.333GHz 2x ARM Cortex-R5, 533MHz |
| GPU | ARM Mali-400 MP2 |
| High-Speed Connectivity | PCIe® Gen2 x4, 2x USB3.0, SATA 3.1, DisplayPort, 4x Tri-mode Gigabit Ethernet |
| General Connectivity | 2x USB 2.0, 2x SD/SDIO, 2x UART, 2x CAN 2.0B, 2x I2C, 2x SPI, 4x 32b GPIO |
| Transceivers | GTH 16.3Gb/s Transceivers: 20x |
| Chip Level | Industrial Grade |
| Speed Grade | -2 |
| Working Temperature | -40℃~85℃ |
| System Logic Cells (K) | 653 |
| CLB Flip-Flops (K) | 597 |
| CLB LUTs (K) | 299 |
| Max. Distributed RAM (Mb) | 9.1 |
| Total Block RAM (Mb) | 21.1 |
| UltraRAM (Mb) | 22.5 |
| Clock Management Tiles (CMTs) | 8 |
| DSP Slices | 2,928 |
| 1.8V High-Performance (HP) I/Os | 134 |
| 3.3V High-Density (HD) I/O | 46 |

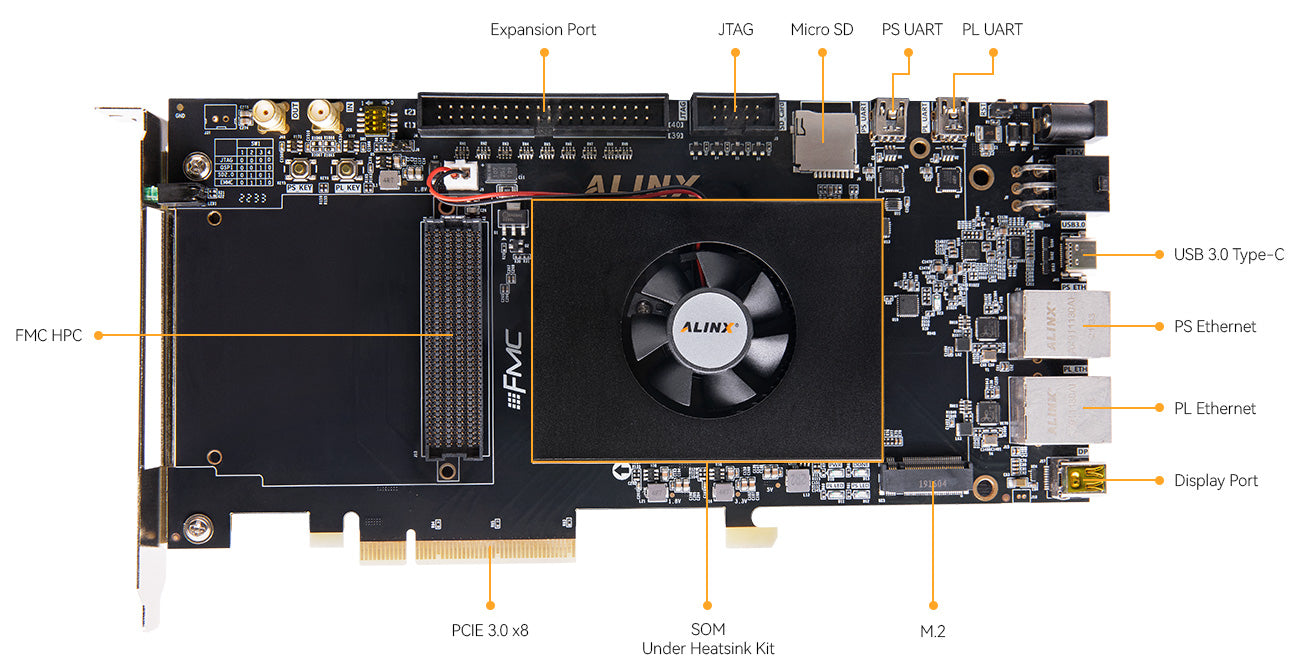

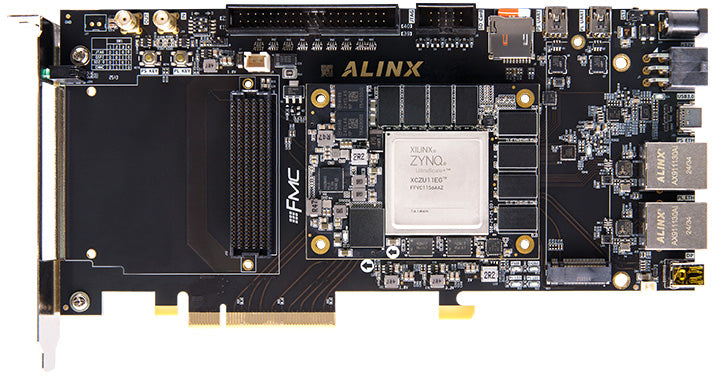

Board Features
| DDR4 | PS: 4x 1GB DDR4, total 4GB, 64bit Bus, Data Rate 2400Mbps PL: 4x 1GB DDR4, total 4GB, 64bit Bus, Data Rate 2400Mbps |
| QSPI FLASH | 2x 256Mbit, for user data storage |
| eMMC FLASH | 32GB, for system/boot storage |
| DP | 1x Mini DisplayPort Output, Supports 4K@30Hz or 1080P@60Hz |
| M.2 | 1x NVME M.2 (PCIEx1), for M.2 SSD storage |
| FMC Expansion Port | 1x Standard HPC FMC Expansion Port, for Xilinx/ALINX or 3rd Party FMC cards. Includes 34 Pairs Differential I/O, 1.8V. |
| PCI Express | PCIe Gen3 x8, each channel up to 8GBaud |
| USB 3.0 | 1x USB3.0, (Type-C, HOST, SLAVE or OTG), for external USB devices |
| USB UART | 2x, for serial communication with PC or devices |
| Ethernet Interface | 2x 10/100/1000M Ethernet with RJ45 for data exchange |
| Active Crystal Oscillator | 1x Single-ended 33.333MHz provide PS Clock 1x Differential 200MHz for the PL Logic and DDR Reference |
| 40-pin Expansion Port | 1x 40-pin Expansion Port (2.54mm / 0.1 inch pitch), fit with ALINX Binocular Camera Module, TFT LCD Screen, Camera, AD/DA, etc. Includes: 1x 5V, 2x 3.3V, 3x GND, 34x I/O. |
| JTAG | 10-pin 2.54mm (0.1-inch) Standard JTAG port for Programs Debug and Download |
| Temperature Sensor | LM75, for onboard ambient temperature |
| EEPROM | EEPROM 24LC04 with IIC |
| SD Card Slot | 1 micro SD Card Slot, support SD Mode and SPI Mode |
| Real Time Clock | Built-in RTC |
| LEDs | SOM: 1x Power Indicator (PWR) Carrier: 6x, 1 PWR, 1 DONE, 2x User, 2x User (PCI Fence side) |
| Push-Buttons | 3x: 1 Reset, 1 PS User, 1 PL User |
Power Supply
Voltage Input: +12 V DC, 2.1mm x 5.5mm
Current Input: Max. Current 3 A
What's Included
| FPGA Board | 1 | DC Fan (installed) | 1x FAN8060 |
| Mini USB Cable | 1 | Programming Cable | 1 set |
| 12V Power Adapter | 1 | PCI Bracket | 1 |
| SD Card | 1x 32GB | SD Card Reader | 1 |
Dimensions

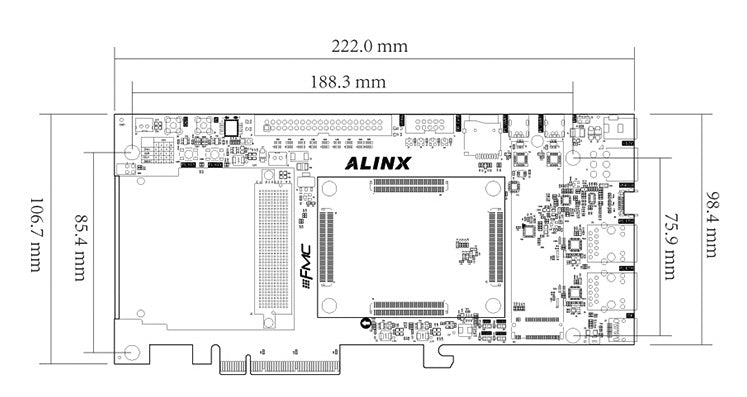

| Dimension | 222.0 mm x 106.7 mm (Carrier Board) 80mm x 60mm (SOM) |
| PCB | 8 Layer (Carrier Board) 16 Layer (SOM) Independent GND and Power Layers |
Resources & Downloads
Full documentation including Schematics, DXF files will be provided by CodeRobin IT.
