Description
Comparison

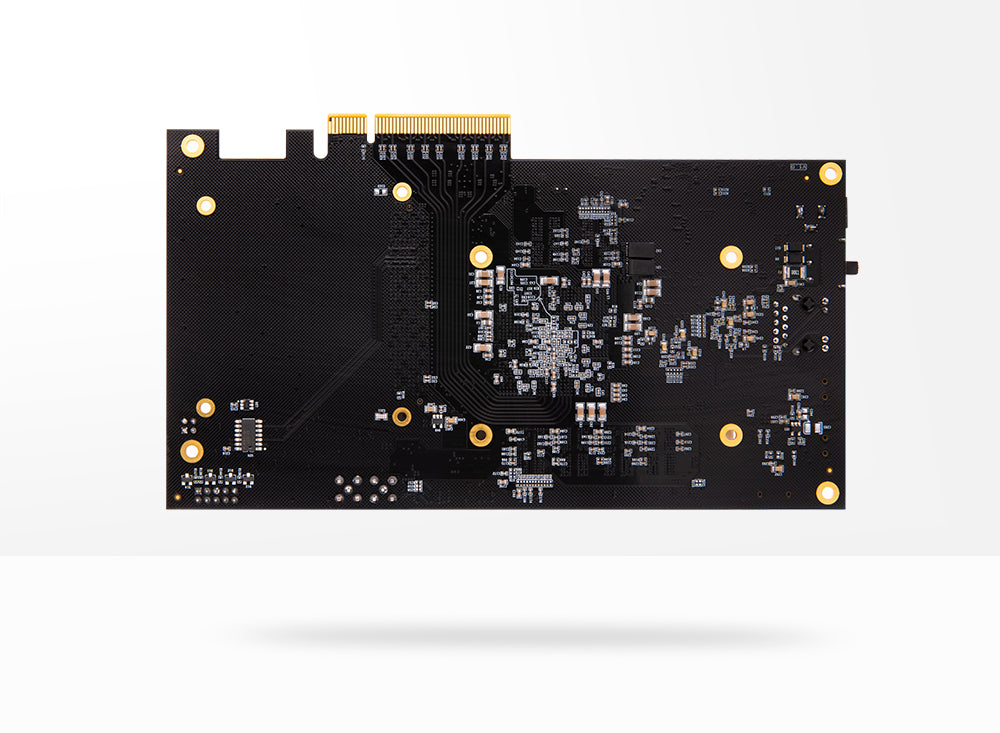

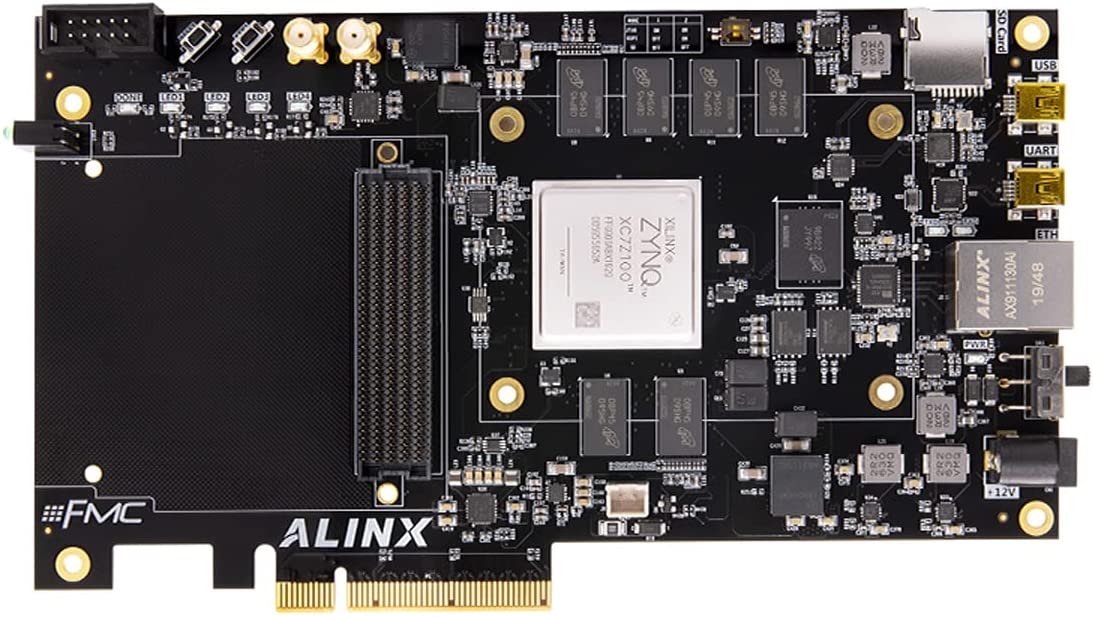

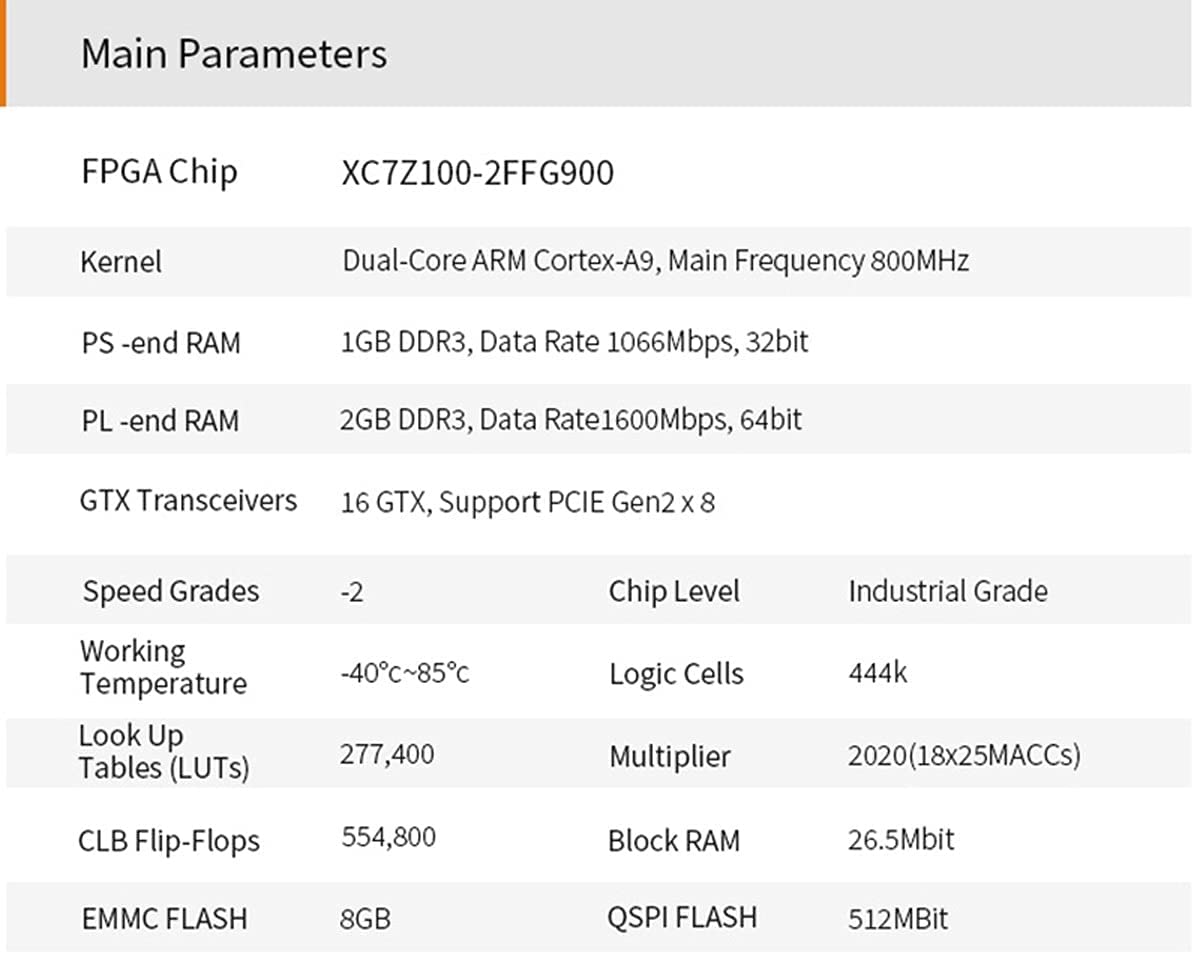

FPGA Chip | XC7Z100-2FFG900I | ||
Processor Core | ARM Cortex-A9 x2, Main Frequency 800MHz | ||
PS RAM | 1GB DDR3, Data Rate 1066Mbps, 32bit | ||
PL RAM | 2GB DDR3, Data Rate 1600Mbps, 64bit | ||
GTX Transceiver | 16 GTX, support PCIE Gen2.0 x8 lane | ||
Speed Grade | -2 | Chip Level | Industrial Grade |
Working Temperature | -40℃~85℃ | Logic Cells | 444K |
Look Up Tables (LUTs) | 277,400 | Multiplier | 2020 (18x25MACCs) |
CLB Flip-Flops | 554,800 | Block RAM | 26.5Mbit |
EMMC FLASH | 8GB | QSPI FLASH | 512MBit |

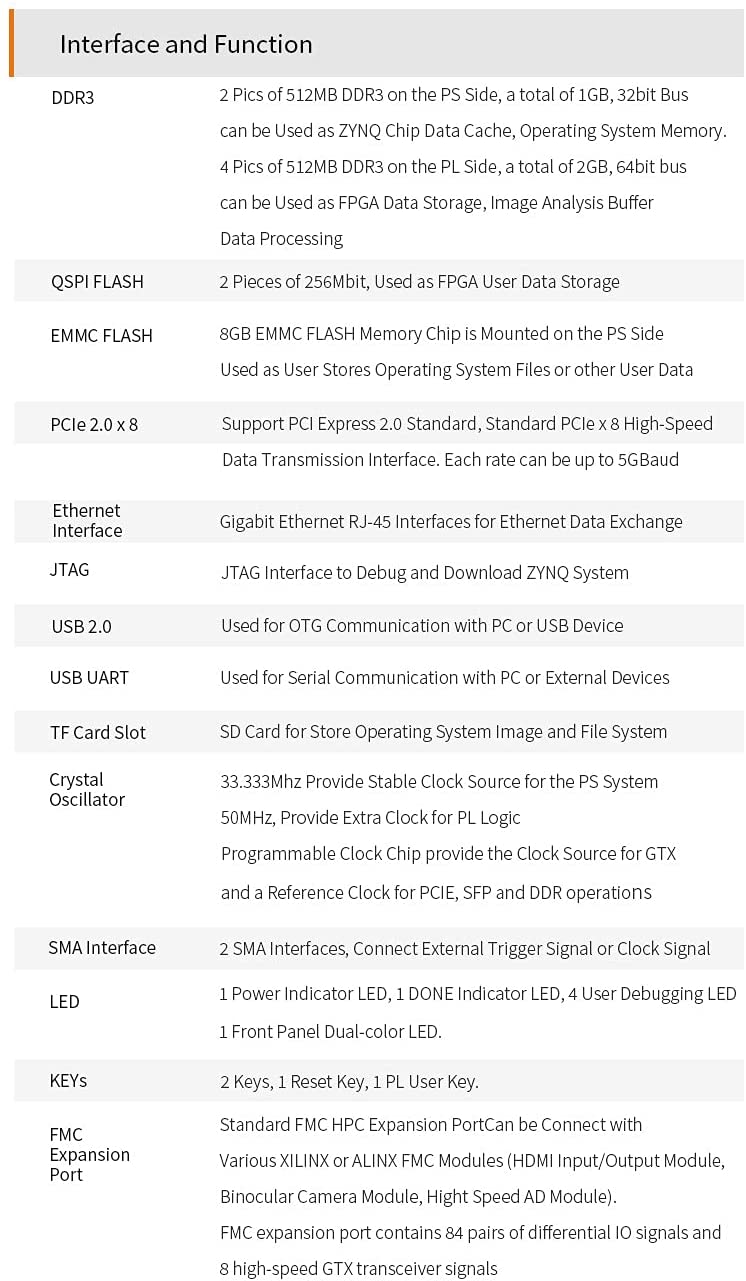

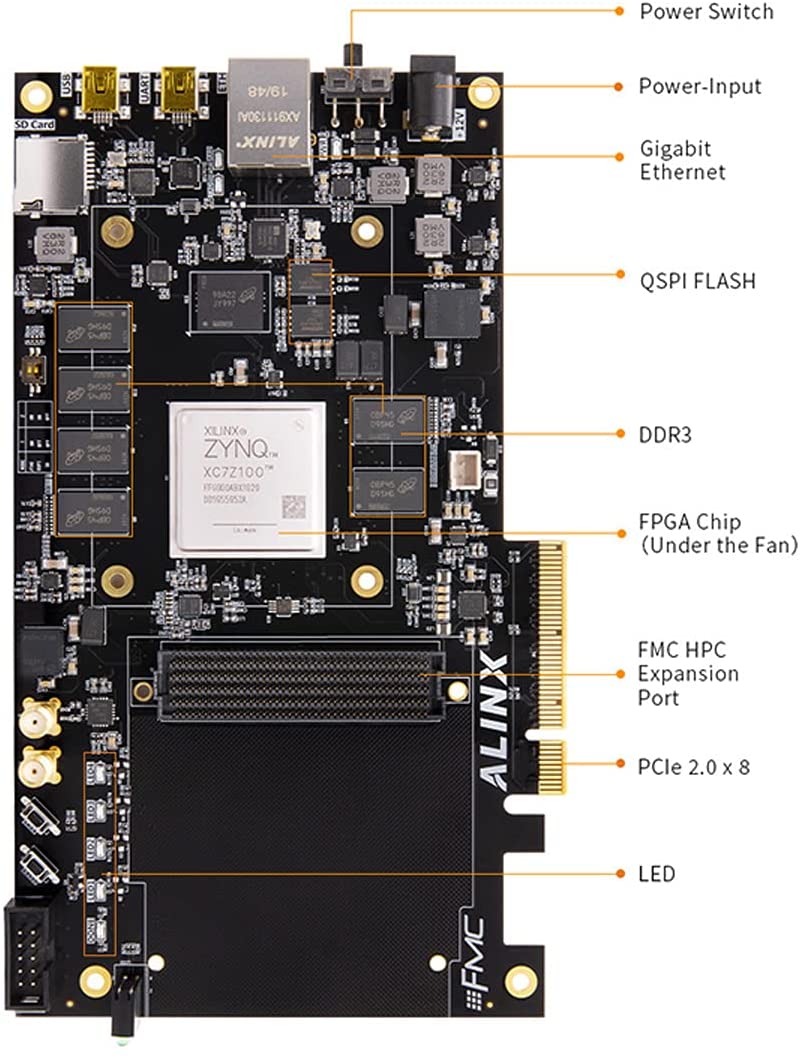

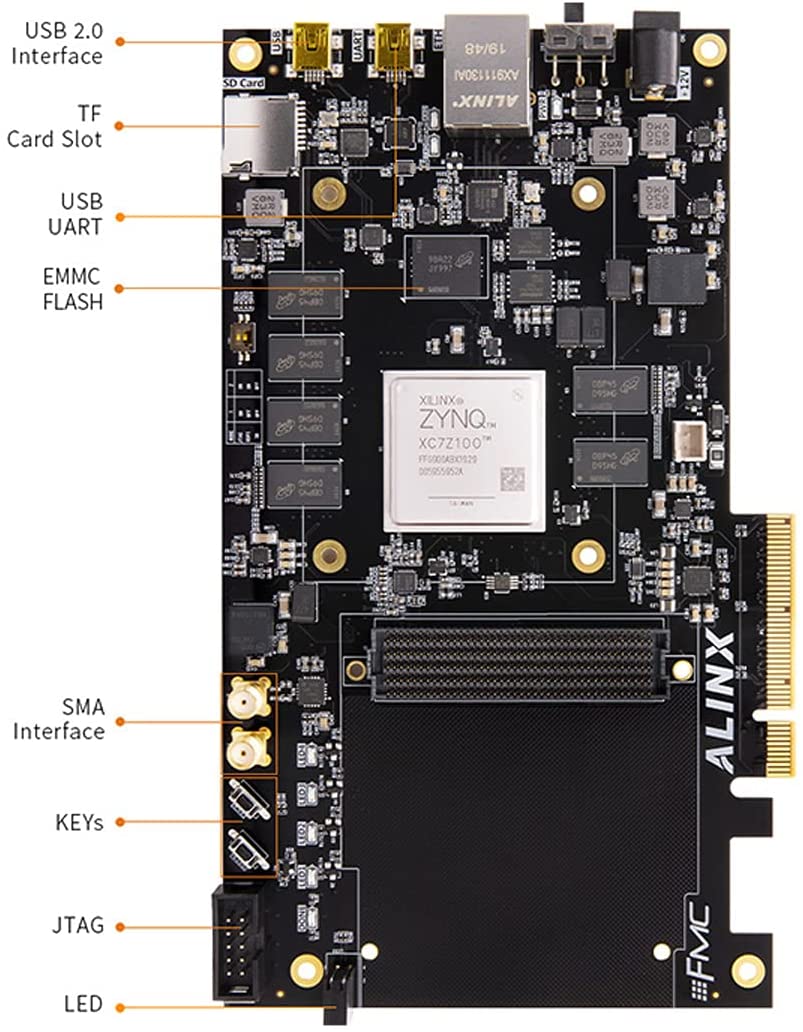

Features
DDR3 | PS RAM: 2x 512MB DDR3, total 1GB, 32bit Bus; PL RAM: 4x 512MB DDR3, total 2GB, 64bit Bus |
QSPI FLASH | 2x 256Mbit, for user data storage |
EMMC FLASH | 8GB, on the PS side, for user data |
PCIE 2.0 | 8 lane, rate up to 5G baud each |
Ethernet Interface | 10/100/1000M Ethernet with RJ45 for data exchange |
JTAG | 10-pin (0.1-inch/2.54mm pitch) JTAG port for Programs Debug and Download |
USB2.0 | for external USB Peripherals |
USB UART | for serial communication with PC or devices |
Crystal Oscillator | 33.333MHz for the PS, 50MHz for DDR Reference Clock for the PL Logic, reference clock for the GTX Transceiver |
SD Card Slot | 1x micro-SD Card Slot, support SD mode and SPI mode |
FMC Expansion Port | Standard FMC HPC Expansion Port, connect with various Xilinx/ALINX FMC Modules |
SMA Interface | 2x SMA Interfaces, connect external Trigger Signal or Clock Signal |
LEDs | 1 Power Indicator LED, 1 DONE, 4x user, 1 PCIE Fence Dual-colour LED |
KEYs | 2x, 1 Reset, 1 PL User |
Power Supply
Voltage Input: +12 V DC, Max Current 2A
What's Included
FPGA Board | 1 | DC Fan (fixed) | 1 |
Mini-USB Cable | 1 | USB Downloader Cable | 1 Set |
12V Power Adapter | 1 | PCIE Fence | 1 |
TF Card | 1 | Card Reader | 1 |
