Description

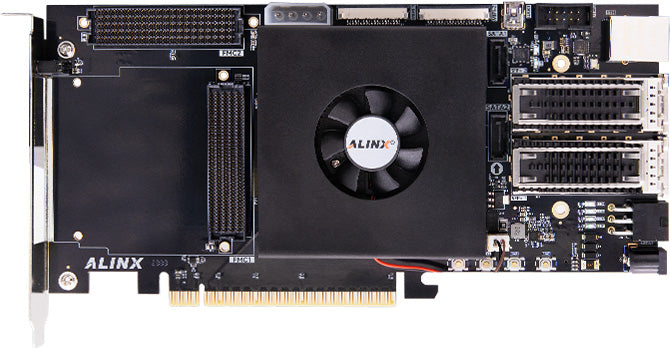

AXKU15S combines the 1.14M-cell XCKU15P with 5 GB of 80-bit DDR4 and direct access to PCIe Gen3 x16, dual QSFP28 and dual FMC HPC. A dense platform for high-throughput PCIe, optical networking, data acquisition and multi-interface FPGA development.
The removable ACKU15S module separates the FPGA and memory subsystem from the carrier. 32 GTH plus 24 GTY transceivers, two SATA interfaces and two four-lane MIPI inputs support mixed storage, vision and communications designs on one board.
FPGA Specification
| Kintex UltraScale+ KU15P | |
| System Logic Cells | 1,143K |
| CLB Flip-Flops | 1,045K |
| CLB LUTs | 523K |
| Distributed RAM | 9.8 Mb |
| Block RAM | 34.6 Mb |
| UltraRAM | 36.0 Mb |
| DSP Slices | 1,968 |
| Clock Management Tiles | 11 |
| Integrated IP and I/O | |
| PCIe Gen3 x16 Integrated Blocks | 5 |
| 150G Interlaken Blocks | 4 |
| 100G Ethernet Blocks with KR4 RS-FEC | 4 |
| Transceivers | 32 GTH; 24 GTY |
| User I/O | 88 HD; 256 HP |
| Device | |
| Part Number | XCKU15P-2FFVE1517I |
Features

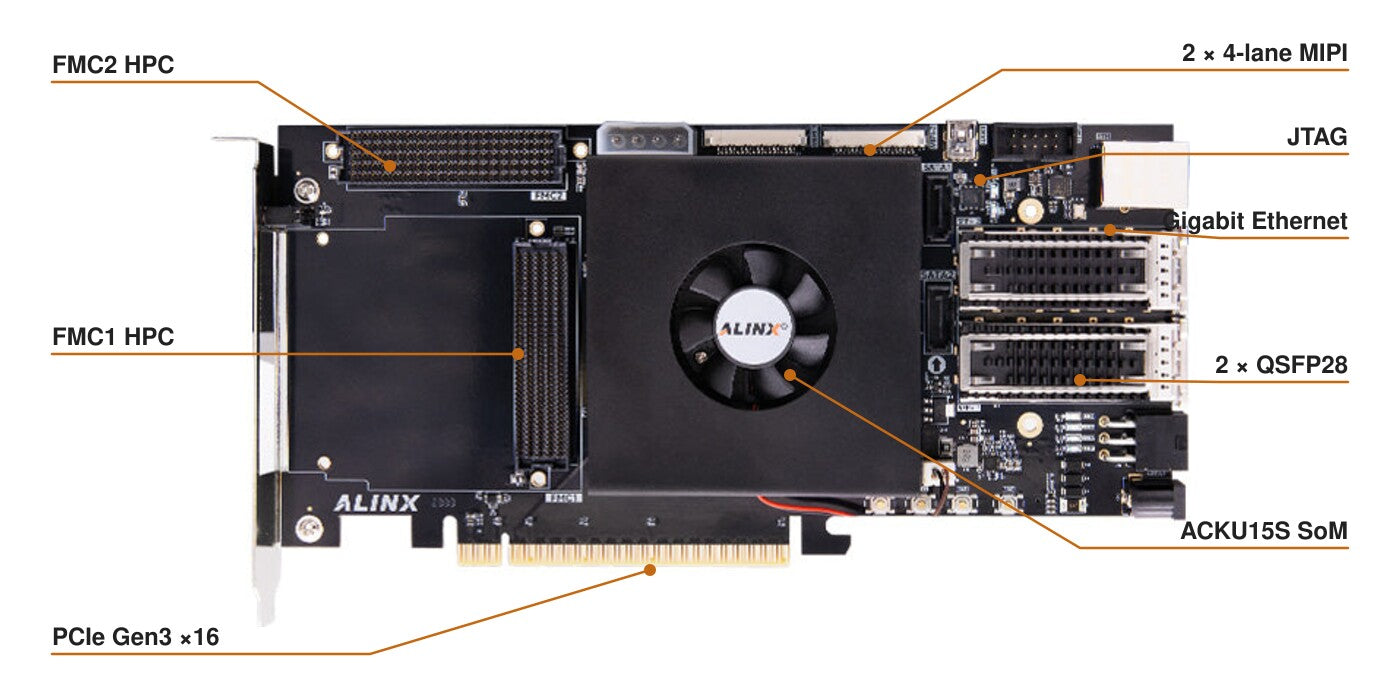

| FPGA Module | |
| System-on-Module | ACKU15S, removable 80 × 80 mm module |
| DDR4 | 5 GB, 80-bit |
| QSPI Flash | 2 × 64 MB |
| Transceivers | 32 GTH up to 16.3 Gb/s; 24 GTY up to 28.21 Gb/s |
| High-Speed Interfaces | |
| PCI Express | PCIe Gen3 x16 |
| Optical | 2 × QSFP28 |
| FMC | 2 × FMC HPC; FMC1: 58 LVDS pairs + 8 GTH; FMC2: 34 LVDS pairs + 8 GTH |
| Camera | 2 × four-lane MIPI |
| Storage Interfaces | 2 × SATA; microSD |
| Peripheral and Mechanical | |
| Networking | Gigabit Ethernet |
| Control and Debug | USB-UART; JTAG; 4 user keys; 4 user LEDs |
| Monitoring | LM75 temperature sensor; 512-byte 24LC04 EEPROM |
| Power | 12 V single supply |

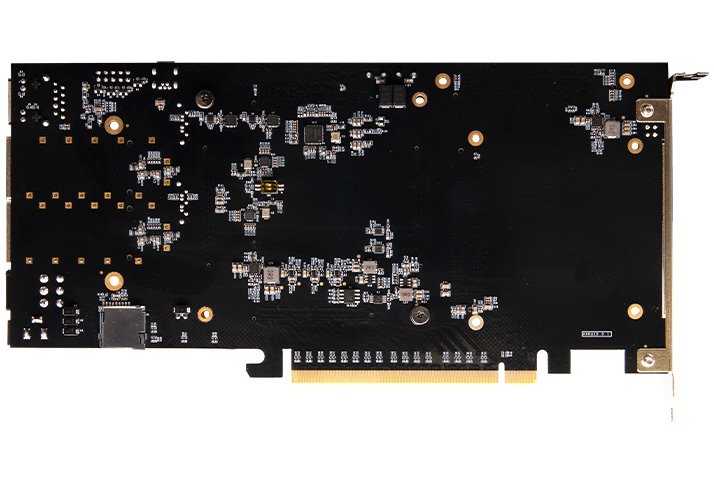

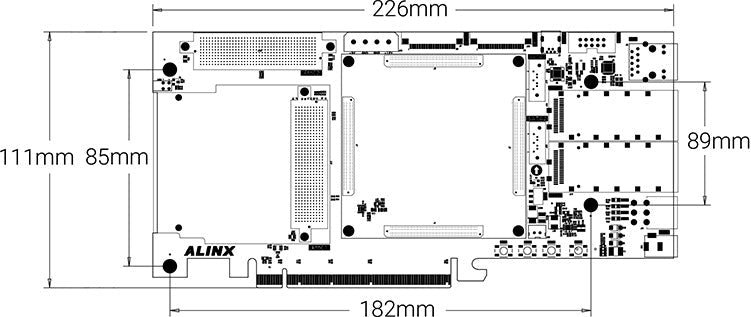

| Dimensions | 226 × 111 mm |
What's Included
- ACKU15S system-on-module and AXKU15 carrier board
- Preinstalled FAN8060 heatsink and fan
- Mini USB cable
- USB programming cable
- 12 V power adapter
- PCIe bracket
