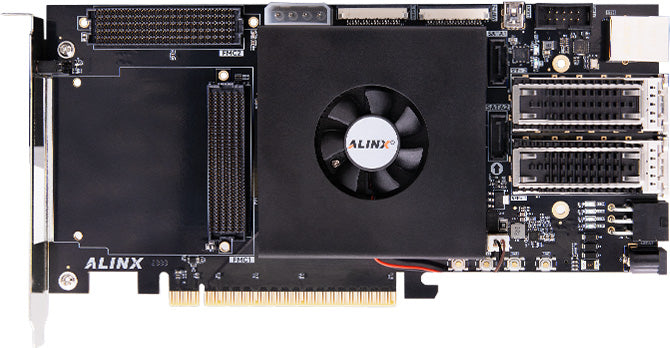

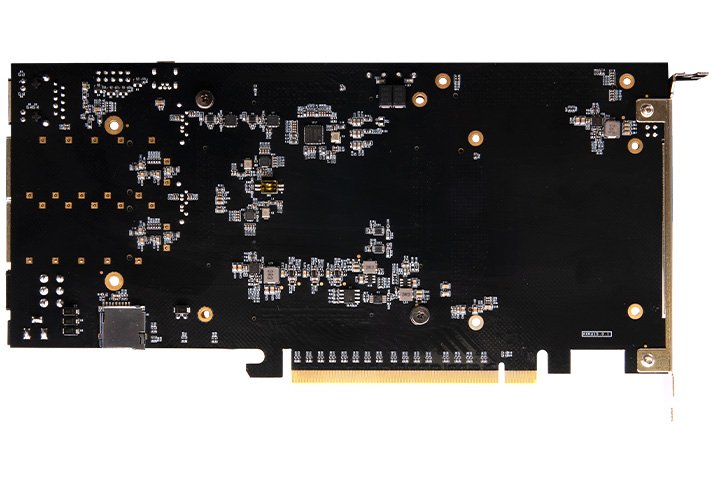

Description
AXKU15-D combines the 1.14M-cell XCKU15P with two physically independent 5 GB DDR4 groups. Separate memory paths for deterministic traffic partitioning across PCIe, network and accelerator datapaths without sharing one external-memory bus.
PCIe Gen3 x16, dual QSFP28 and FMC HPC provide the principal high-bandwidth interfaces. 32 GTH and 24 GTY transceivers support host-attached acceleration, packet processing, storage and subsystem validation workloads.
FPGA Specification
| Kintex UltraScale+ KU15P | |
| System Logic Cells | 1,143K |
| CLB Flip-Flops | 1,045K |
| CLB LUTs | 523K |
| Distributed RAM | 9.8 Mb |
| Block RAM | 34.6 Mb |
| UltraRAM | 36.0 Mb |
| DSP Slices | 1,968 |
| Clock Management Tiles | 11 |
| Integrated IP and I/O | |
| PCIe Gen3 x16 Integrated Blocks | 5 |
| 150G Interlaken Blocks | 4 |
| 100G Ethernet Blocks with KR4 RS-FEC | 4 |
| Transceivers | 32 GTH; 24 GTY |
| User I/O | 88 HD; 256 HP |
| Device | |
| Part Number | XCKU15P-2FFVE1517I |

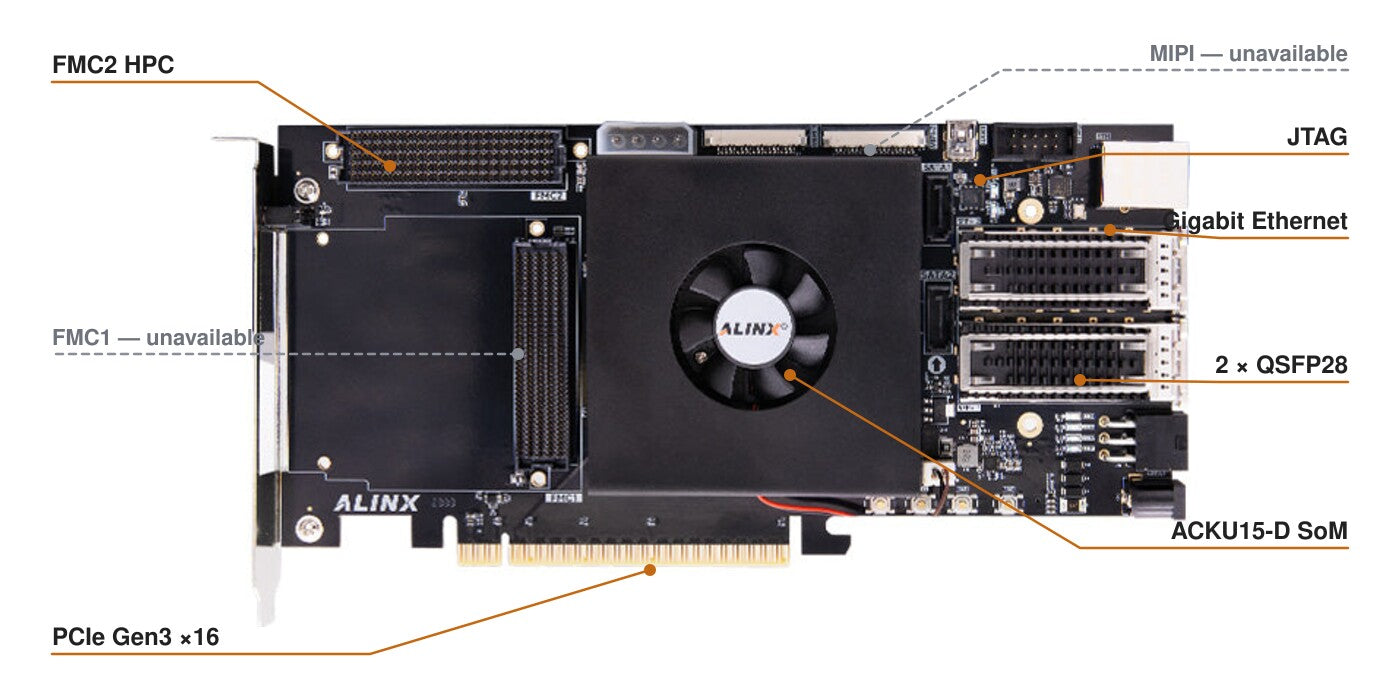

Features
| FPGA Module | |
| System-on-Module | ACKU15-D, removable module |
| DDR4 | 10 GB: 2 physically independent × 5 GB groups |
| QSPI Flash | 2 × 64 MB |
| Transceivers | 32 GTH; 24 GTY |
| High-Speed Interfaces | |
| PCI Express | PCIe Gen3 x16 |
| Optical | 2 × QSFP28 |
| FMC | 1 × usable FMC HPC; physical FMC1 connector unavailable on AXKU15-D |
| MIPI | Physical connectors unavailable on AXKU15-D |
| Peripheral and Mechanical | |
| Networking | Gigabit Ethernet |
| Control and Debug | USB-UART; JTAG; 4 user keys; 4 user LEDs |
| Storage | microSD |
| Monitoring | LM75 temperature sensor; 512-byte 24LC04 EEPROM |
| Power | 12 V single supply |

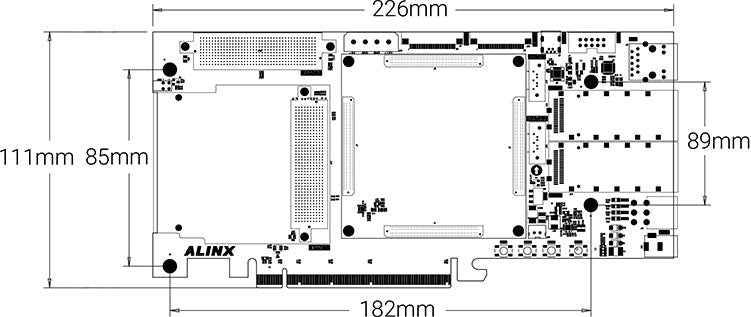

| Dimensions | 226 × 111 mm |
What's Included
- ACKU15-D system-on-module and AXKU15 carrier board
- Preinstalled FAN8060 heatsink and fan
- Mini USB cable
- USB programming cable
- 12 V power adapter
- PCIe bracket
