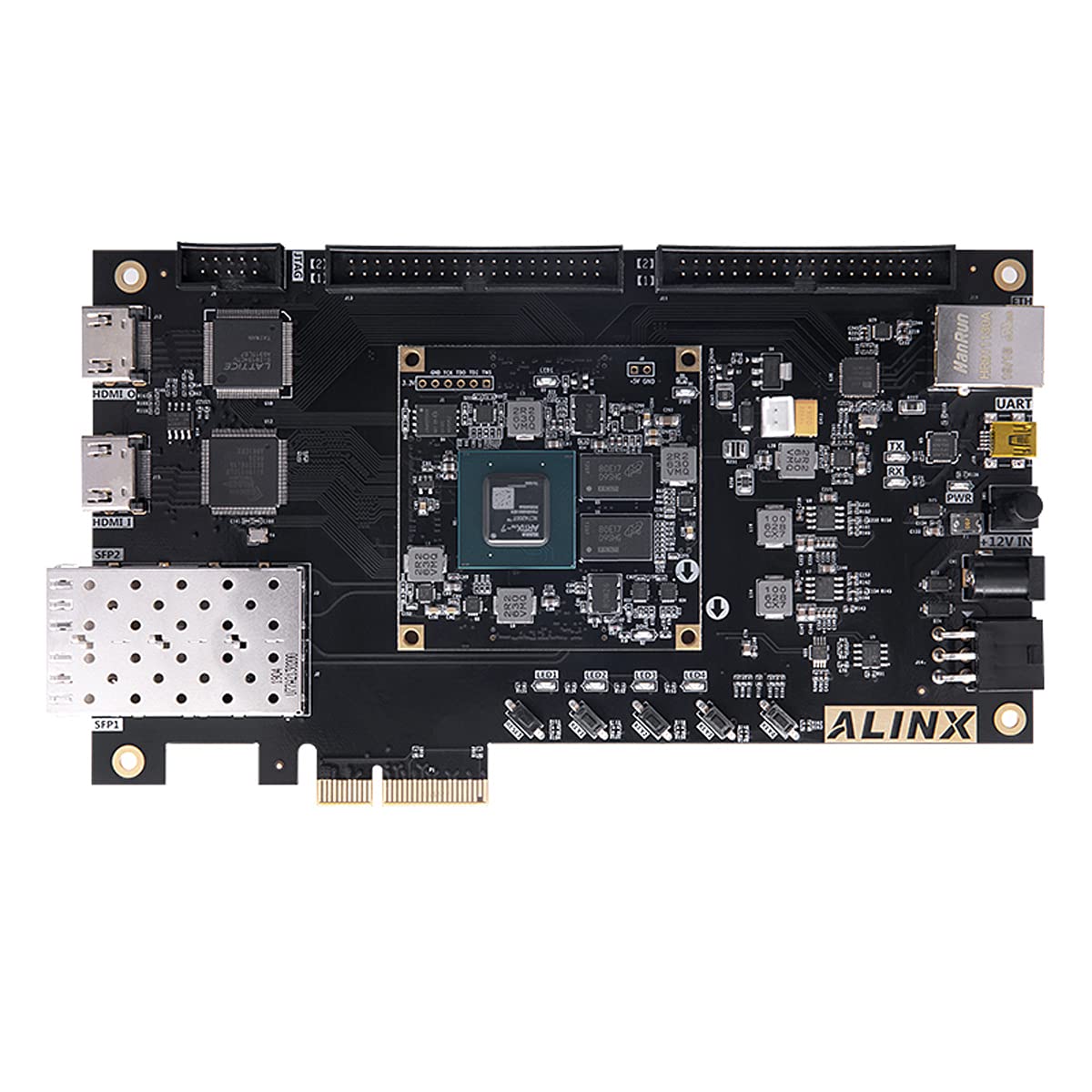

AX7A200 is a cost-effective all rounder Xilinx Artix-7 XC7A200T PCI Express 2.0 Development Card with 2x SFP, 1x Gigabit Ethernet, 2x HDMI, and 2x 40-pin Expansion Ports, the best value for a variety of cost and power-sensitive applications including software-defined radio, machine vision cameras, and low-end wireless backhaul.

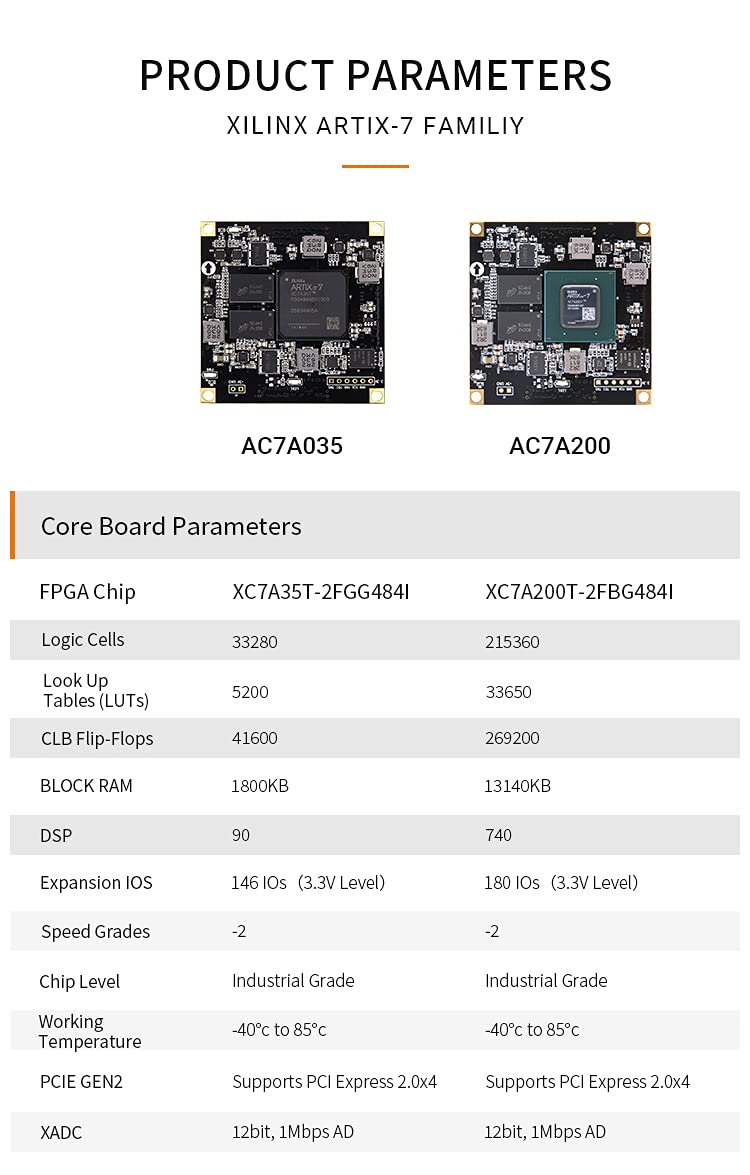

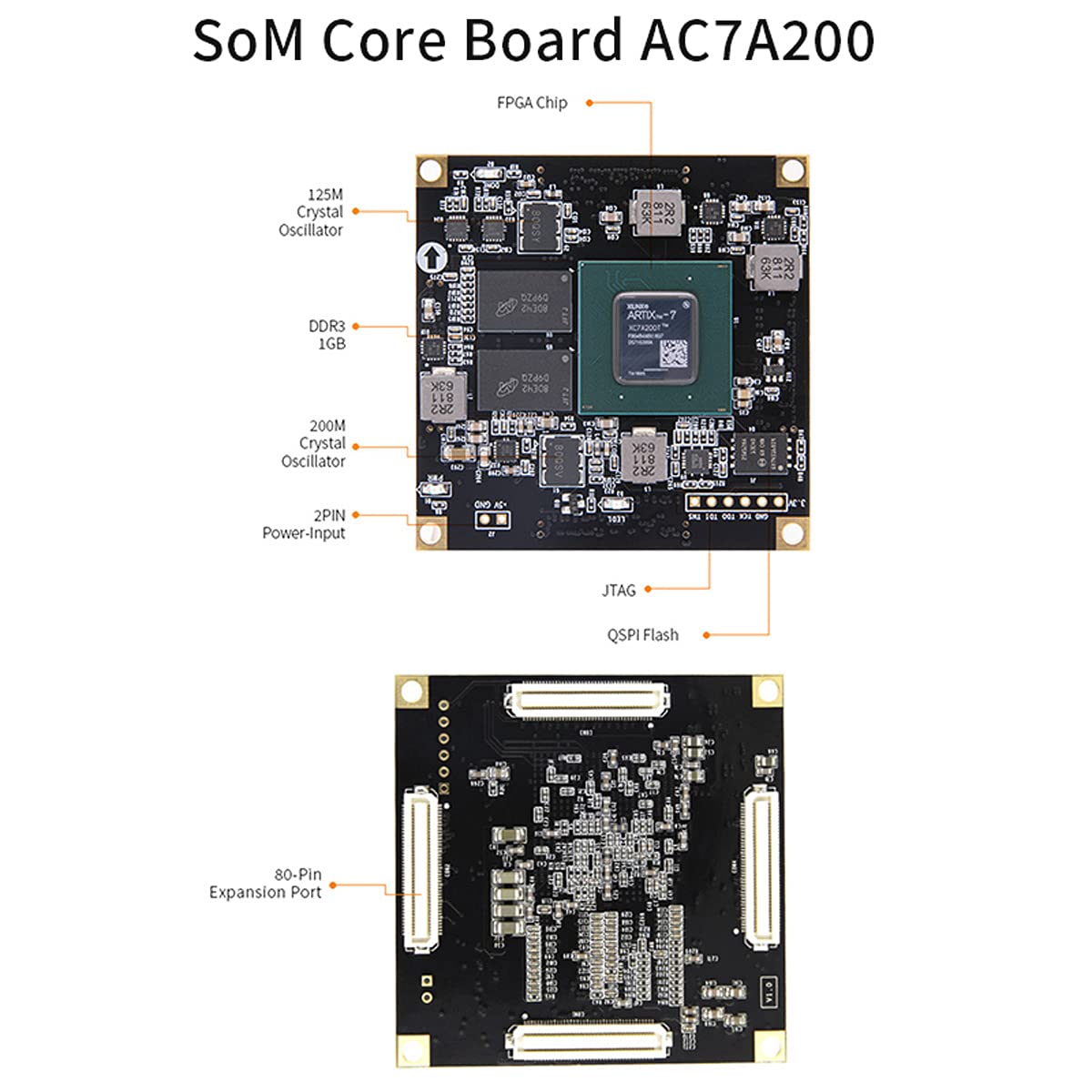

The SOM model used is AC7A200.

The AX7A035 shares the same carrier board with AX7A200.

FPGA Specification
FPGA XC7A200T-2FBG484I
Speed Grade -2
Chip Level Industrial Grade
Working Temperature -40℃~85℃
Logic Cells 215,360
Slices 33,650
CLB Flip-Flops 269,200
Maximum Distributed RAM (Kb) 2,888
Block RAM/FIFO w/ ECC (36 Kb each) 365
Total Block RAM (Kb) 13,140
CMTs (1 MMCM + 1 PLL) 10
Maximum Single-Ended I/Os 500
Maximum Differential I/O Pairs 240
DSP Slices 740
PCIe® Gen2 1
Analog Mixed Signal (AMS) / XADC 1
GTP Transceivers (6.6 Gb/s Max Rate) 16

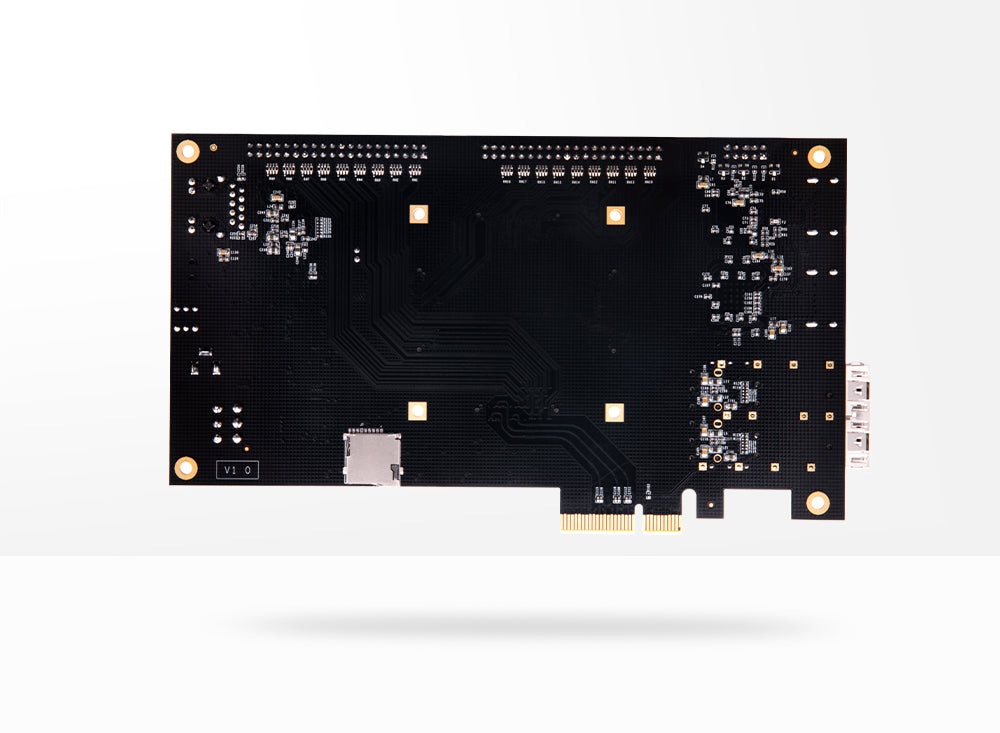

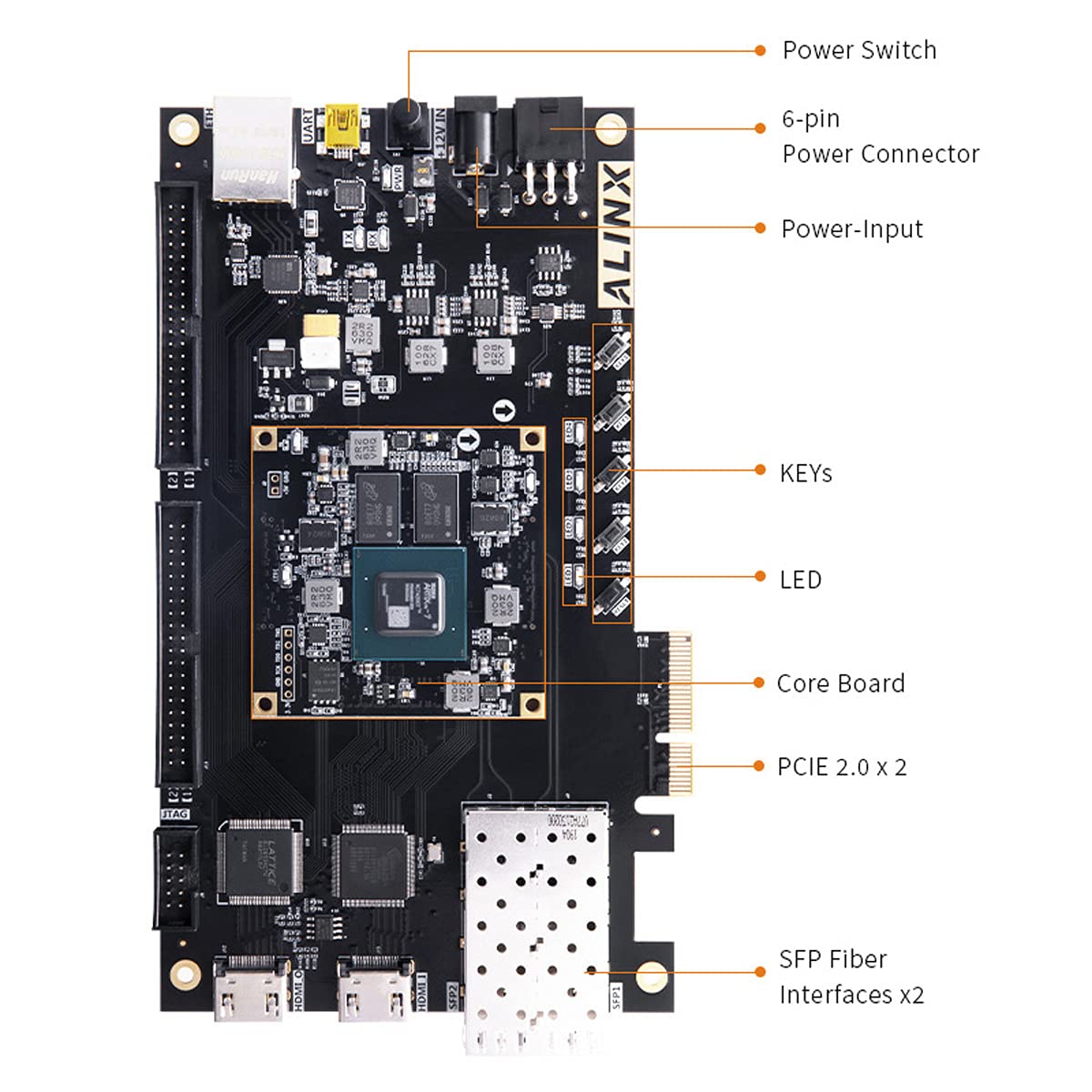

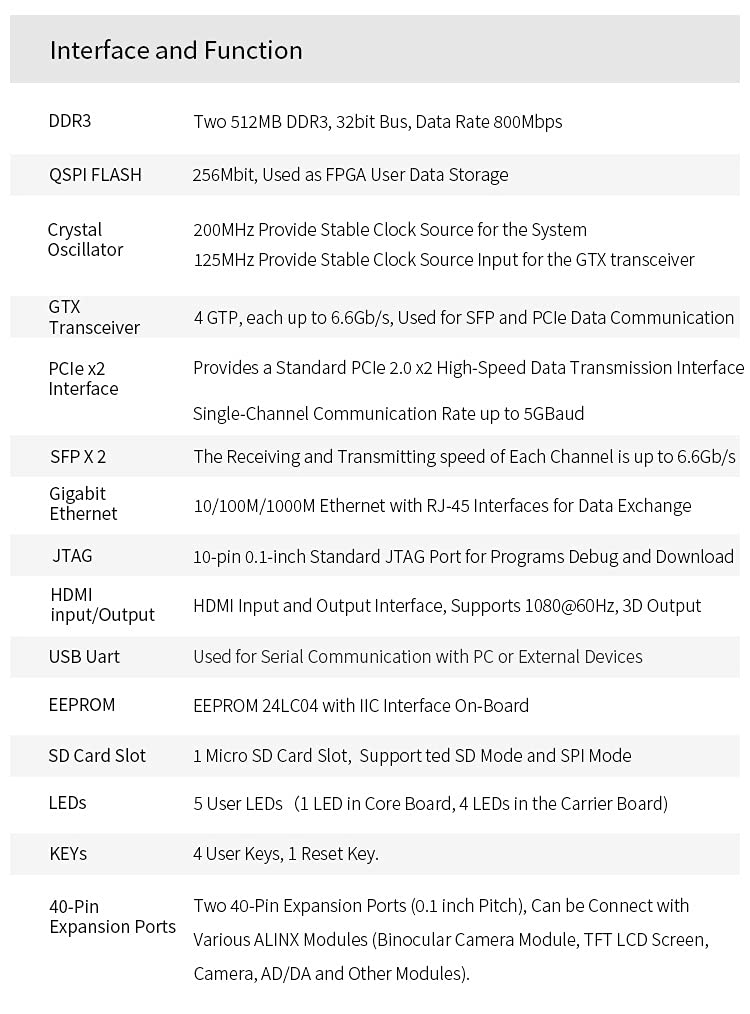

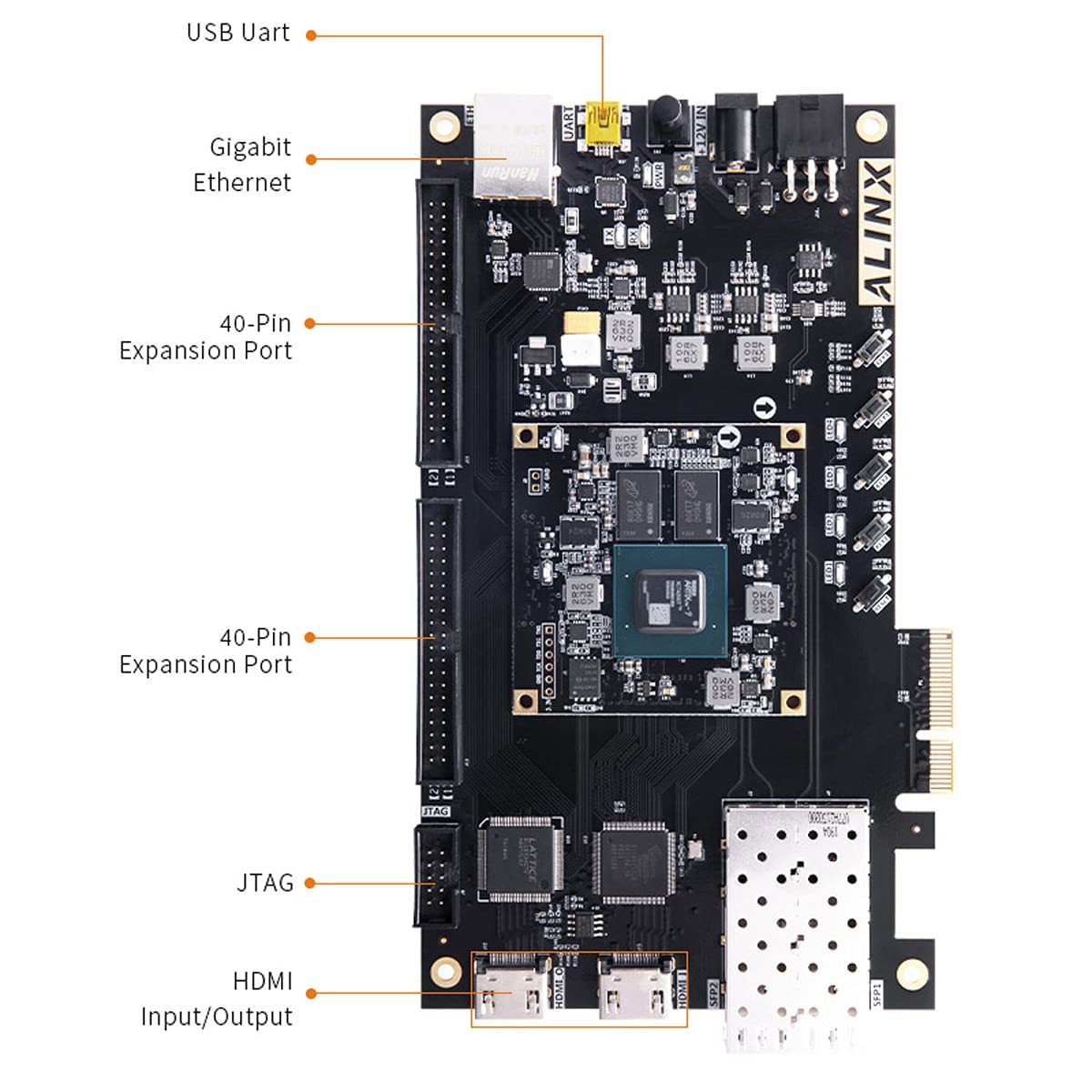

Board Features

DDR3 2 Pieces of 512MB DDR3, 1GB total, 32 bit bus width, max rate 800Mbps
QSPI Flash 1 Piece of 128Mbit, for FPGA bin file and user data storage
PCI Express 2.0 x2 lane, single channel rate up to 5G baud
SFP 2x SFP, up to 6.6Gb/s each channel.
Gigabit Ethernet 1x 10/100/1000M Ethernet with RJ-45
JTAG 10-pin 2.54mm (0.1-inch) Standard JTAG port for Programs Debug and Download
HDMI 1x Output, up to 1080p@60Hz, supports 3D Output
HDMI 1x Input, up to 1080p@60Hz, supports multiple formats
USB UART for Serial Communication with PC/Devices
Crystal Oscillator 200MHz Differential for FPGA SYS_CLK, 125MHz Differential for GTP Transceivers.
40-pin Expansion Port 2x 40-pin Expansion Port (2.54mm / 0.1 inch pitch), fit with ALINX Binocular Camera Module, TFT LCD Screen, Camera, AD/DA, etc.
Includes: 1x 5V, 2x 3.3V, 3x GND, 34x I/O.
EEPROM 1x 24LC04 with IIC
SD Card Slot 1x micro-SD Card Slot, support SD mode and SPI mode
LED SOM: 1 PWR, 1 DONE, 1 User
Carrier: 1 PWR, 4 User, 2 for UART (TX/RX)
Push-Buttons 1 Power On/Off, 1 Reset, 4 User
Power Supply

Voltage Input: +12 V DC, Barrel plug 2.1 x 5.5mm

Current Input: Max. Current 2 A

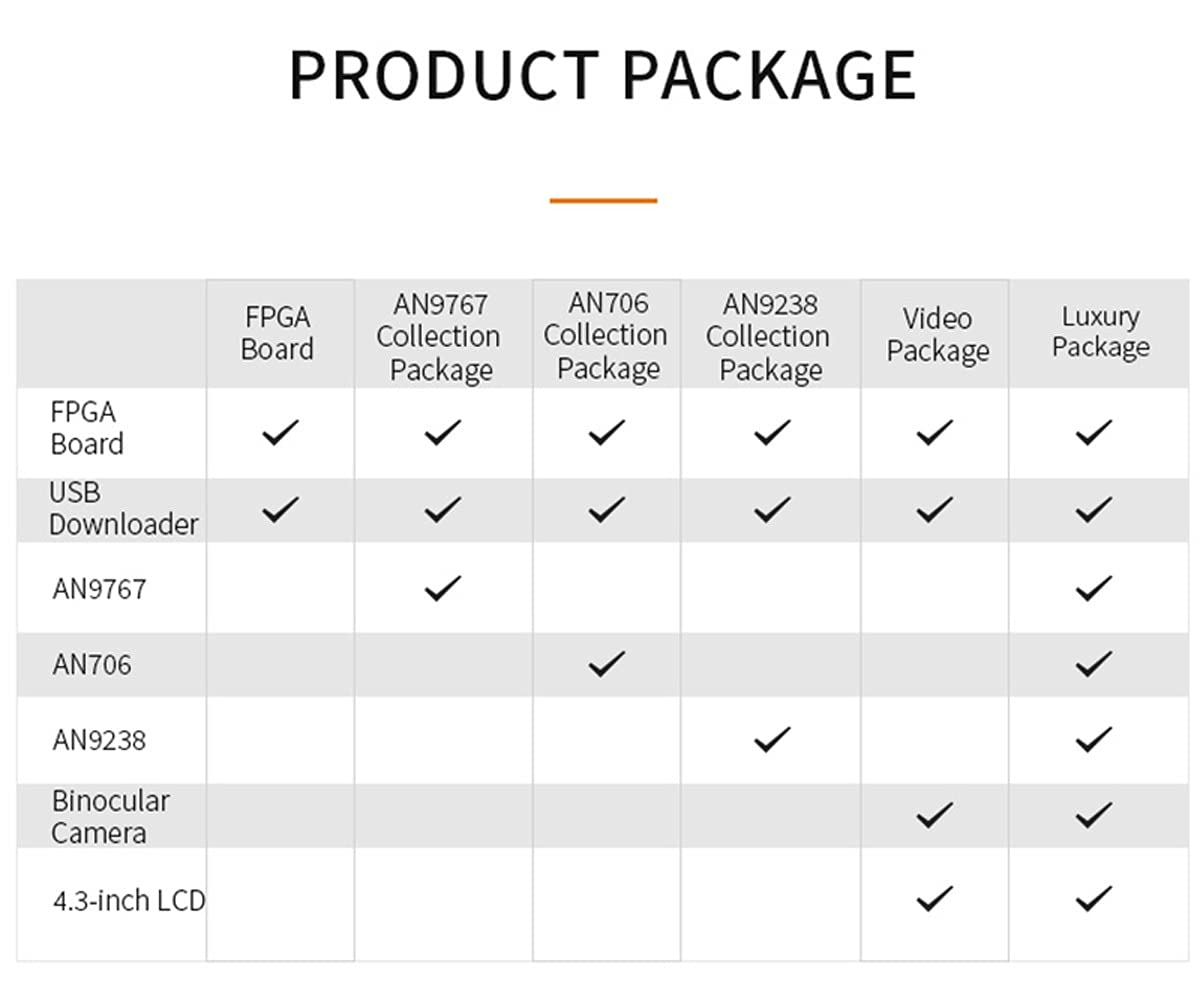

What's Included
FPGA Board 1 Heatsink 1
Mini USB Cable 1 Programming Cable 1 set
12V Power Adapter 1 PCI Bracket 1
Dimensions
Dimension Carrier: 188mm x 106mm
SOM: 60mm x 60mm
PCB SOM: 10 Layer
Carrier: 6 Layer
Independent GND and Power Layers

AX7A200 Recommended by xilinx.com

AX7A200 User Manual (PDF)

Full documentation including DXF files will be provided by CodeRobin IT.
