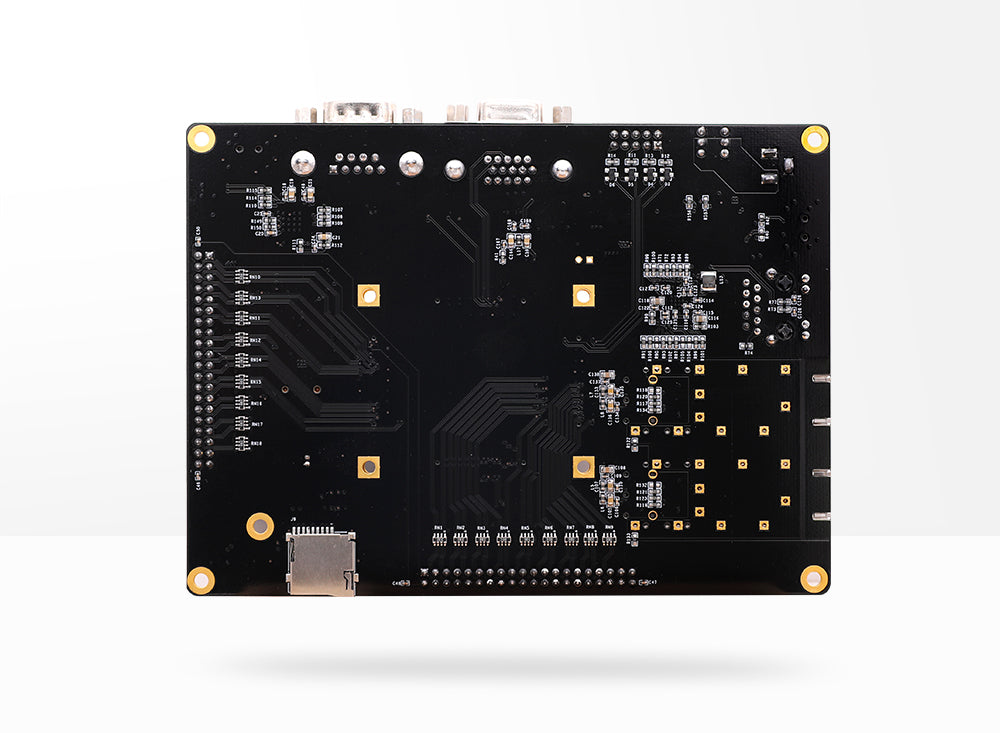

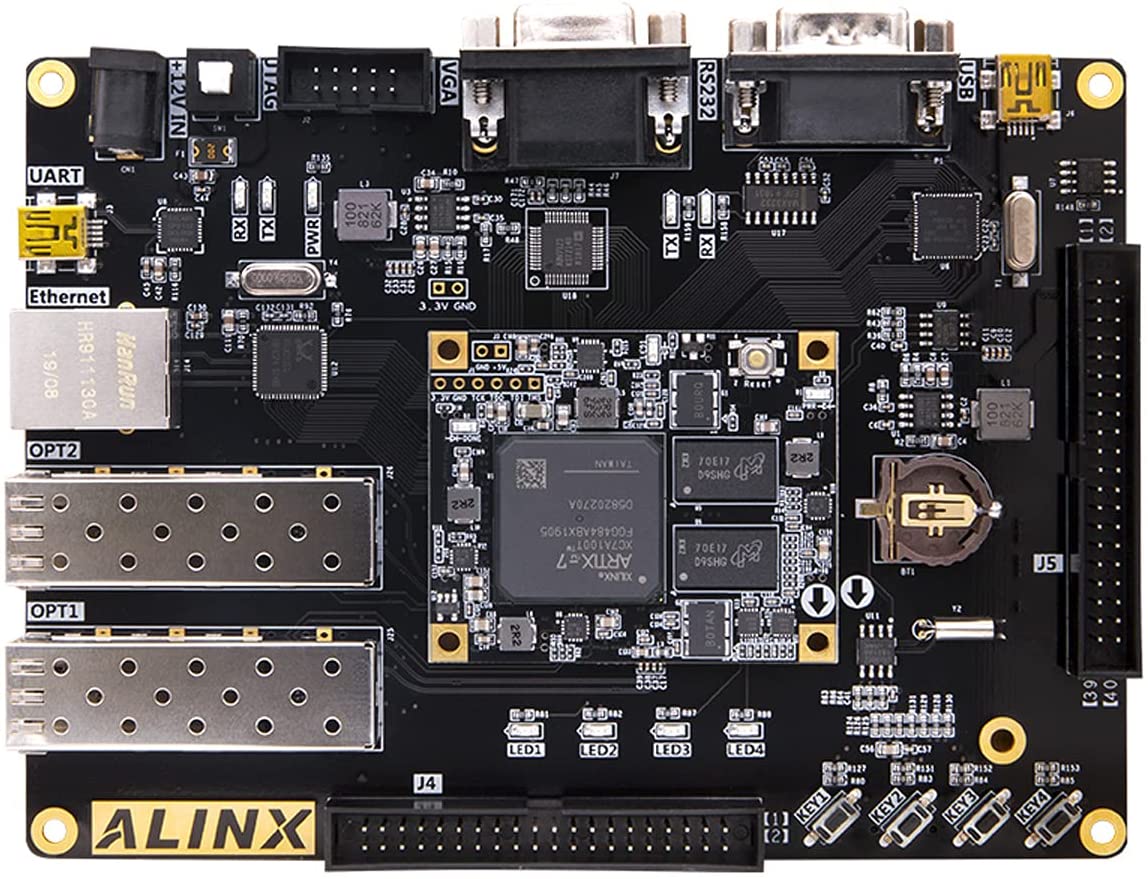

ALINX AX7102: Xilinx Artix-7 XC7A100T FPGA Development Board

Regular price
£541.99
Sale price
£541.99
Regular price
Sold out
Unit price
per

Lead time: 2 Weeks

Tax included only for the UK. Shipping calculated at checkout.

Description

Comparison

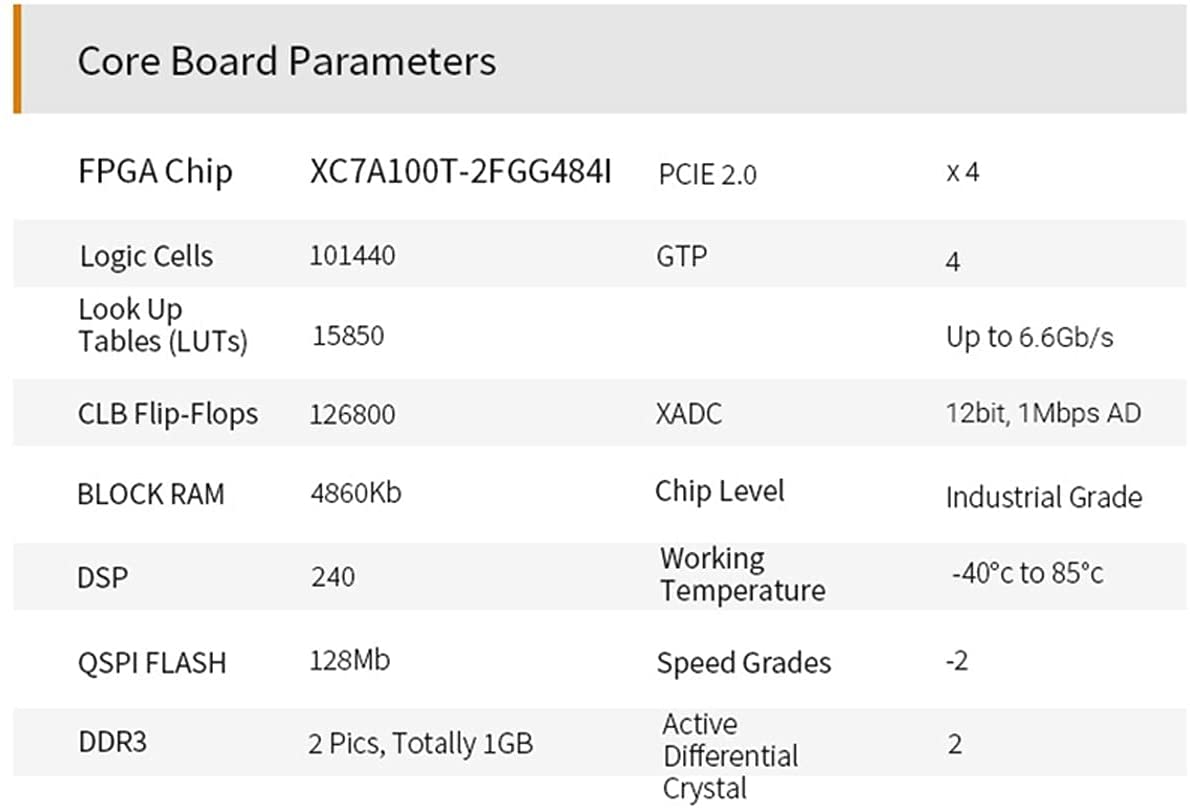

FPGA Chip XC7A100T-2FGG484I PCIE 2.0 x4
Logic Cells 101,440 GTP x4
Look Up Tables (LUTs) 15850 Up to 6.6 Gb/s
CLB Flip-Flops 126,800 XADC 12bit, 1Mbps AD
Block RAM 4860kbit Chip Level Industrial Grade
DSP Slices 240 Working Temperature -40℃ ~ 85℃
QSPI FLASH 128Mb Speed Grades -2
DDR3 2x 512MB, total 1GB Active Differential Crystal 2x
Total IOs 180 Number of Differential Pairs 48
Voltage Adjustable IOs 100

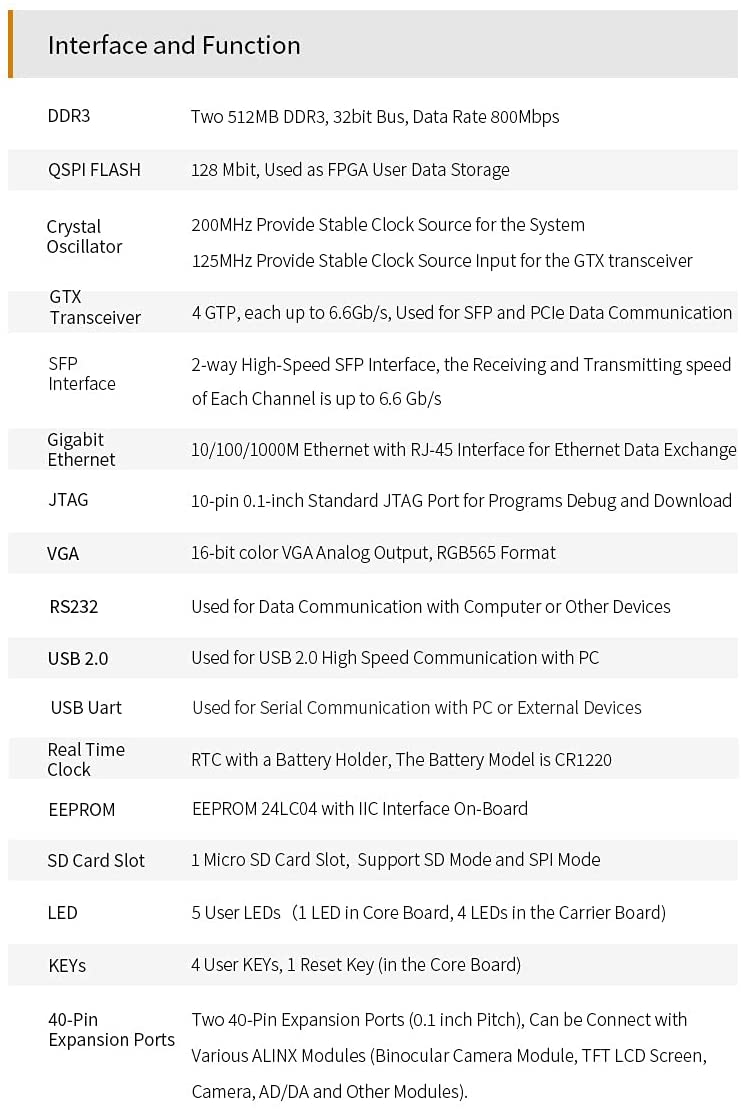

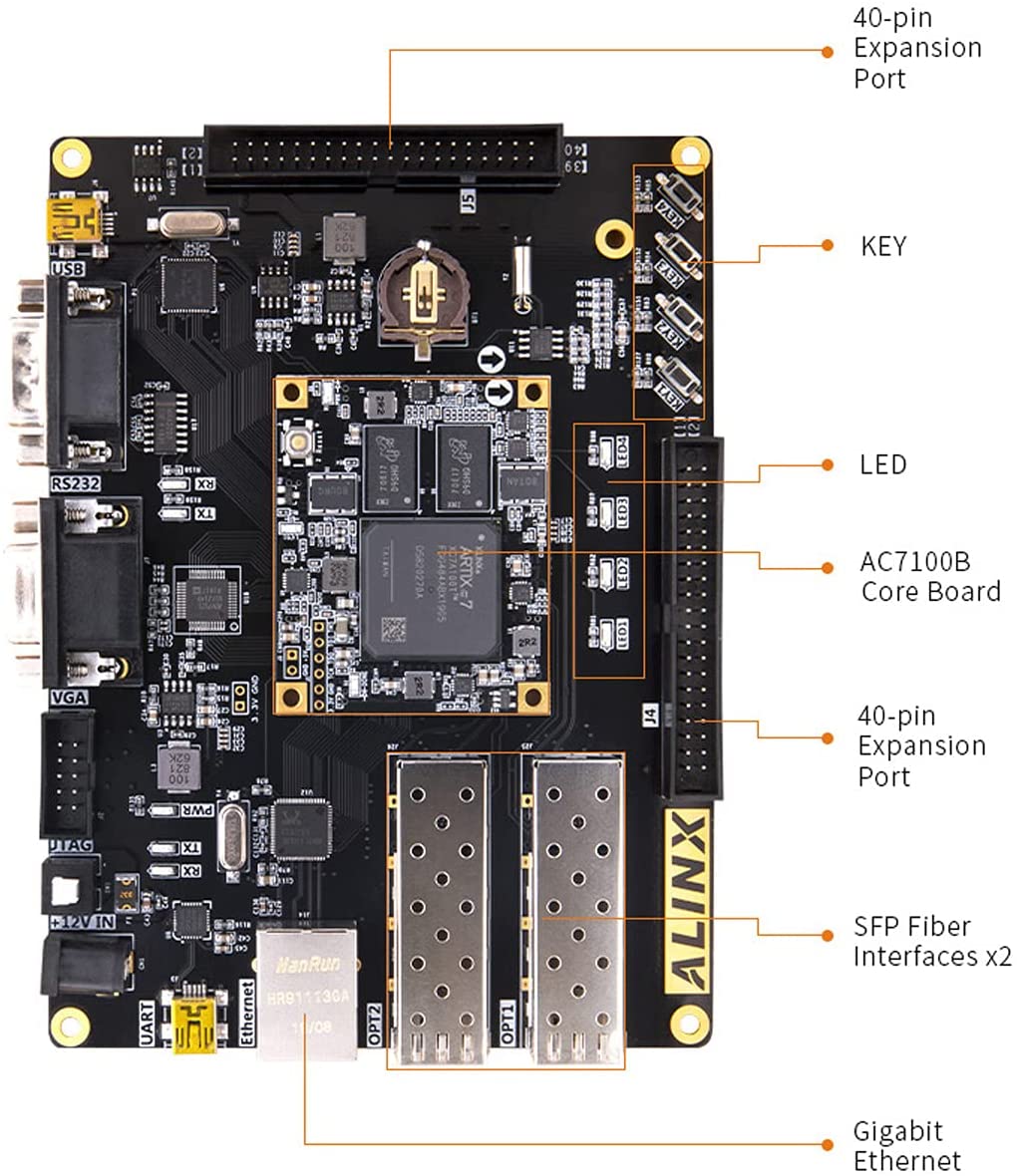

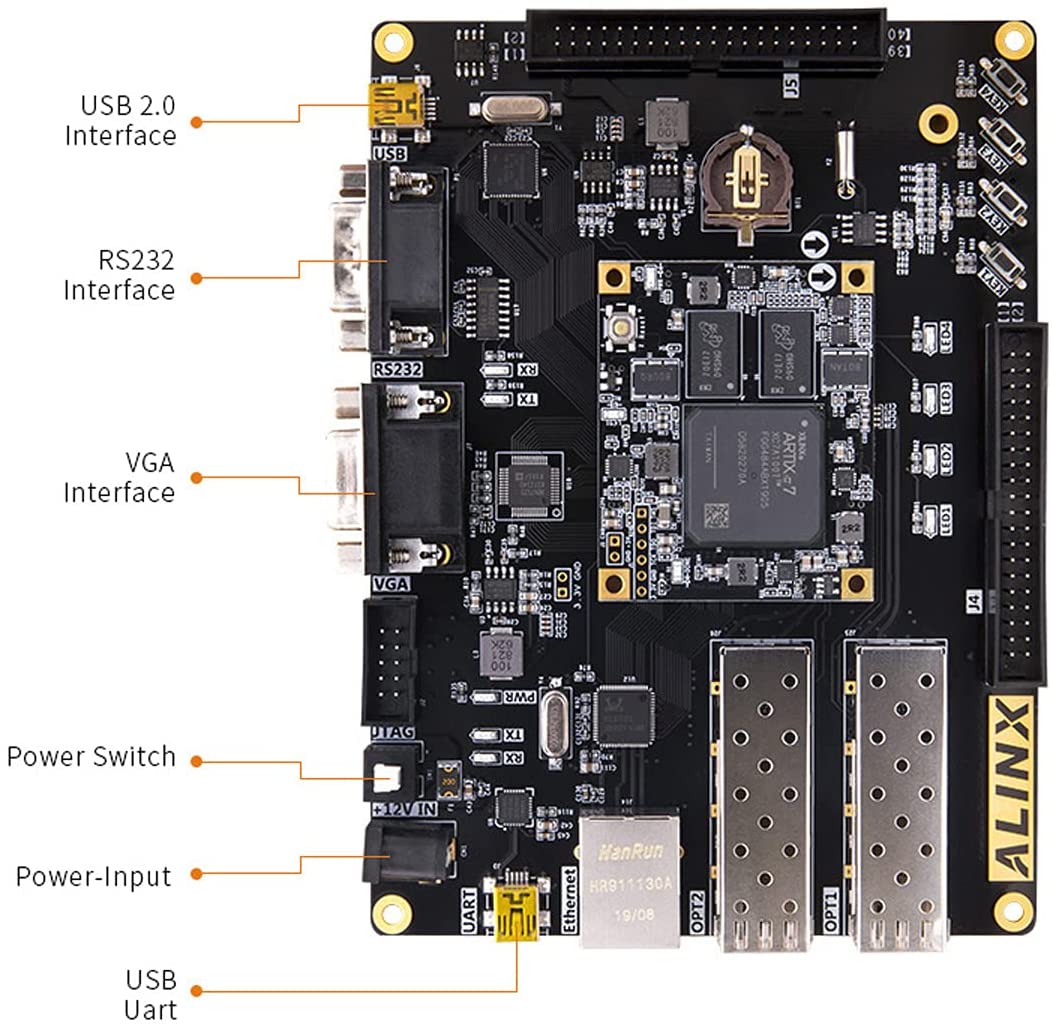

Features

DDR3 2x 512MB DDR3, 32bit Bus, Data Rate 800Mbps
QSPI FLASH 128Mbit, for user data storage
GTX Transceiver 4x GTP, each up to 6.6 Gb/s, for SFP and PCIE data communication
SFP Interface 2x 2-way High-Speed SFP interfaces, receiving and transmitting speed of each channel is up to 6.6 Gb/s
Ethernet Interface 1x 10/100/1000M Ethernet with RJ45 for data exchange
JTAG 10-pin 0.1-inch (2.54mm) Standard JTAG port for Programs Debug and Download
VGA 16-bit colour VGA Analog Output, RGB565 format
RS232 for data communication with PC or other devices
USB 2.0 1x Mini-USB port
USB UART for serial communication with PC or devices
Real Time Clock RTC backed by battery, Battery Model CR1220
Crystal Oscillator 200MHz for the PS, 125MHz for the GTX transceiver
LEDs 1 on Core Board, 4x on Carrier Board
KEYs 1 Reset, 4x User
40-pin Expansion Port 2x 40-pin Expansion Port (0.1 inch / 2.54mm pitch), fit with ALINX Binocular Camera Module, TFT LCD Screen, Camera, AD/DA, etc.
EEPROM EEPROM 24LC04 with IIC
SD Card Slot 1x micro-SD Card Slot, support SD mode and SPI mode

Power Supply

Voltage Input: +12 V DC, Max Current 2A

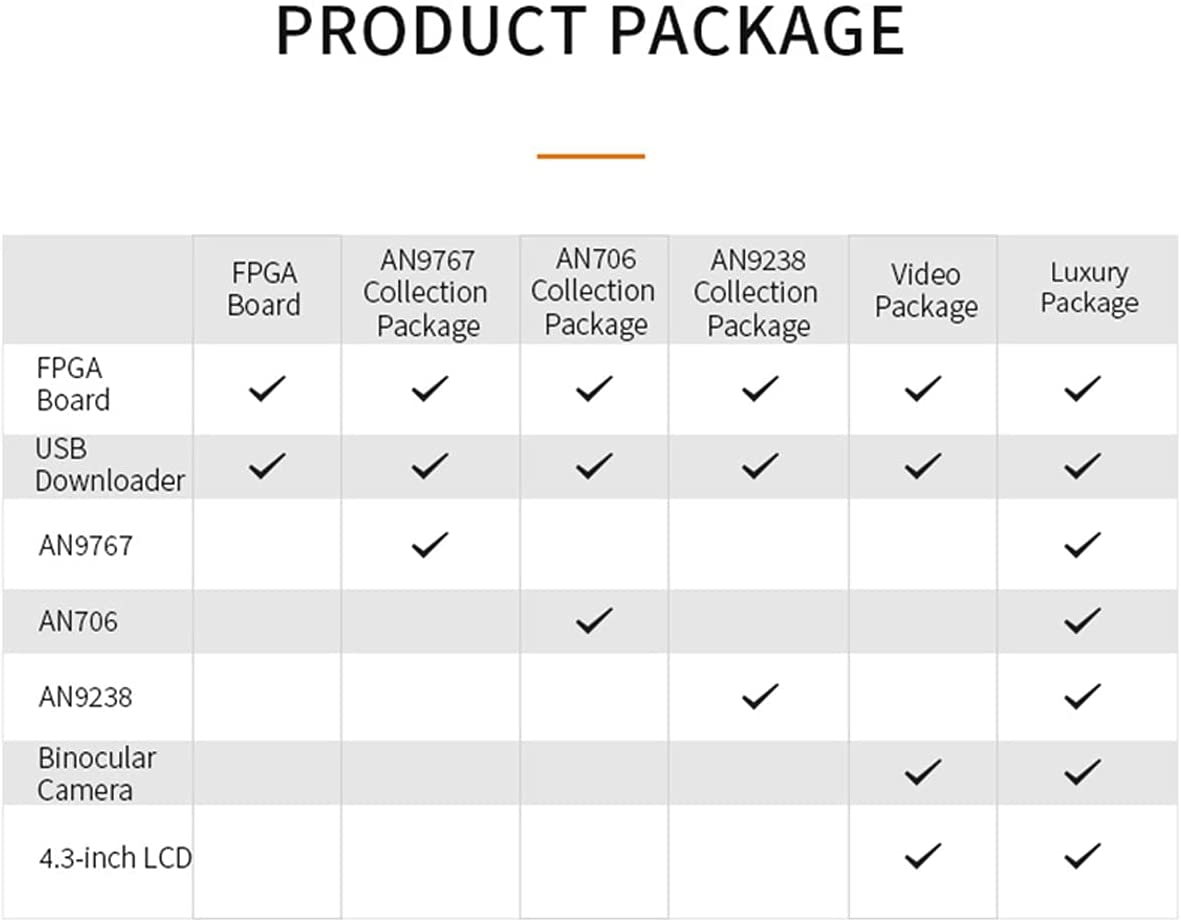

What's Included
FPGA Board 1 Heat Sink 1
Mini-USB Cable 1 USB Downloader Cable 1 Set
12V Power Adapter 1 Acrylic Panel 1

Links

AX7102 Recommended by xilinx.com

AX7102 User Manual (PDF)
