Description

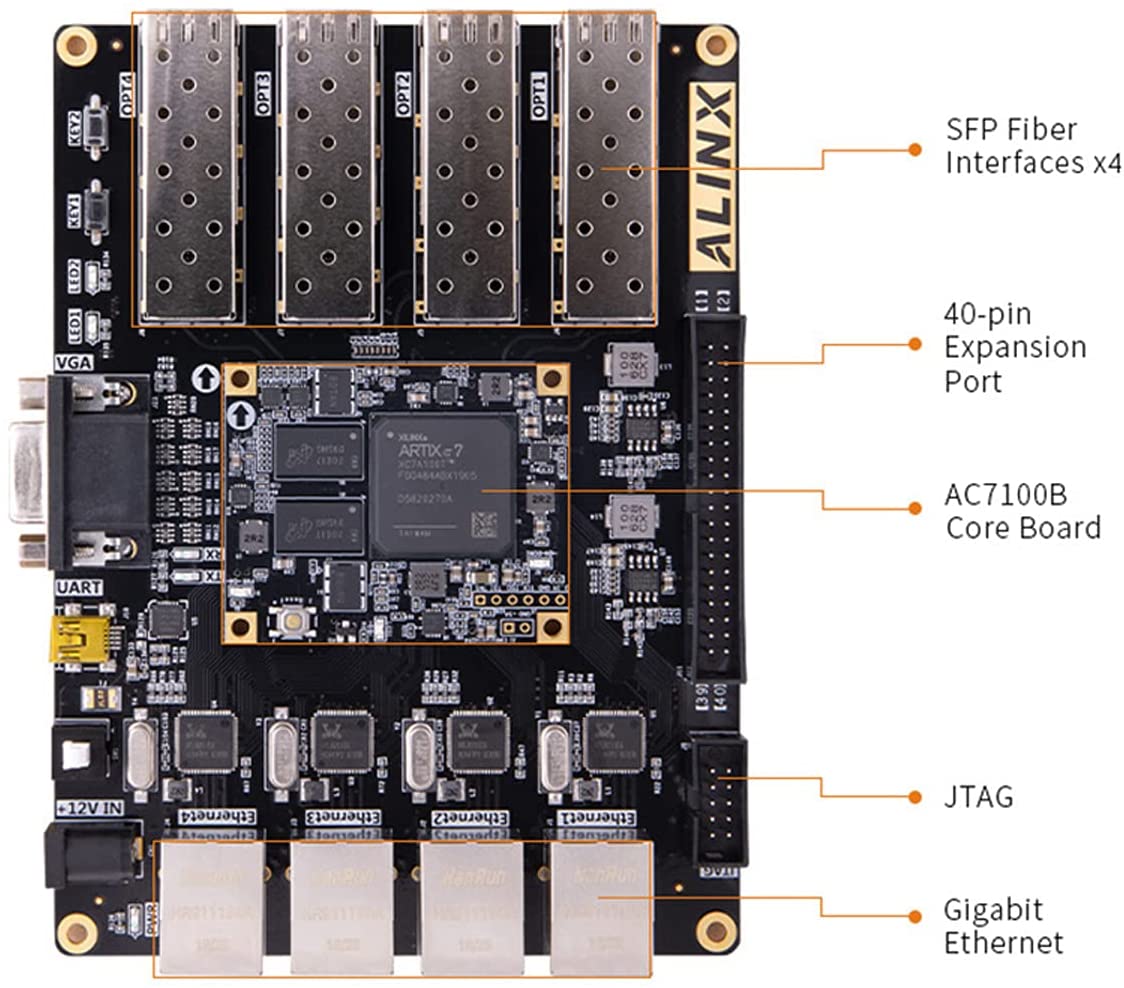

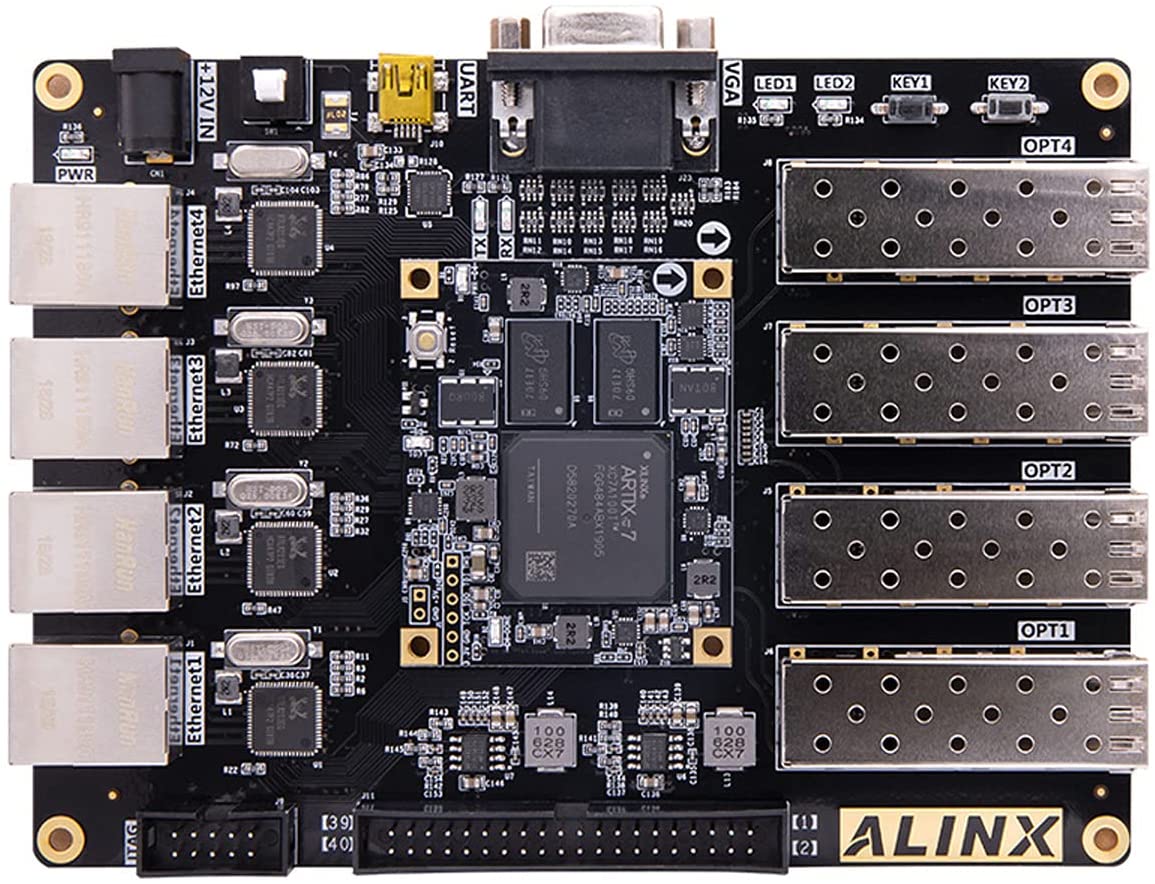

AX7101 is a Network/Communication Specialised Xilinx Artix-7 XC7A100T Development Card with 4x SFP, 4x Gigabit Ethernet, 1x VGA, and 1x 40-pin Expansion Ports, the best value for a variety of cost and power-sensitive applications including software-defined radio, machine vision cameras, and low-end wireless backhaul.

The SOM model used is AC7100B.

The AX7201 shares the same carrier board with AX7101.

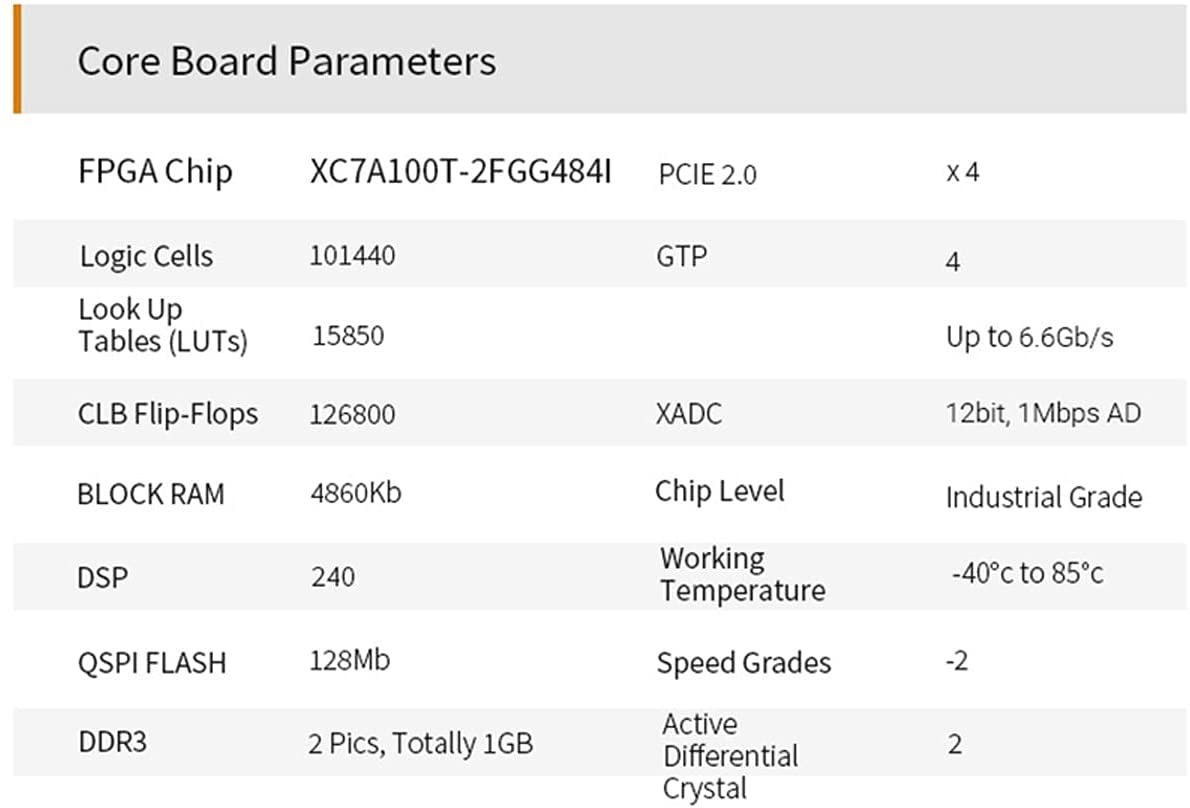

FPGA Specification
FPGA XC7A100T-2FGG484I
Speed Grade -2
Chip Level Industrial Grade
Working Temperature -40℃~85℃
Logic Cells 101,440
Slices 15,850
CLB Flip-Flops 126,800
Maximum Distributed RAM (Kb) 1,188
Block RAM/FIFO w/ ECC (36 Kb each) 135
Total Block RAM (Kb) 4,860
CMTs (1 MMCM + 1 PLL) 6
Maximum Single-Ended I/Os 300
Maximum Differential I/O Pairs 144
DSP Slices 240
PCIe® Gen2 1
Analog Mixed Signal (AMS) / XADC 1
GTP Transceivers (6.6 Gb/s Max Rate) 8

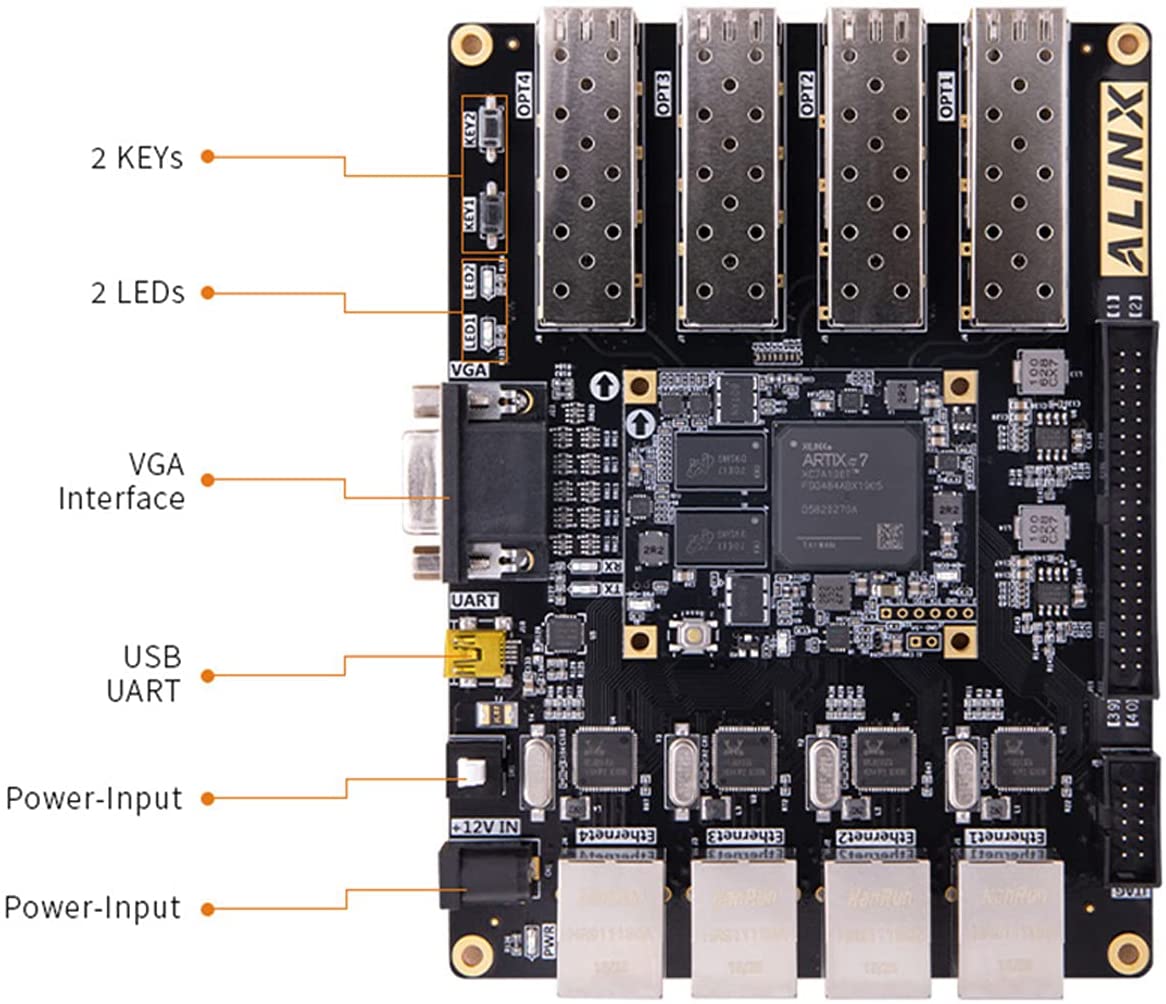

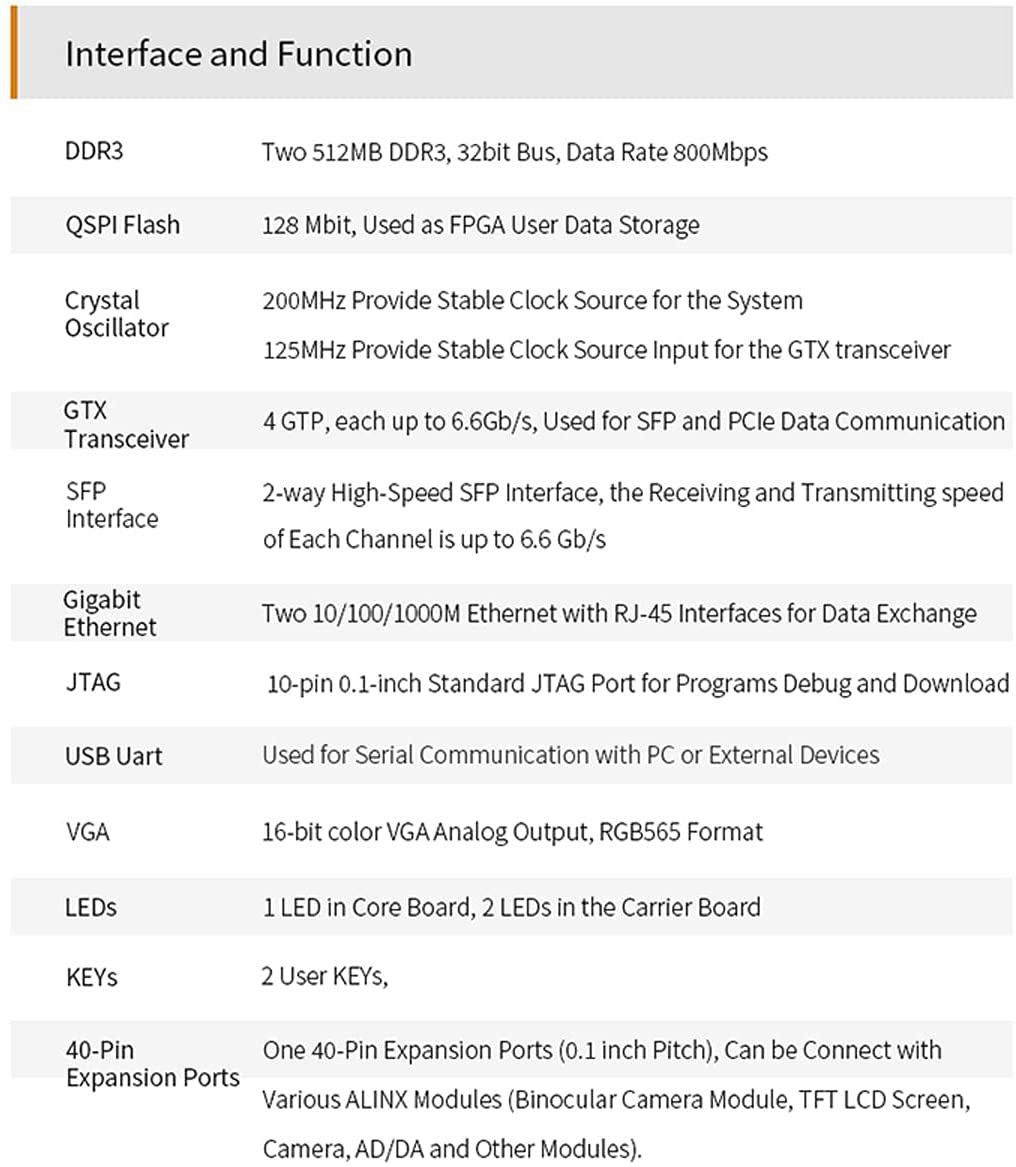

Board Features

DDR3 2 Pieces of 512MB DDR3, 1GB total, 32 bit bus width, max rate 800Mbps
QSPI Flash 1 Piece of 128Mbit, for FPGA bin file and user data storage
SFP 4x SFP, up to 6.6Gb/s each channel.
Gigabit Ethernet 4x 10/100/1000M Ethernet with RJ-45
JTAG 10-pin 2.54mm (0.1-inch) Standard JTAG port for Programs Debug and Download
VGA 1x, 16-bit colour VGA Analog Output, RGB565 format
USB UART for Serial Communication with PC/Devices
Crystal Oscillator 200MHz Differential for FPGA SYS_CLK, 125MHz Differential for GTP Transceivers.
40-pin Expansion Port 1x 40-pin Expansion Port (2.54mm / 0.1 inch pitch), fit with ALINX Binocular Camera Module, TFT LCD Screen, Camera, AD/DA, etc.
Includes: 1x 5V, 2x 3.3V, 3x GND, 34x I/O.
LED SOM: 1 PWR, 1 DONE, 1 User
Carrier: 1 PWR, 2 User, 2 for UART (TX/RX)
Push-Buttons SOM: 1 Reset; Carrier: 1 Power On/Off, 2 User
Power Supply

Voltage Input: +12 V DC, Barrel plug 2.1 x 5.5mm

Current Input: Max. Current 2 A

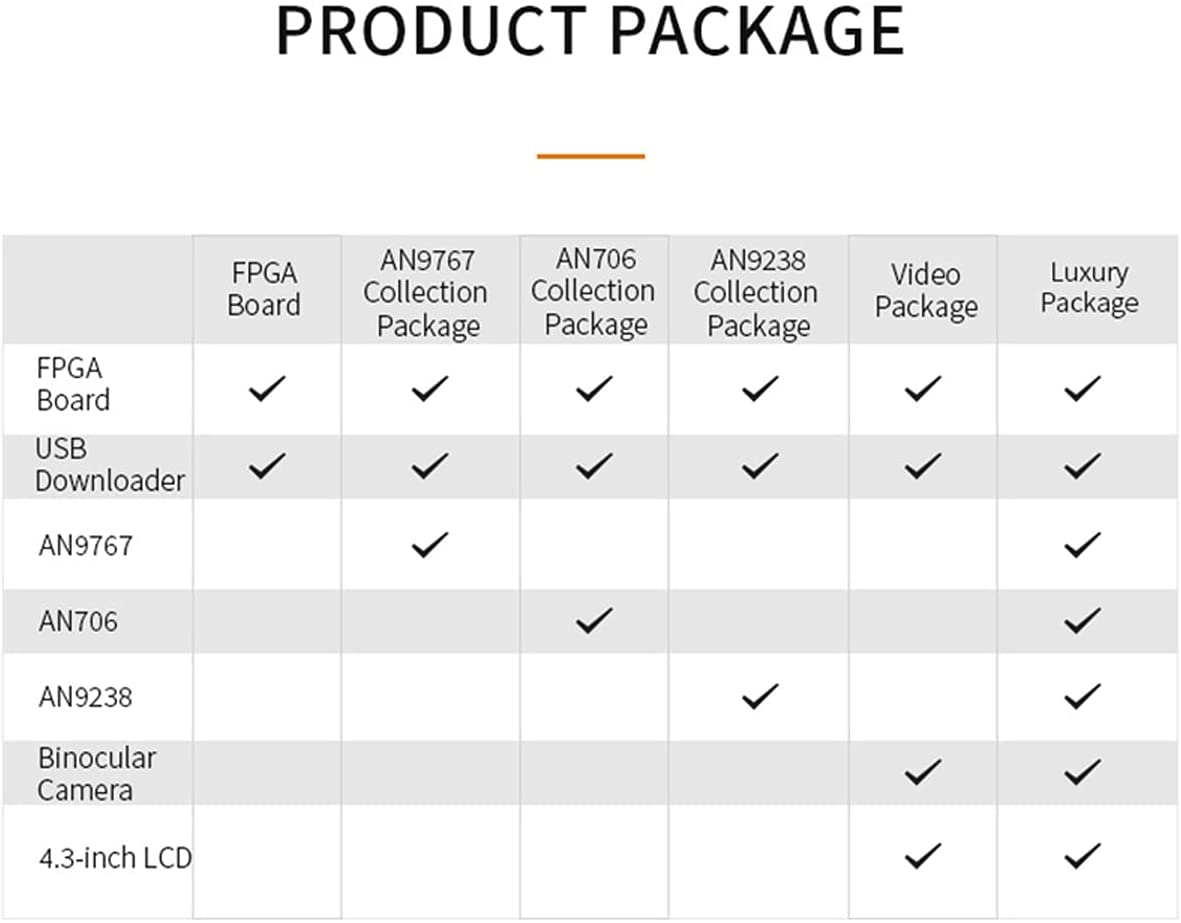

What's Included
FPGA Board 1 Heatsink 1
Mini USB Cable 1 Programming Cable 1 set
12V Power Adapter 1 Acrylic Panel (Top) 1 (installed)
Dimensions
Dimension Carrier: 150mm x 110mm
SOM: 55mm x 45mm
PCB SOM: 10 Layer
Carrier: 4 Layer
Independent GND and Power Layers

AX7101 Recommended by xilinx.com

AX7101 User Manual (PDF)

Full documentation including DXF files will be provided by CodeRobin IT.
