Description

AX7035 is an entry level Xilinx Artix-7 XC7A35T Development Board with 1x Gigabit Ethernet, 2x HDMI, 1x MIPI, and 2x 40-pin Expansion Ports, the best value for a variety of cost and power-sensitive applications including software-defined radio, machine vision cameras, and low-end wireless backhaul.

The AX7035 is a single board design. For a SOM + Carrier form, check out the AX7A035.

FPGA Specification
FPGA XC7A35T-2FGG484I
Speed Grade -2
Chip Level Industrial Grade
Working Temperature -40℃~85℃
Logic Cells 33,280
Slices 5,200
CLB Flip-Flops 41,600
Maximum Distributed RAM (Kb) 400
Block RAM/FIFO w/ ECC (36 Kb each) 50
Total Block RAM (Kb) 1,800
CMTs (1 MMCM + 1 PLL) 5
Maximum Single-Ended I/Os 250
Maximum Differential I/O Pairs 120
DSP Slices 90
PCIe® Gen2 1
Analog Mixed Signal (AMS) / XADC 1
GTP Transceivers (6.6 Gb/s Max Rate) 4

Board Features

DDR3 1 Pieces of 256MB DDR3, 16 bit bus, max rate 800Mbps
QSPI Flash 1 Piece of 128Mbit, for FPGA bin file and user data storage
Gigabit Ethernet 1x 10/100/1000M Ethernet with RJ-45
JTAG 14-pin 2.00mm Standard JTAG port for Programs Debug and Download
HDMI 1x Output, up to 1080p@60Hz
HDMI 1x Input/Output, up to 720p@60Hz
MIPI 1x, for connecting Camera Modules e.g. AN5641
USB 2.0 1x Mini-USB, for USB peripherals
USB UART for Serial Communication with PC/Devices
Crystal Oscillator 1x 50MHz Active Oscillator for FPGA.
Temperature Sensor LM75, for onboard ambient temperature
7-segment Display 6-digit 7-segment display
40-pin Expansion Port 2x 40-pin Expansion Port (2.54mm / 0.1 inch pitch), fit with ALINX Binocular Camera Module, TFT LCD Screen, Camera, AD/DA, etc.
Includes: 1x 5V, 2x 3.3V, 3x GND, 34x I/O.
EEPROM 1x 24LC04 with IIC
SD Card Slot 1x micro-SD Card Slot, support SD mode and SPI mode
LED 1 PWR, 1 DONE, 4 User, 2 for UART (TX/RX)
Push-Buttons 1 Power On/Off, 1 Reset, 4 User
Power Supply

Voltage Input: +5 V DC, Barrel plug 2.1 x 5.5mm

Current Input: Max. Current 2 A

What's Included
FPGA Board 1
Mini USB Cable 1 Programming Cable 1 set
5V Power Adapter 1 Acrylic Panel (Top) 1 (installed)
Dimensions
Dimension 130mm x 90mm
PCB 8 Layer
Independent GND and Power Layers

AX7035 Recommended by xilinx.com

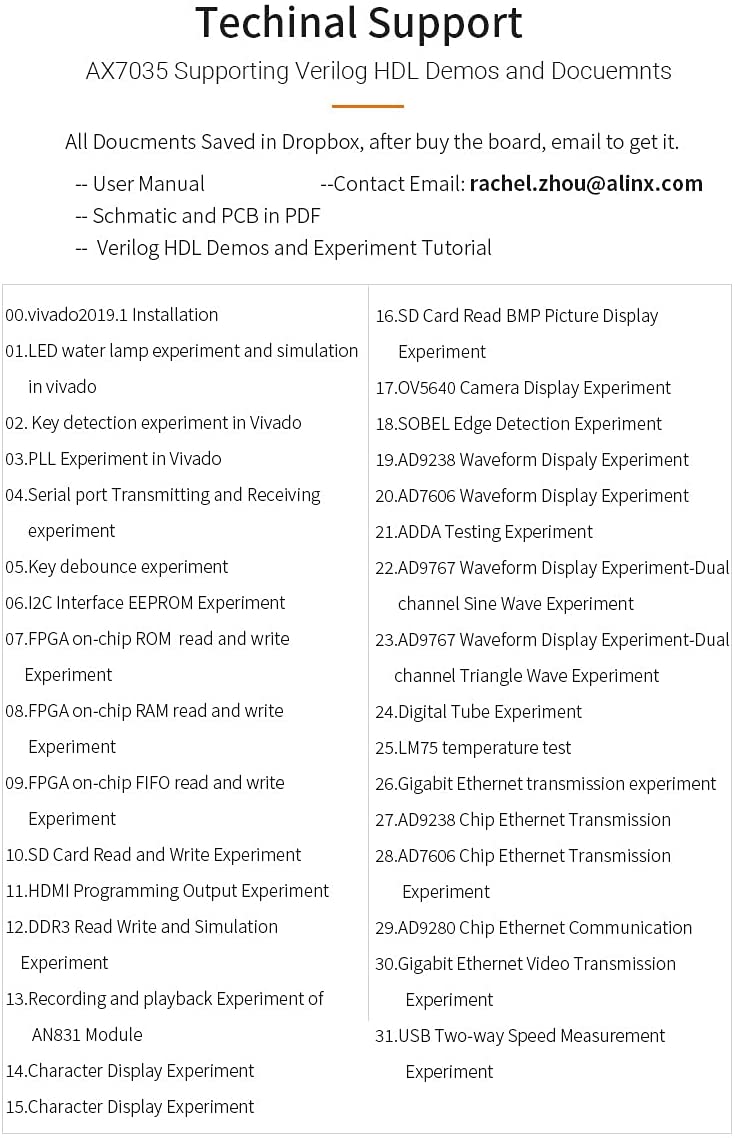

AX7035 User Manual (PDF)

Full documentation including DXF files will be provided by CodeRobin IT.
