Description

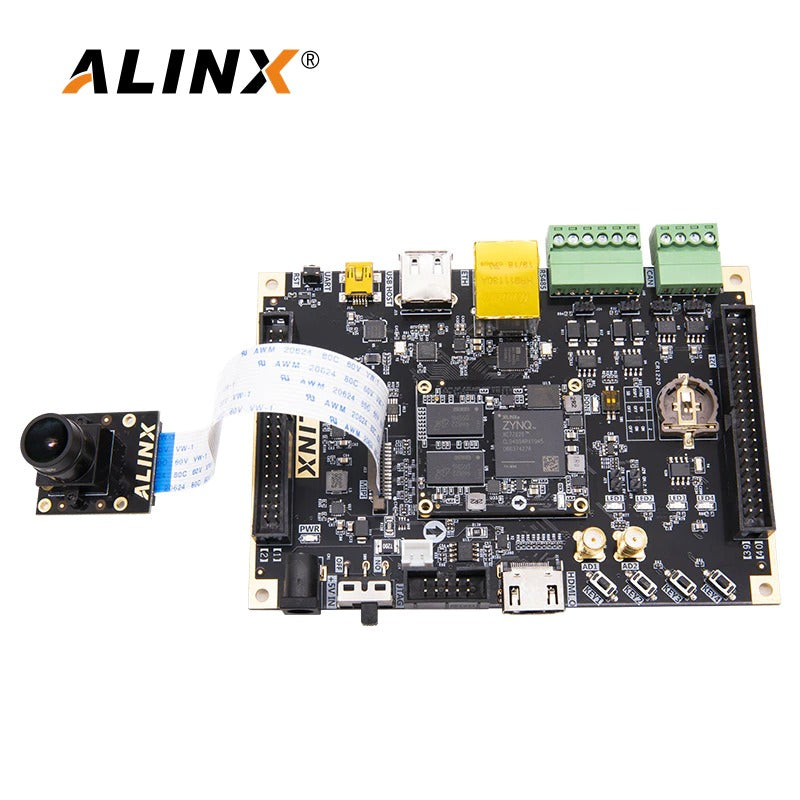

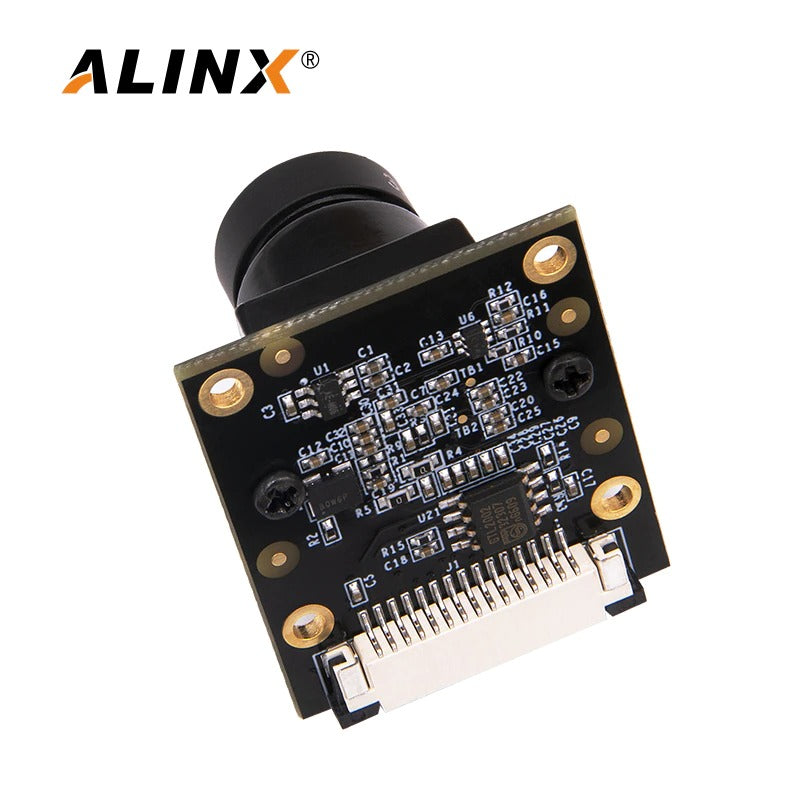

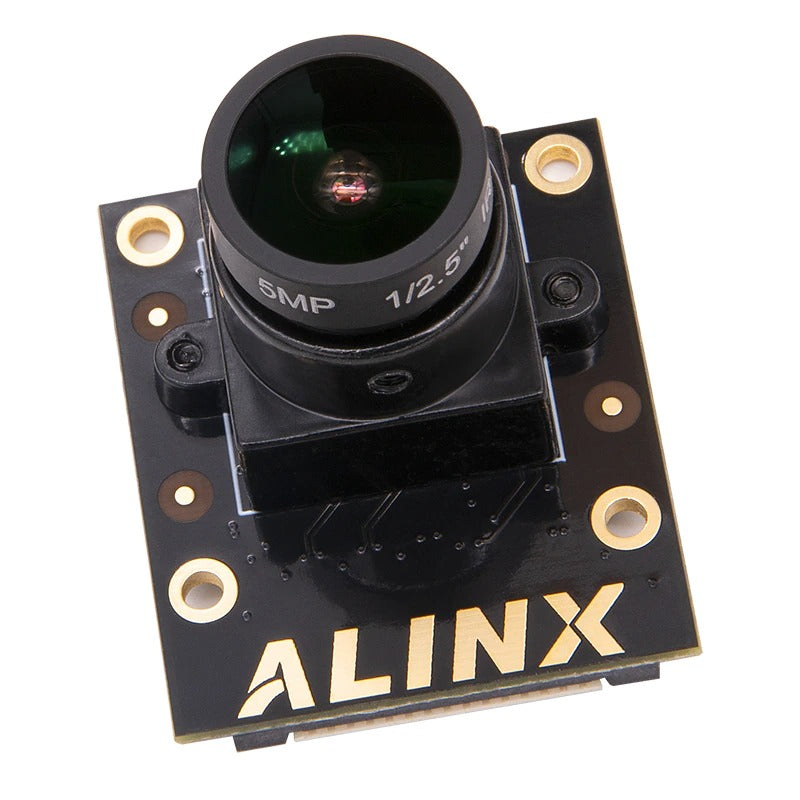

ALINX AN5641 is a single 5MP OV5640 2-Lane MIPI Camera Module, with 1x OMNIVISION 1/4" color CMOS QSXGA (5 megapixel) image sensor with OmniBSI™ technology, supports Manual focus, AEC and AWB, by 1x 15-pin 1.0mm pitch FPC interface to the FPGA Development Boards.
For a 4-Lane OS05A20 MIPI Camera Module, check our AN5020.
For a OV5640 with DVP interface, check the AN5640.
For a Binocular OV5640 with 40-pin interface, check the AN5642.
Model Specification

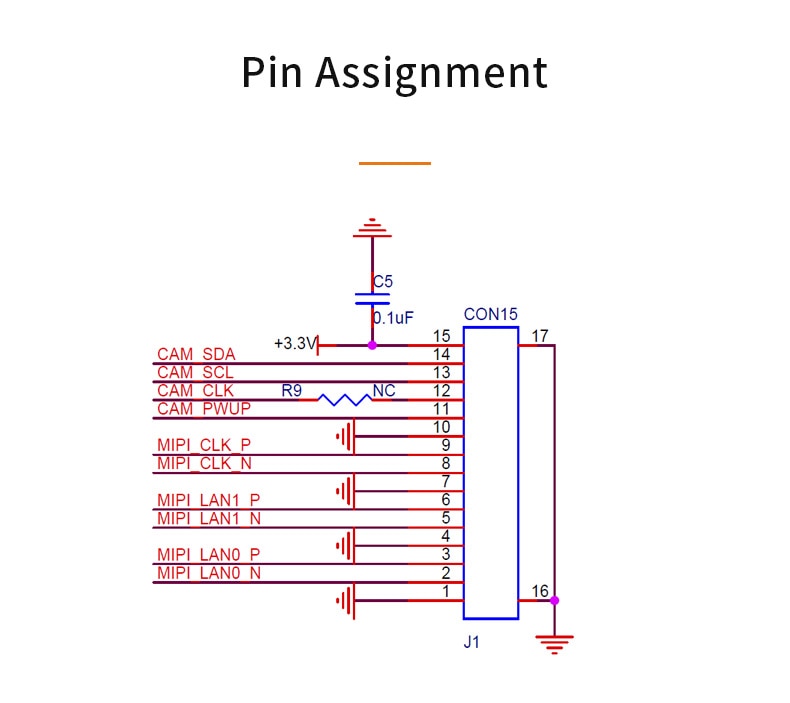

| CMOS IC | OMNIVISION OV5640 |
| Images sizes | 5 megapixel |
| Active array size | 2592 x 1944 |
| Optical size | 1/4" |
| Lens | M12 (S-Mount), 3.6mm Focal Length, 80°~96° Angle of view |
| maximum image transfer rate | - QSXGA(2592x1944): 15 fps - 1080p: 30 fps - 1280x960: 45 fps - 720p: 60 fps - VGA(640x480): 90 fps - QVGA(320x240): 120 fps |
| Output formats | RAW RGB, RGB565/555/444, CCIR656, YUV422/420, YCbCr422, and compression |
| Camera Features | Manual Focus, AEC, AWB |
| Module includes | Power and Clock circuits |
| Module Interface | 1x 15-pin 1.0mm pitch FPC interface, 2-Lane MIPI |
| Operating temperature | -30℃~70℃, stable at 0℃~50℃ |
What's Included
| Module | 1 | MIPI Cable | 1 |
Dimensions
| Dimension | 35 x 24 x 28mm |
Resources & Downloads
ALINX AN5641 User Manual (PDF)
Full documentation including Schematics, Demo projects (if applicable) will be provided by CodeRobin.
