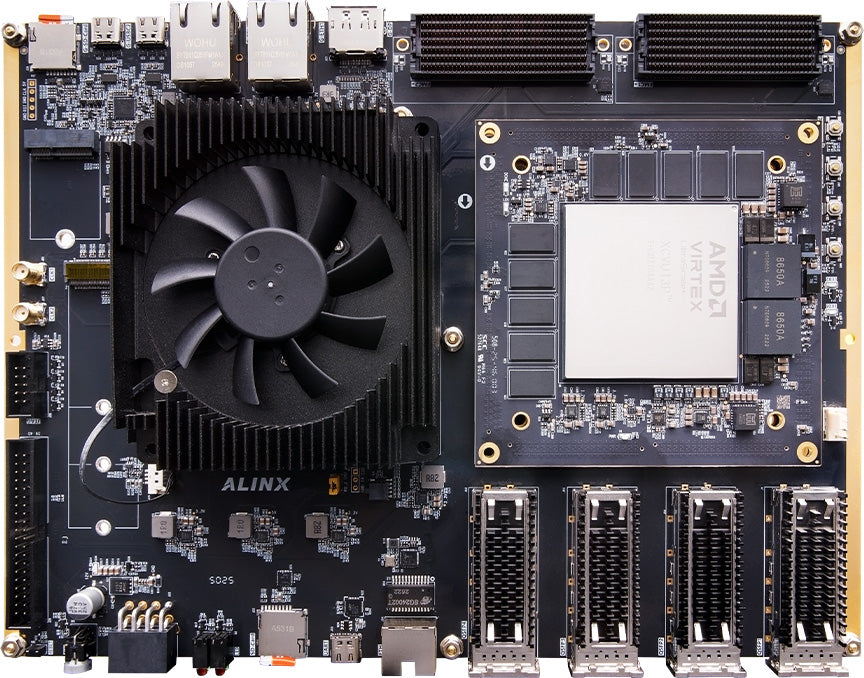

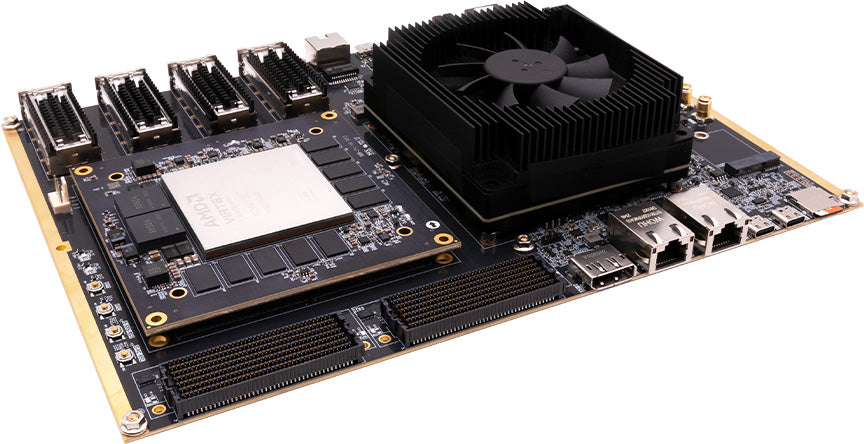

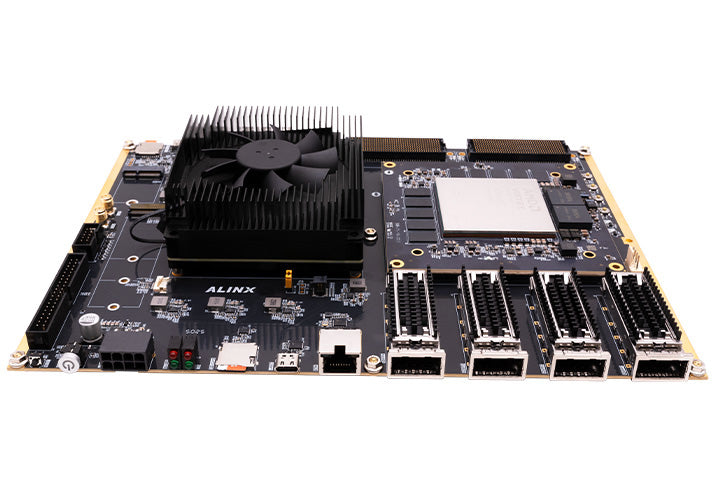

Description
HEA13 is a flagship Heterogeneous Computing offering with XCVU13P FPGA, 4x 100G QSFP28, 2x FMC+, NVIDIA Jetson AGX Orin / Thor T5000 module enabling high signal processing bandwidth, rich expandability. Ideal for LLM, Physical AI, Edge AI, Robotics, high-end ASIC/SoC prototyping and verification, radar/communication real-time signal processing.
The SOM model is ACVU13. For a High Performance XCVU13P FPGA Development Board also using this SOM, check our AXVU13G.
FPGA Specification
| SOM | ACVU13 |
| FPGA | XCVU13P-2FHGB2104I |
| Speed Grade | -2 |
| Chip Level | Industrial Grade |
| Working Temperature | -40℃~85℃ |
| System Logic Cells (K) | 3,780 |
| CLB Flip-Flops (K) | 3,456 |
| CLB LUTs (K) | 1,728 |
| Max. Distributed RAM (Mb) | 48.3 |
| Total Block RAM (Mb) | 94.5 |
| UltraRAM (Mb) | 360.0 |
| DSP Slices | 12,288 |
| Peak INT8 DSP (TOP/s) | 38.3 |
| PCIe® Gen3 x16 | 4 |
| 150G Interlaken | 8 |
| 100G Ethernet w/ KR4 RS-FEC | 12 |
| GTY 28.21 Gb/s Transceivers | 76 |
| Max. Single-Ended HP I/Os | 702 |

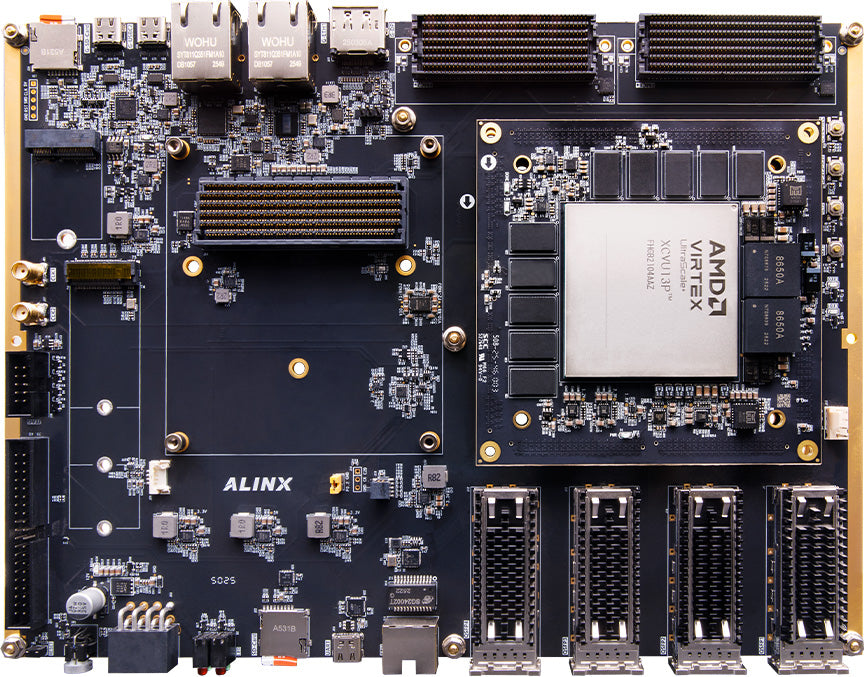

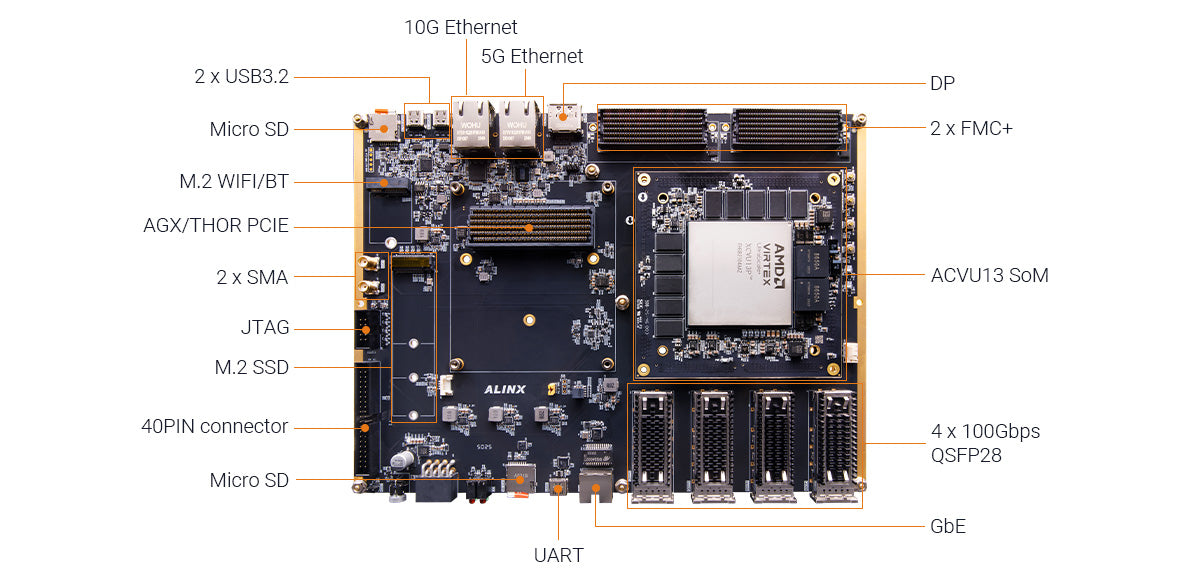

Board Features
| DDR4 | 2 Groups of 5x 2GB, total 20GB, 80bit Bus, Data Rate 2666Mbps |
| QSPI Flash | 2x 128MB, for FPGA bin file and user data storage |
| Crystal Oscillator | 2x 200MHz Differential Crystal, Reference Clock for the FPGA and DDR4 1x high-precision, low-jitter programmable multi-channel clock source with 14 clock channels, reference for GTY. |
| FMC+ | 2x FMC+, compatible with FMC+ and FMC |
| Gigabit Ethernet | 1x 10/100/1000M Ethernet with RJ45 for data exchange, RGMII to FPGA |
| QSFP28 | 4x QSFP28 100G, each to 4x GTY with channel speed up to 25Gbps |
| SD Card Slot | 1x micro SD Card Slot, support SD Mode and SPI Mode |
| SMA | 2x SMA, for Ext Clock or I/O IN. |
| USB UART | Type-C, for Serial Communication with PC/Devices |
| JTAG | 10-pin 2.54mm Standard JTAG port for Program Debug and Download |
| LED | SOM: 1 DONE, 1 Power; Carrier: 1 VU13_STATE, 2 User |
| Push-Buttons | 1 Power On/Off, 1 Reset, 2 User |
Nvidia Jetson Module Options
| Jetson AGX Orin 32GB Module | 200 TOPS (INT8), 32GB LPDDR5 (Purchase separately) |
| Jetson AGX Orin 64GB Module | 275 TOPS (INT8), 64GB LPDDR5 (Purchase separately) |
| Jetson Thor 128GB Module | 2070 TOPS (FP4), 128GB LPDDR5x (Included with HEA13) |
Nvidia Jetson AGX Orin / THOR Features
| USB 3.2 | 2x, Type-C, supports HOST, SLAVE, OTG modes |
| Gigabit Ethernet | 1x 10G, RJ45, only for AGX module 1x 5G, RJ45, only for THOR module |
| DP | 1x DisplayPort Output, up to 4K@30Hz or 1080P@60Hz |
| SD Card Slot | 1x micro SD Card Slot, for AGX Orin / Thor OS Image and file system |
| M.2 SSD | 1x M.2 KEY-M, for NVME SSD, up to 5Gbps per channel |
| M.2 Wifi/BT | 1x M.2 KEY-E, for WiFi/BT module, up to 5Gbps per channel |
| 40-pin Expansion Port | for AGX Orin / Thor GPIO or Expansion modules |
| PCIE3.0 | 1x PCIE3.0 x8, for AGX Orin / Thor communication with FPGA, via 699-pin board-to-board connector |
| UART | 1x Uart 3-pin 2.54mm, for AGX Orin / Thor debug |
| LED | 1 User |
| Push-Buttons | 1 SYS_RESET, 1 FORCE_RECOVERY |
Power Supply
Voltage Input: +12 V DC, PCIE 8-pin
Current Input: Max. Current 25 A
What's Included
| FPGA Board | 1 | DC Fan (installed) | 1 |
| Mini USB Cable | 1 | Programming Cable | 1 set |
| 12V Power Adapter | 1 | SD Card | 1 |
| SMA cable | 1 |

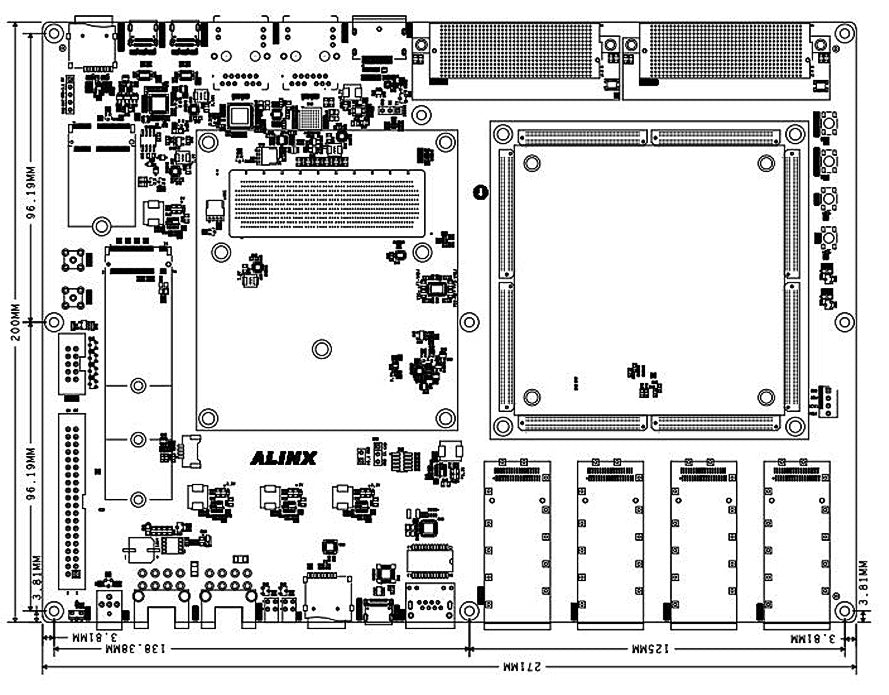

Dimensions
| Dimension | 271.00mm x 200.00mm |
| PCB | Independent GND and Power Layers |
Resources & Downloads
HEA13 User Manual (PDF, Simplified Chinese)
Full documentation including Schematics, Demo projects (if applicable) will be provided by CodeRobin.
