Description

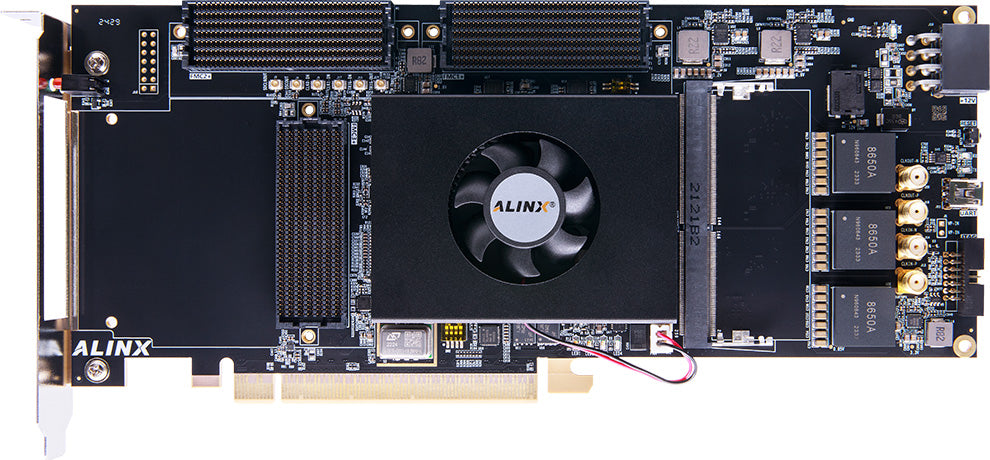

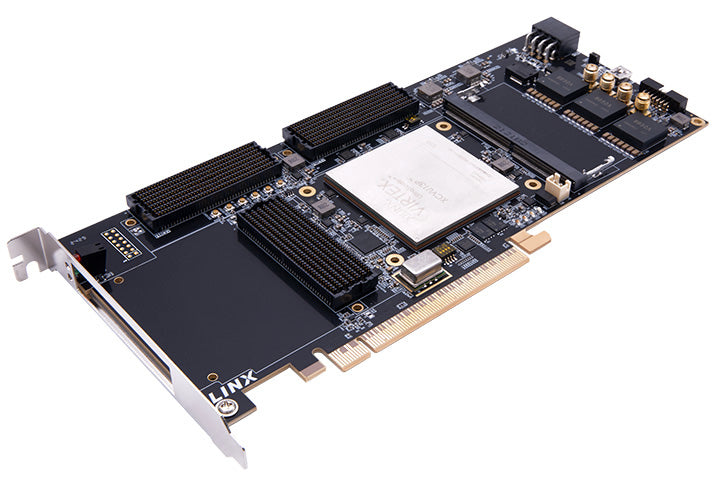

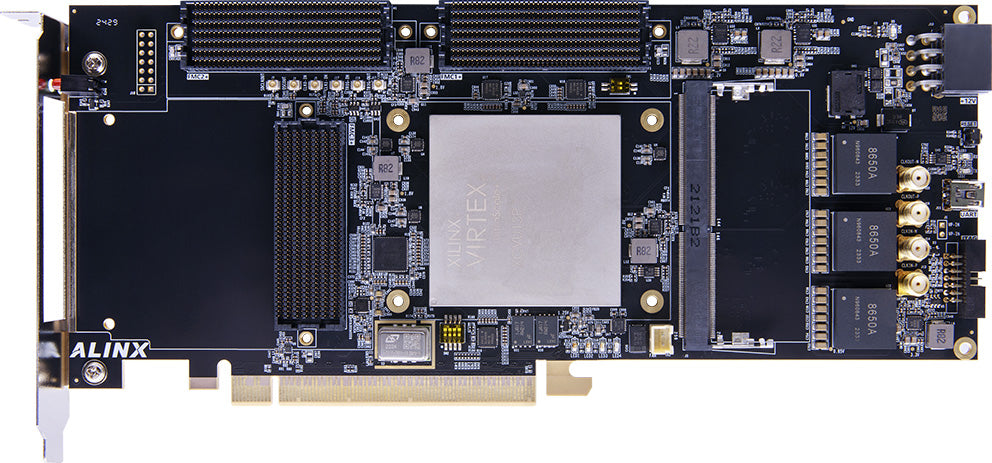

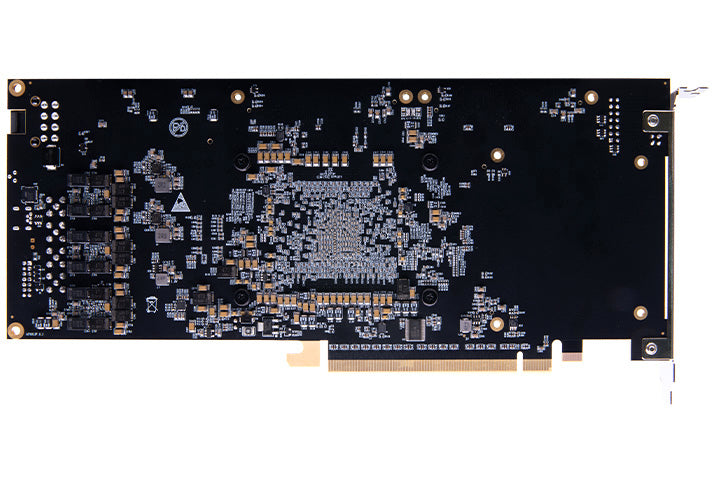

AXVU13P is a flagship High Performance PCIE3.0 x16 Card with XCVU13P FPGA, 3x HPC FMC+, 1x SODIMM, enabling high signal processing bandwidth, rich expandability. Ideal for data center AI/HPC acceleration, 100G+ Network, high-end ASIC/SoC prototyping and verification, radar/communication real-time signal processing and other ultra-large-scale, low-latency, high-bandwidth advanced computing and communication applications.
FPGA Specification
| FPGA | XCVU13P-2FHGB2104I |
| Speed Grade | -2 |
| Chip Level | Industrial Grade |
| Working Temperature | -40℃~85℃ |
| System Logic Cells (K) | 3,780 |
| CLB Flip-Flops (K) | 3,456 |
| CLB LUTs (K) | 1,728 |
| Max. Distributed RAM (Mb) | 48.3 |
| Total Block RAM (Mb) | 94.5 |
| UltraRAM (Mb) | 360.0 |
| DSP Slices | 12,288 |
| Peak INT8 DSP (TOP/s) | 38.3 |
| PCIe® Gen3 x16 | 4 |
| 150G Interlaken | 8 |
| 100G Ethernet w/ KR4 RS-FEC | 12 |
| GTY 28.21 Gb/s Transceivers | 76 |
| Max. Single-Ended HP I/Os | 702 |

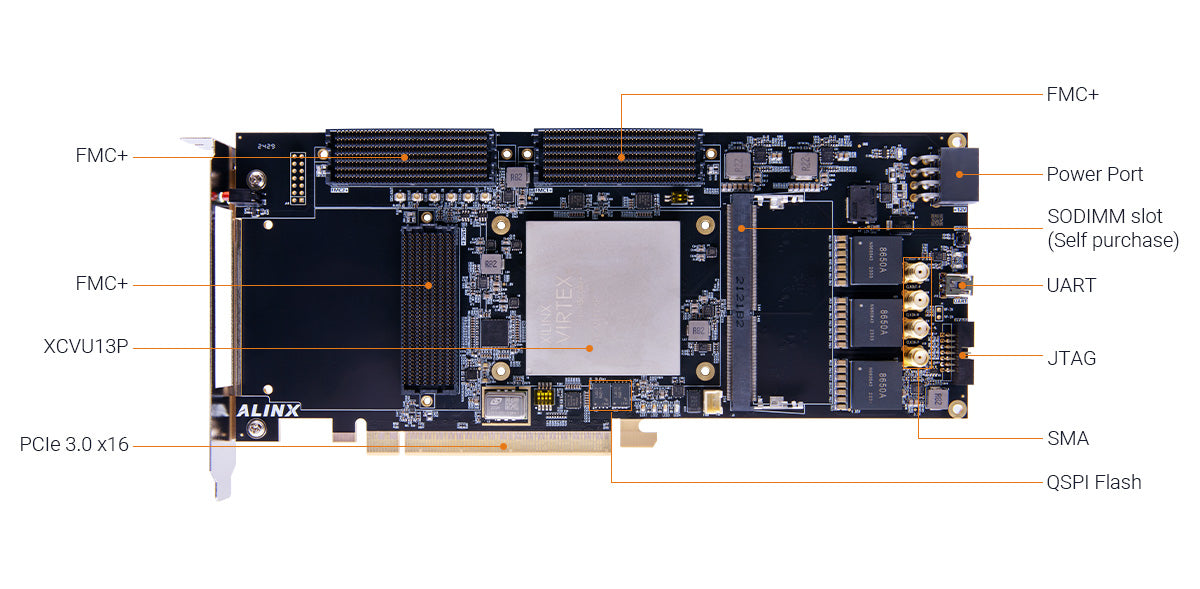

Board Features
| DDR4 | 1x SODIMM socket supports up to 16GB. |
| QSPI Flash | 2x 128MB, for FPGA bin file and user data storage |
| Crystal Oscillator | 2x 200MHz Differential Crystal, Reference Clock for the FPGA and DDR4 |
| FMC+ | 3x FMC+, compatible with FMC+ and FMC |
| PCI Express 3.0 | x16 lane, up to 8G Baud each lane |
| SMA | 2x SMA Differential I/O, connected to FPGA HPIO, for customer differential signal I/O testing. |
| DIP Switch | 1x 4-bit, for simple testing. |
| USB UART | for Serial Communication with PC/Devices |
| JTAG | 14-pin 2.00mm Standard JTAG port for Program Debug and Download |
| Expansion Port | 1x 14-pin 2.54mm port, connected to FPGA HPIO (10 pin) |
| LED | 8x LEDs: 1 Power, 1 DONE, 4 User, 2 UART (TX/RX); 2 User (on PCI Bracket) |
| Push-Buttons | 1x: Reset |
Power Supply
Voltage Input: +12 V DC, PCIE slot or PCIE 8-pin
Current Input: Max. Current 15 A
What's Included
| FPGA Board | 1 | DC Fan (installed) | 1 |
| Mini USB Cable | 1 | Programming Cable | 1 set |
| 12V Power Adapter | 1 | PCI Bracket | 1 |
Dimensions

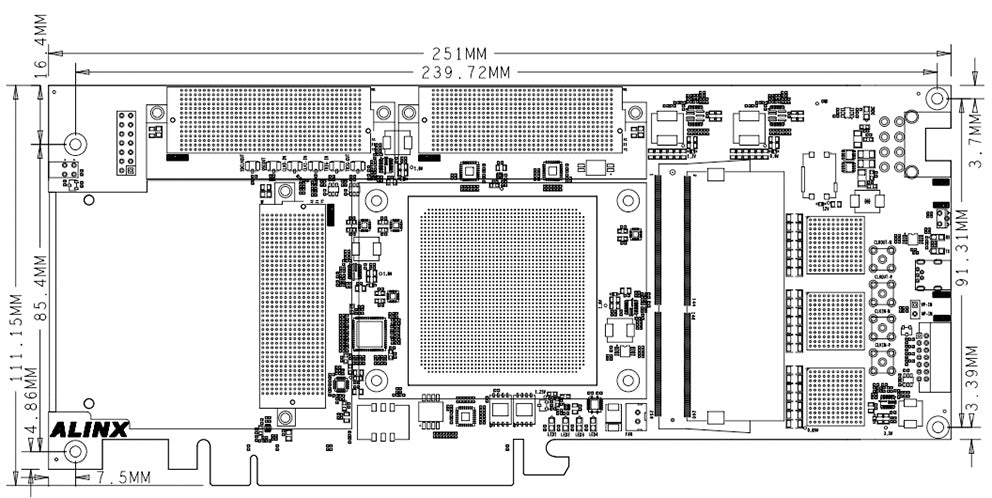

| Dimension | 251.00mm x 111.15mm |
| PCB | 18 Layer, Independent GND and Power Layers |
Resources & Downloads
Full documentation including Schematics, Demo projects (if applicable) will be provided by CodeRobin.
