Description

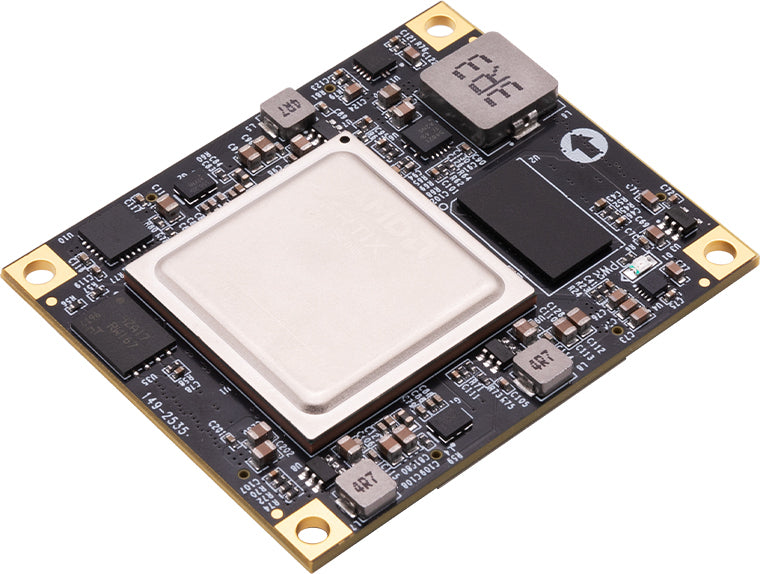

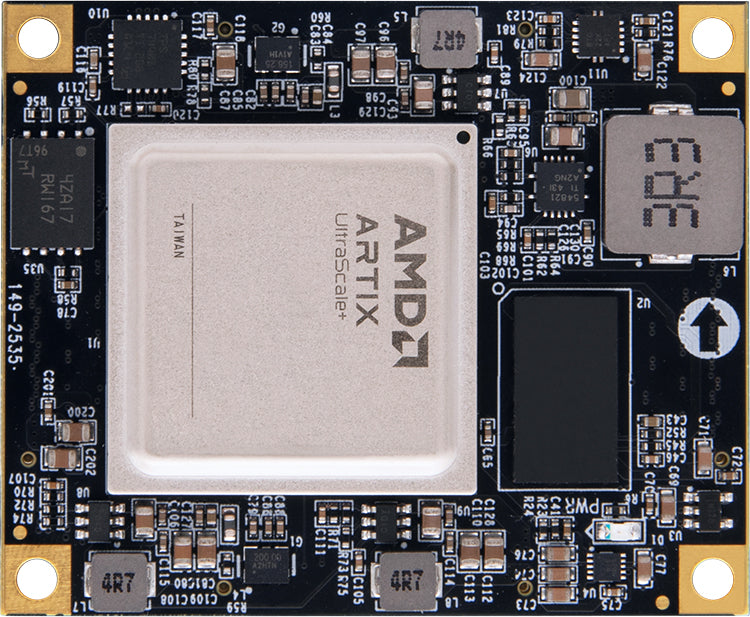

ACAU25 is a top range Xilinx Artix UltraScale+ FPGA SOM, equipped with XCAU25P, 1GB DDR4 memory, QSPI Flash, Clock sources, and Power. Through Four 80-pin I/O connectors on the backside, 12x 16.3 Gb/s GTY Transceivers and 3.3V / 1.8V SelectIO are exposed, great for your Industrial applications.
We have the following Carrier Board designed for this SOM:
- AXAU25: 1x HPC FMC, 1x Gigabit Ethernet, 1x PCIE Gen3 x4
For XCAU15P, check our ACAU15 SOM.
FPGA Specification
| FPGA | XCAU25P-2FFVB676I |
| System Logic Cells (K) | 308 |
| CLB Flip-Flops (K) | 282 |
| CLB LUTs (K) | 141 |
| Dist. RAM (Mb) | 4.7 |
| Total Block RAM (Mb) | 10.5 |
| 36K Block RAM Blocks | 300 |
| Clock Management Tiles (CMTs) | 4 |
| DSP Slices | 1,200 |
| PCI Express® | 1x Gen3x8 |
| AMS - System Monitor | 1 |
| Max. Single-Ended HD I/Os | 96 |
| Max. Single-Ended HP I/Os | 208 |
| GTY Transceivers | 12x, Maximum 16.3 Gb/s |
| Chip Level | Industrial Grade |
| Speed Grade | -2 |
| Working Temperature | -40℃ ~ +85℃ |
SOM Features

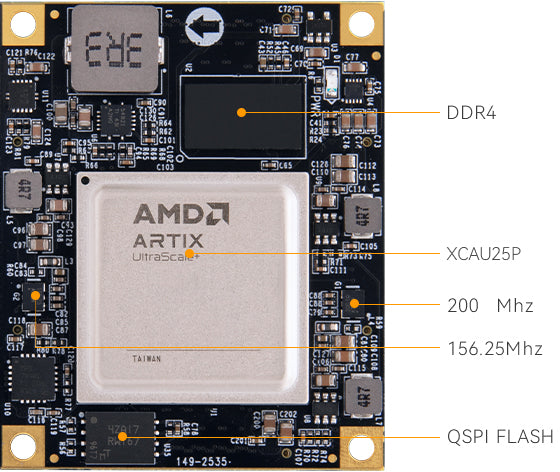

| RAM | DDR4, 1GB, 16bit Bus, 2400Mbps |
| QSPI FLASH | 1x 32MB, for user data storage |
| HD IOs | 72 |
| HP IOs | 102 |
| LVDS | 48 |

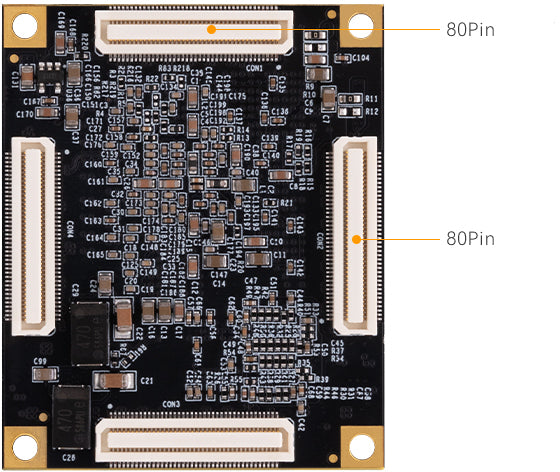

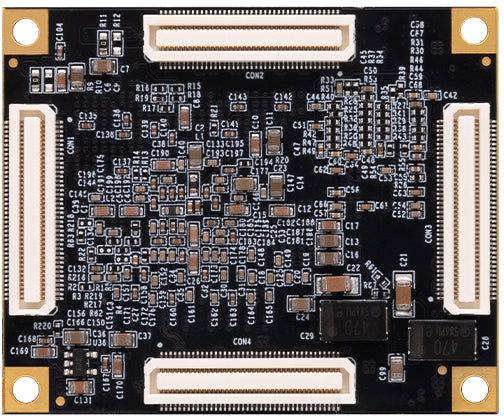

| Board-to-Board connectors | 4x 80-pin Panasonic Industrial Grade Connectors (AXK580137YG), matching connector on the carrier board is AXK680337YG |
| Active Crystal Oscillator | 1x Differential 200MHz provide for FPGA and DDR4 1x Differential 156.25MHz for the GTY |
| LEDs | 1x Power Indicator (PWR) |
| Push Buttons | - |
| JTAG | - |
Power Supply
Voltage Input: +12V, via Board-to-Board connectors
What's Included
| FPGA Board | 1 |
Dimensions

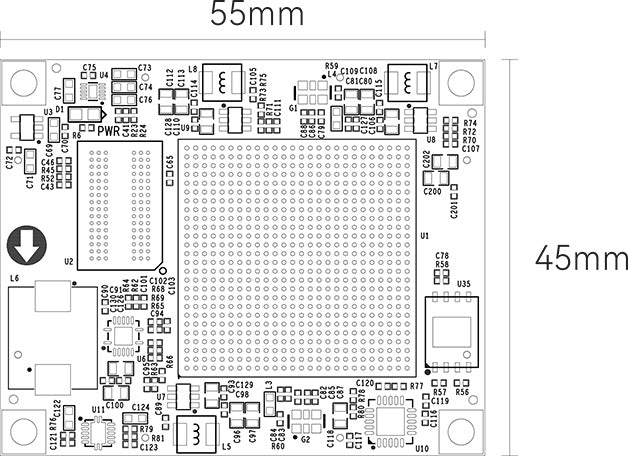

| Dimension | 55.0mm x 45.0mm x 6.8mm |
| Connector Mated height | 3.0mm |
| PCB | 14 Layer, Independent GND and Power Layers |
Resources & Downloads
Full documentation including Schematics, Demo projects (if applicable) will be provided by CodeRobin.
