Description
AMD Zynq™ UltraScale+™ RFSoCs - The Industry’s Only Single-Chip Adaptable Radio Platform
AMD Zynq™ UltraScale+™ RFSoC Gen 3:Source: https://www.amd.com/en/products/adaptive-socs-and-fpgas/soc/zynq-ultrascale-plus-rfsoc.html
- Quad-core Arm Cortex-A53 MPCore up to 1.33 GHz
- Dual-core Arm Cortex-R5F MPCore up to 533 MHz
- 16nm FinFET+ Programmable Logic
- Soft-decision forward error-correction cores (SD-FEC)

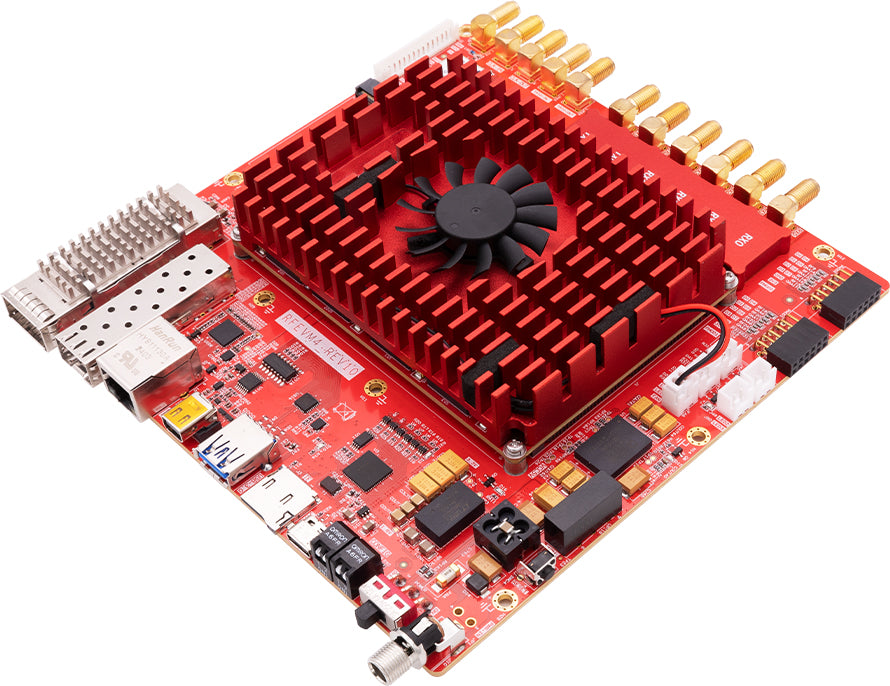

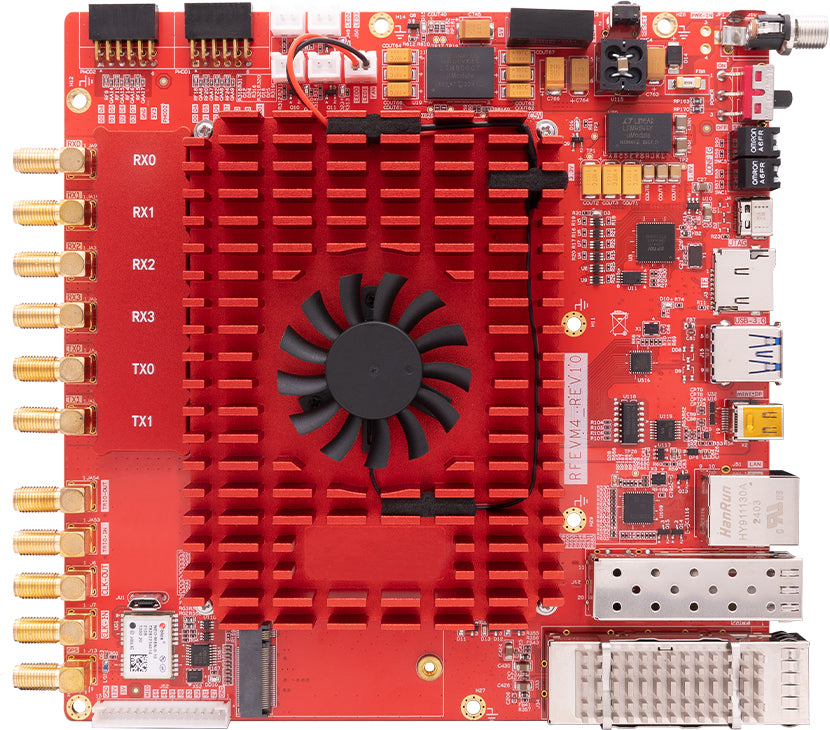

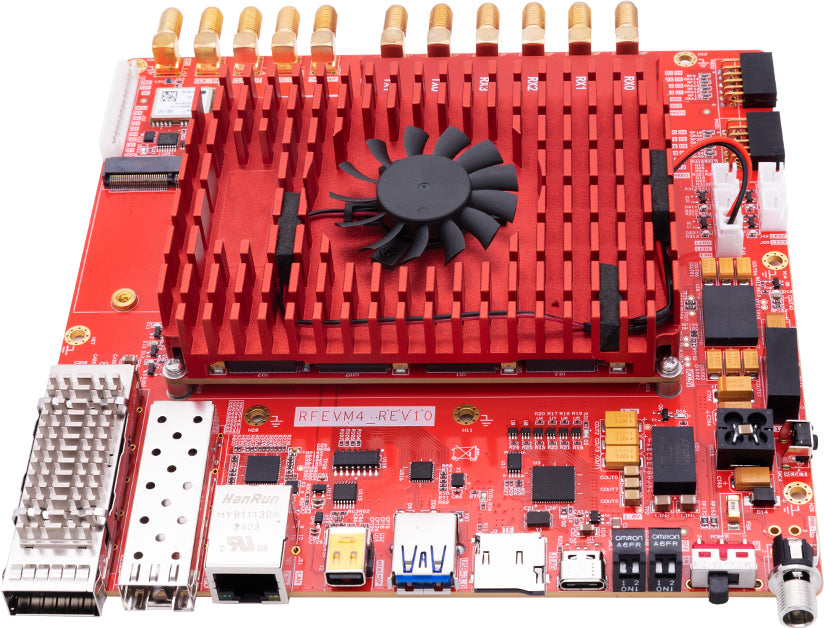

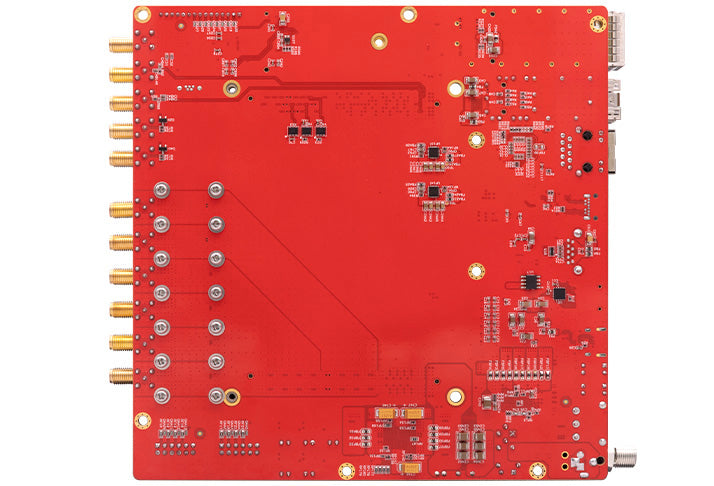

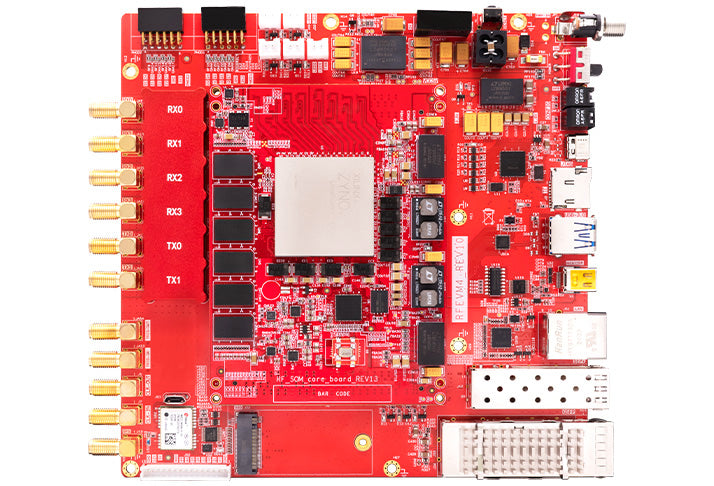

AXRF67 is a compact Mid range SDR board with XCZU67DR FPGA, equipped with 8×14-bit 2.95GSPS RF-ADCs, 8×14-bit 10GSPS RF-DACs, 6GB DDR4, 1x QSFP28, 1x SFP+, GPS, 2T4R RF SMA ports, direct RF sampling below 7.125GHz, 9~40V wide‑voltage input. Ideal for 5G, Radar, Satellite, and Wideband.
Ideal for:
- 5G and LTE Wireless
- Remote-PHY for Cable Access DOCSIS 3.1
- Phased Array Radar/Digital Array RADAR
- Test & Measurement
- Satellite Communications
The SOM model is ACRF67. Also check out our AXRF49 with XCZU49DR.
FPGA Specification
| SOM | ACRF67 |
| FPGA | XCZU67DR-2FFVE1156I |
| 14-bit RF-ADC w/DDC | 8x, Max Rate (GSPS) 2.95 2x, Max Rate (GSPS) 5.9 |
| 14-bit RF-DAC w/DUC | 8x, Max Rate (GSPS) 10 |
| Digital Front-End Hard IP (DFE IP) | Channel Filter, DUC/DDC, Mixer, CFR, Complex Equalizer, PQ Resampler, DPD |
| Low PHY Hard IP | FFT/iFFT, PRACH |
| Number of DDCs per RF-ADC | 1 |
| RF input Freq max. GHz | 7.125 |
| Decimation / Interpolation | 1x, 2x, 3x, 4x, 5x, 6x, 8x, 10x, 12x, 16x, 20x, 24x, 40x |
| Processors | 4x ARM Cortex-A53, 1.3GHz 2x ARM Cortex-R5F, 533MHz |
| High-Speed Connectivity | 4 PS-GTR; PCIe Gen1/2; Serial ATA 3.1; DisplayPort™ 1.2a; USB 3.0; SGMII |
| General Connectivity | 214 PS I/O; UART; CAN; USB 2.0; I2C; SPI; 32b GPIO; Real Time Clock; Watchdog Timers; Triple Timer Counters |
| GTY | 8x |
| Chip Level | Industrial Grade |
| Speed Grade | -2 |
| Working Temperature | -40℃~85℃ |
| System Logic Cells (K) | 489 |
| CLB LUTs (K) | 224 |
| Max. Dist. RAM (Mb) | 6.8 |
| Total Block RAM (Mb) | 22.8 |
| UltraRAM (Mb) | 45.0 |
| DSP Slices | 1,872 |
| 1.8V High-Performance (HP) I/Os | 130 |
| 3.3V High-Density (HD) I/O | 24 |

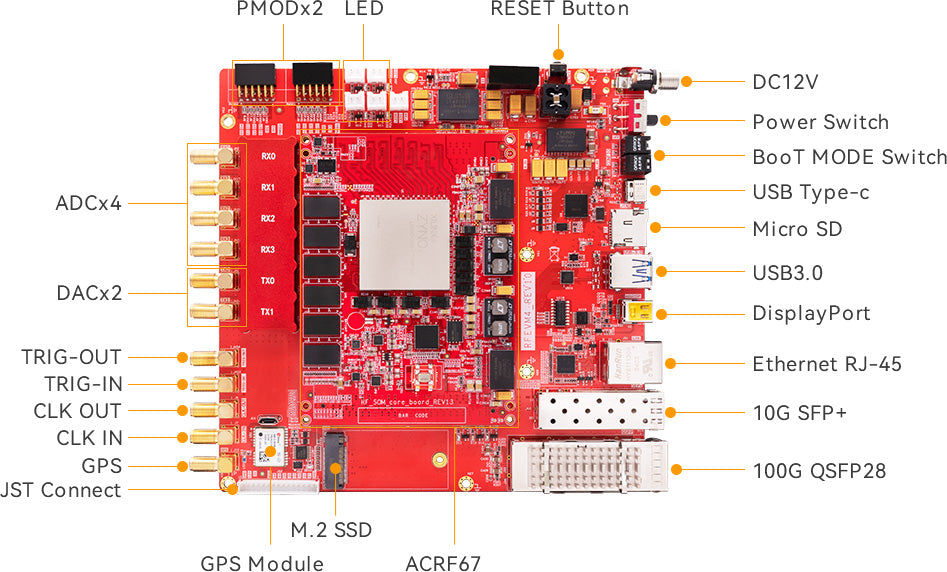

Board Features
| DDR4 | PS: 4x 1GB DDR4, total 4GB, 64bit Bus, Data Rate 2400Mbps PL: 2x 1GB DDR4, total 2GB, 32bit Bus, Data Rate 2400Mbps |
| QSPI FLASH | 2x 512Mbit, for user data storage |
| QSFP28 | 1x |
| SFP+ | 1x |
| SMA | 4x, RF-ADC 14bit max 2.95GSPS 2x, RF-DAC 14bit max 10GSPS |
| SMA | 5x, CLK IN/OUT, GPS, TRIG IN/OUT, |
| M.2 | 1x NVME M.2 (PCIEx1), for M.2 SSD storage |
| USB 3.0 | 1x USB3.0, (Type-A, HOST, SLAVE), for external USB devices |
| USB JTAG / UART | 1x Type-C, UART for serial communication with PC or devices JTAG for Programs Debug and Download |
| Ethernet Interface | 1x 10/100/1000M Ethernet with RJ45 for data exchange |
| DisplayPort | 1x mini DisplayPort, support VESA DisplayPort V1.2a |

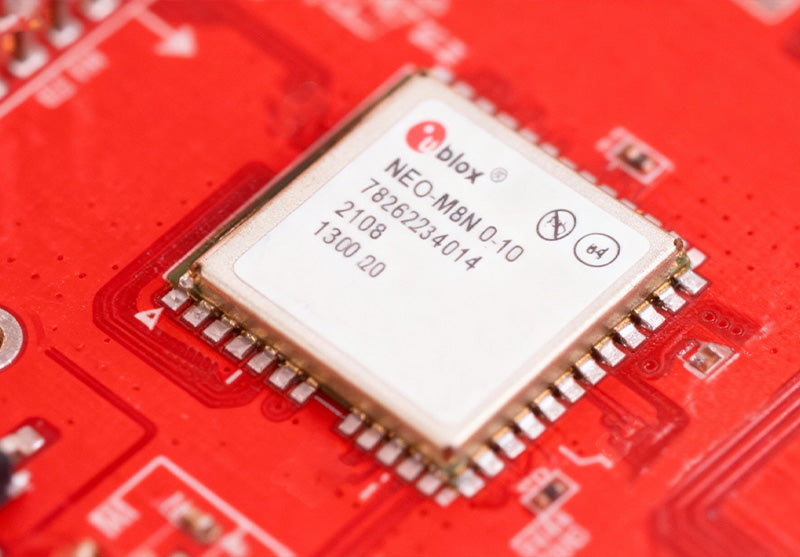

| GPS | 1x NEO-M8N |
| Active Crystal Oscillator | 1x Single-ended 33.3333MHz provide PS Clock 1x LMK04828 for the PL Logic, DDR Reference, GTY |
| Expansion Port | 2x 8-pin PL I/O (PMODx2); 1x 10-pin PS I/O (JST) |
| EEPROM | 1x AT24CM01 with IIC |
| SD Card Slot | 1 micro SD Card Slot, support SD Mode and SPI Mode |
| Real Time Clock | 1x Built-in RTC |
| LEDs | SOM: Carrier: 4x User |
| Push-Buttons | 1x Reset |
Power Supply
Voltage Input: +9 ~ +40 V DC, Barrel plug
Minimum Input Power: 90W
What's Included
| FPGA Board | 1 | DC Fan (installed) | 1 |
| USB to Type-C cable | 1 | 12V Power Adapter | 1 set |
| SMA Cable | 4x 20cm; 2x 50cm | 5G Omnidirectional Antenna and base | 4x |
| SD Card | 1x 32GB | SD Card Reader | 1 |
Dimensions

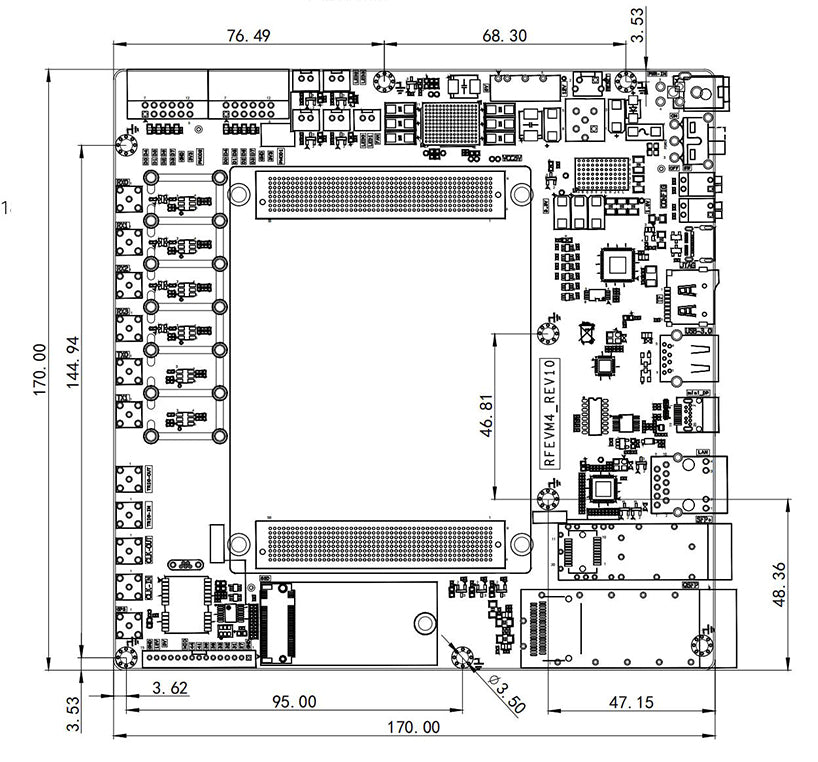

| Dimension | 170.00 mm x 170.00 mm (Carrier Board) 115.00 mm x 85.00 mm (SOM) |
| PCB | - Layer (Carrier Board) 14 Layer (SOM) Independent GND and Power Layers |
Resources & Downloads
AXRF67 User Manual (PDF, Simplified Chinese)
Full documentation including Schematics, Demo projects (if applicable) will be provided by CodeRobin.
