Description
AMD Zynq™ UltraScale+™ RFSoCs - The Industry’s Only Single-Chip Adaptable Radio Platform
AMD Zynq™ UltraScale+™ RFSoC Gen 3:Source: https://www.amd.com/en/products/adaptive-socs-and-fpgas/soc/zynq-ultrascale-plus-rfsoc.html
- Quad-core Arm Cortex-A53 MPCore up to 1.33 GHz
- Dual-core Arm Cortex-R5F MPCore up to 533 MHz
- 16nm FinFET+ Programmable Logic
- Soft-decision forward error-correction cores (SD-FEC)

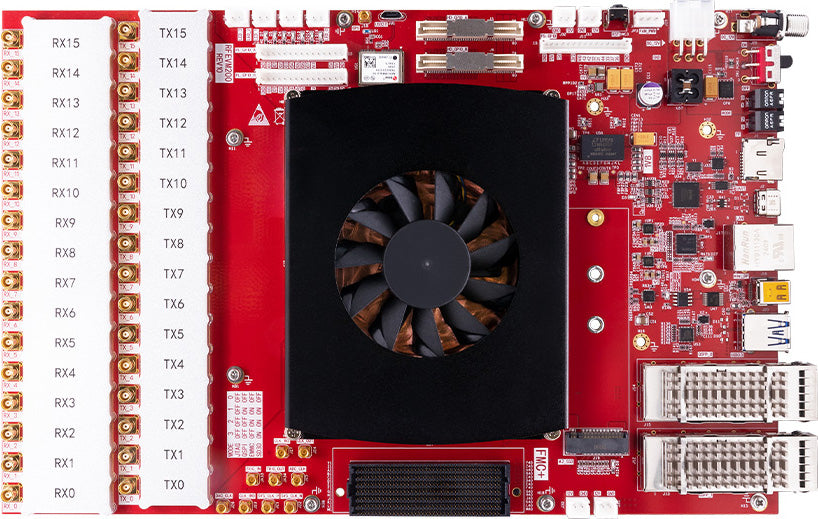

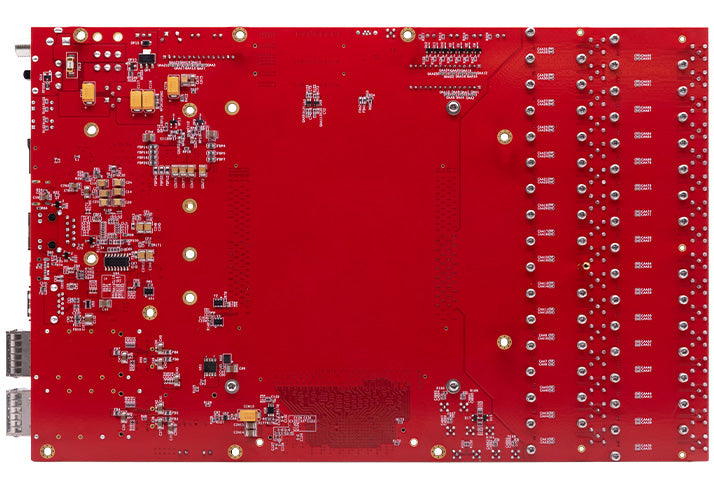

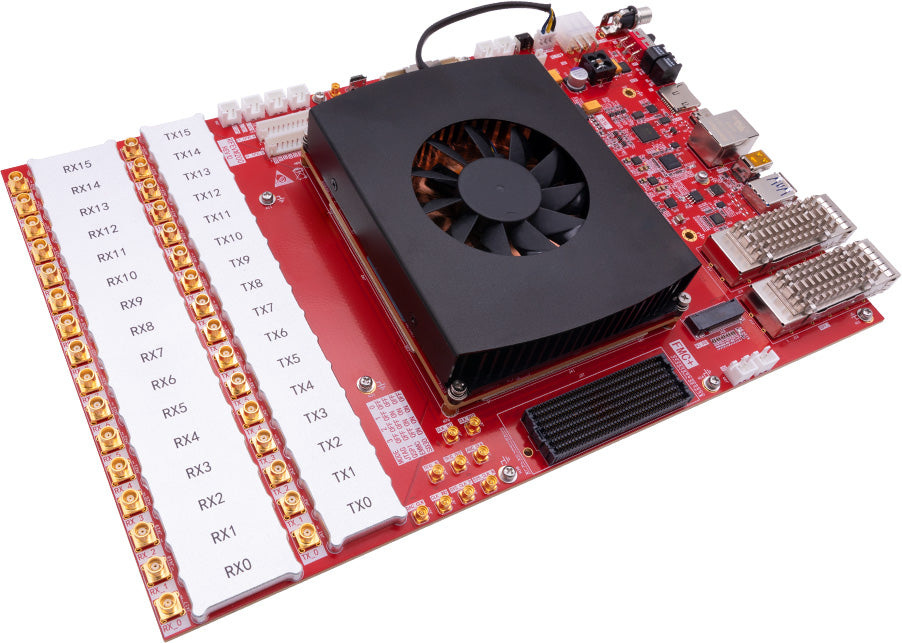

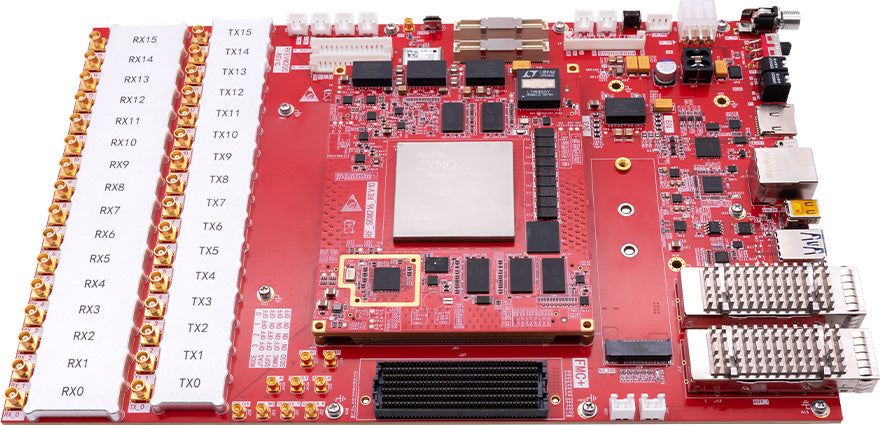

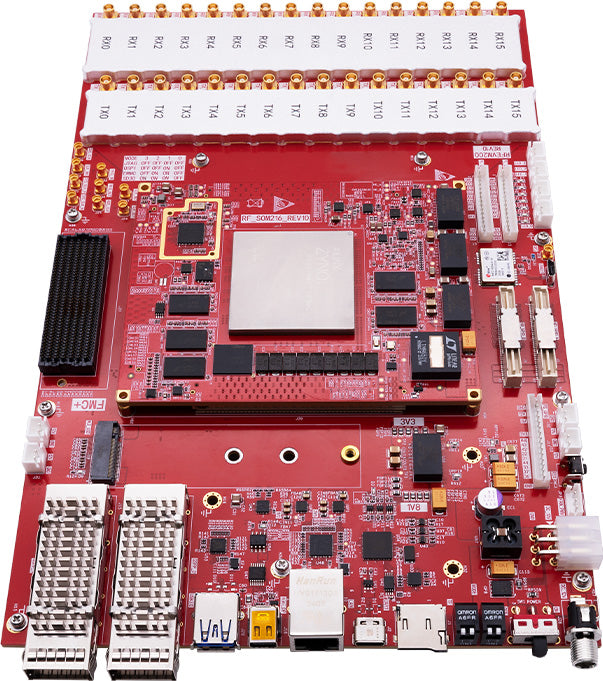

AXRF49 is a High-End SDR board with XCZU49DR FPGA, equipped with 16×14-bit 2.5GSPS RF-ADCs, 16×14-bit 9.85GSPS RF-DACs, 10GB DDR4, 2x QSFP28, 1x FMC+, GPS, 16T16R RF MCX ports, built for direct RF processing. Ideal for 5G, Radar, Satellite, and Test and Measurement.
Ideal for:
- 5G and LTE Wireless
- Remote-PHY for Cable Access DOCSIS 3.1
- Phased Array Radar/Digital Array RADAR
- Test & Measurement
- Satellite Communications
The SOM model is ACRF49. Also check out our AXRF67 with XCZU67DR.
FPGA Specification
| SOM | ACRF49 |
| FPGA | XCZU49DR-2FFVF1760I |
| 14-bit RF-ADC w/DDC | 16x, Max Rate (GSPS) 2.5 |
| 14-bit RF-DAC w/DUC | 16x, Max Rate (GSPS) 9.85 |
| Number of DDCs per RF-ADC | 1 |
| RF input Freq max. GHz | 6 |
| Decimation / Interpolation | 1x, 2x, 3x, 4x, 5x, 6x, 8x, 10x, 12x, 16x, 20x, 24x, 40x |
| Processors | 4x ARM Cortex-A53, 1.333GHz 2x ARM Cortex-R5F, 533MHz |
| High-Speed Connectivity | 4 PS-GTR; PCIe Gen1/2; Serial ATA 3.1; DisplayPort™ 1.2a; USB 3.0; SGMII |
| General Connectivity | 214 PS I/O; UART; CAN; USB 2.0; I2C; SPI; 32b GPIO; Real Time Clock; Watchdog Timers; Triple Timer Counters |
| GTY | 16x |
| Chip Level | Industrial Grade |
| Speed Grade | -2 |
| Working Temperature | -40℃~85℃ |
| System Logic Cells (K) | 930 |
| CLB LUTs (K) | 425 |
| Max. Dist. RAM (Mb) | 13.0 |
| Total Block RAM (Mb) | 38.0 |
| UltraRAM (Mb) | 22.5 |
| DSP Slices | 4,272 |
| 1.8V High-Performance (HP) I/Os | 312 |
| 3.3V High-Density (HD) I/O | 96 |

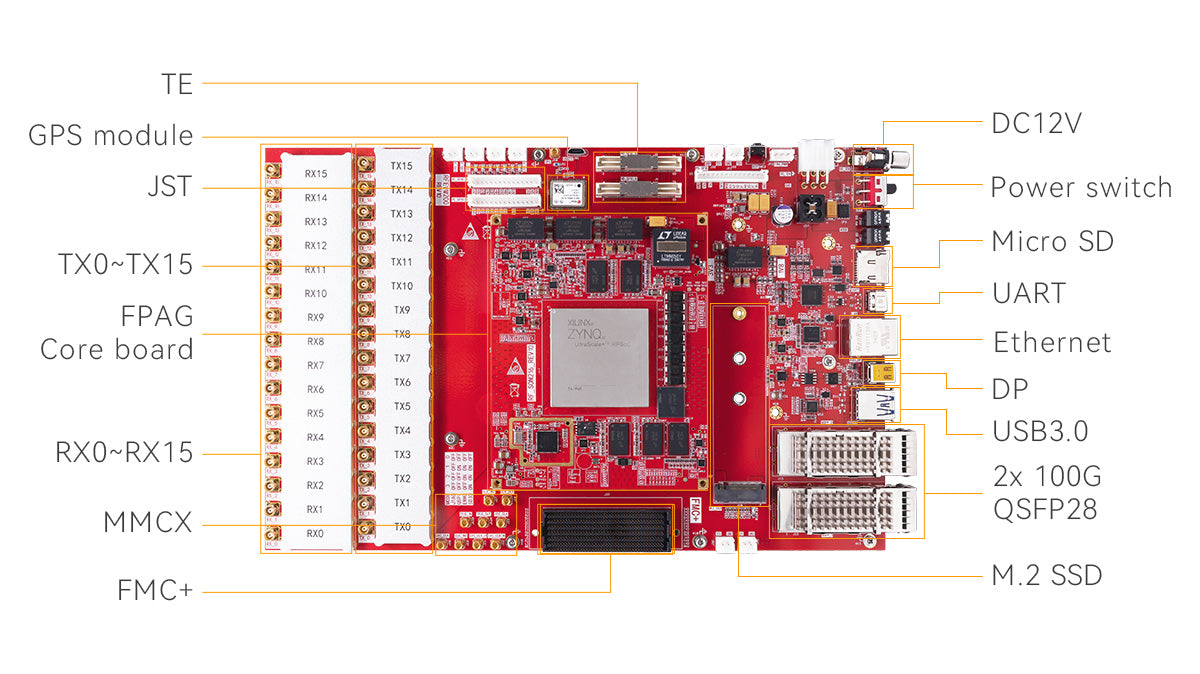

Board Features
| DDR4 | PS: 5x 1GB DDR4, total 5GB ECC, 64bit Bus, Data Rate 2400Mbps PL: 5x 1GB DDR4, total 5GB, 72bit Bus, Data Rate 2666Mbps |
| QSPI FLASH | 2x 512Mbit, for user data storage |
| eMMC | 1x 8GB |
| QSFP28 | 2x |
| M.2 | 1x NVME M.2 (PCIEx2), for M.2 SSD storage |
| DisplayPort | 1x mini DisplayPort, support VESA DisplayPort V1.2a |
| USB 3.0 | 1x USB3.0, (Type-A, HOST, SLAVE), for external USB devices |
| USB JTAG / UART | 1x Type-C, UART for serial communication with PC or devices JTAG for Programs Debug and Download |
| GPS | 1x NEO-M8N |
| FMC+ | 1x FMC+ |
| Ethernet Interface | 1x 10/100/1000M Ethernet with RJ45 for data exchange |
| Active Crystal Oscillator | 1x Single-ended 33.333MHz provide PS Clock 1x LMK04828 for the PL Logic, DDR Reference, GTY |
| Expansion Port | PL I/O: 1x 7-pin, 1x 8-pin ; PS I/O: 1x 8-pin |
| MMCX ports | 9x mmcx: CLK IN/OUT, SYSREF IN, TRIG IN/OUT, ADC/DAC CLK |
| EEPROM | 1x AT24CM01 with IIC |
| SD Card Slot | 1 micro SD Card Slot, support SD Mode and SPI Mode |
| Real Time Clock | 1x Built-in RTC |
| LEDs | SOM: Carrier: 4x User |
| Push-Buttons | 1x Reset |
Power Supply
Voltage Input: +12 V DC, PCIE 6-pin
Current Input: Max. Current 8.5 A
What's Included
| FPGA Board | 1 | DC Fan (installed) | 1 |
| USB to Type-C cable | 1 | 12V Power Adapter | 1 set |
| SMA Cable | 8x | MCX to SMA Cable | 16x |
| MMCX to SMA Cable | 4x | Ethernet Cable | 1x |
| SD Card | 1x 32GB | SD Card Reader | 1 |
Dimensions

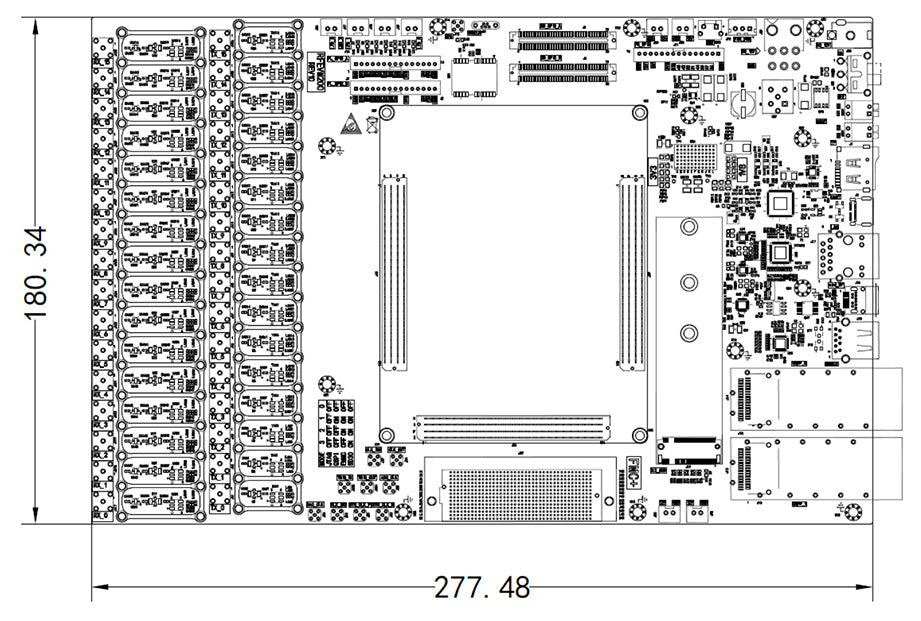

| Dimension | 277.48 mm x 180.34 mm (Carrier Board) 120.00 mm x 95.00 mm (SOM) |
| PCB | Independent GND and Power Layers |
Resources & Downloads
Full documentation including Schematics, Demo projects (if applicable) will be provided by CodeRobin.
