Description

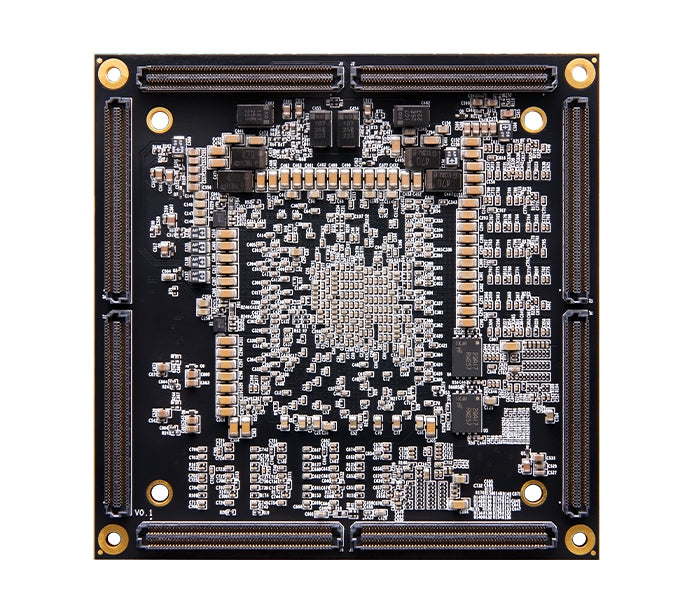

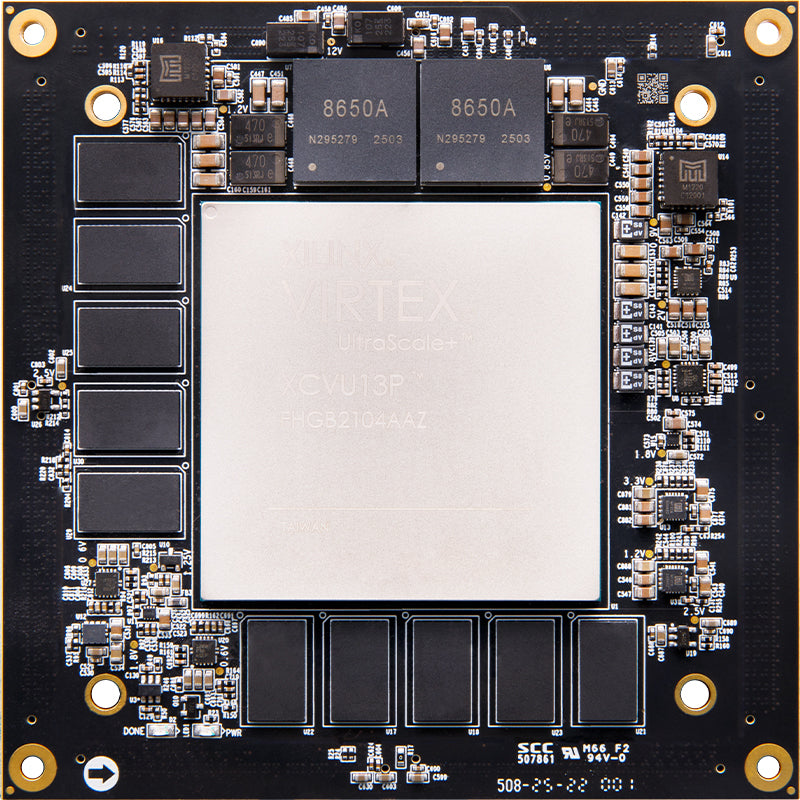

ACVU13 is a top range Xilinx Virtex UltraScale+ FPGA SOM, equipped with XCVU13P, 20GB DDR4 memory, 256MB QSPI Flash, Clock sources, and Power. Through 8x 240-pin I/O connectors on the backside, 76x 28.21 Gb/s GTY Transceivers and 377 HP I/O are exposed, great for your Industrial applications.
We have the following Carrier Board designed for this SOM:
- AXVU13G: 2x 200G QSFP-DD, 7x 100G QSFP28, 1x FMC+, 1x FMC
- HEA13: 4x 100G QSFP28, 2x FMC+, Nvidia Jetson Thor T5000 128GB Module
FPGA Specification
| FPGA | XCVU13P-2FHGB2104I |
| Speed Grade | -2 |
| Chip Level | Industrial Grade |
| Working Temperature | -40℃~85℃ |
| System Logic Cells (K) | 3,780 |
| CLB Flip-Flops (K) | 3,456 |
| CLB LUTs (K) | 1,728 |
| Max. Distributed RAM (Mb) | 48.3 |
| Total Block RAM (Mb) | 94.5 |
| UltraRAM (Mb) | 360.0 |
| DSP Slices | 12,288 |
| Peak INT8 DSP (TOP/s) | 38.3 |
| PCIe® Gen3 x16 | 4 |
| 150G Interlaken | 8 |
| 100G Ethernet w/ KR4 RS-FEC | 12 |
| GTY 28.21 Gb/s Transceivers | 76 |
| Max. Single-Ended HP I/Os | 702 |
SOM Features

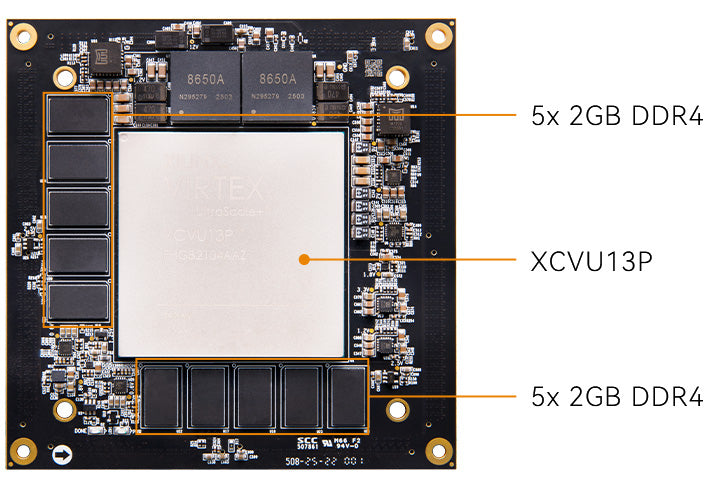

| DDR4 | 2 Groups of 5x 2GB, total 20GB, 80bit Bus, Data Rate 2666Mbps |

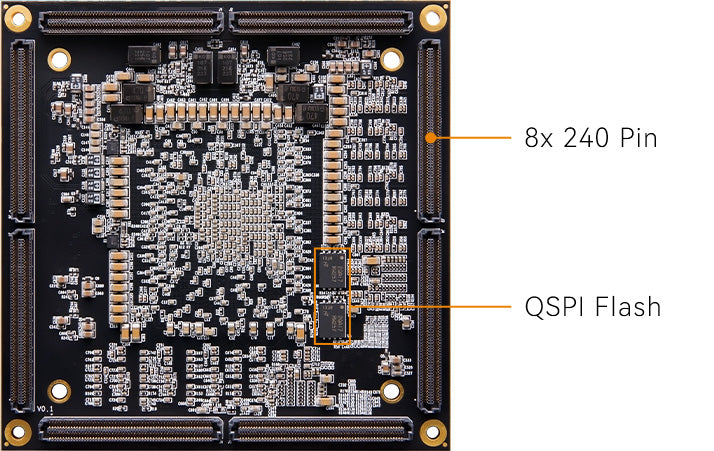

| QSPI Flash | 2x 128MB, for FPGA bin file and user data storage |
| Crystal Oscillator | 2x 200MHz Differential Crystal, Reference Clock for the FPGA and DDR4 |
| Board-to-Board connectors | 8x 240-pin Samtec Industrial Grade Connectors (), matching connector on the carrier board is ADM6-60-01.5-L-4-2-A-TR |
| LEDs | 1x DONE, 1x User |
| Push Buttons | - |
| JTAG | - |
Power Supply
Voltage Input: +12V, via Board-to-Board connectors (J2)
What's Included
| FPGA Board | 1 |

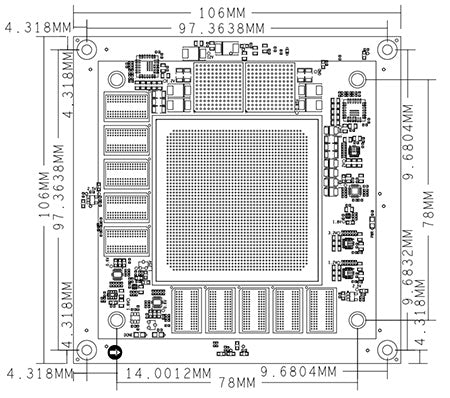

Dimensions
| Dimension | 106.0mm x 106.0mm |
| Connector Mated height | - |
| PCB | Independent GND and Power Layers |
Resources & Downloads
ACVU13 User Manual (PDF, Simplified Chinese)
Full documentation including Schematics, Demo projects (if applicable) will be provided by CodeRobin.
